Can a 2x4 span 10 feet?

A 2×4 can span a maximum of 6' 7” when spaced 16” apart and used as a floor or deck joist. When used as a ceiling joist or a roof rafter, a 2×4 can span up to 7' 3” spaced at 16”, and 6' 4” when spaced 24” apart. Due to the small spans of 2x4s, they often are not used in horizontal load-bearing capacities.

What size lumber Do I need to span 10 feet?

2-grade 2×6 joists can span up to 10 feet 9 inches from beam to beam when spaced the standard 16 inches apart with a maximum live load of 30 inches per square foot.

What is the maximum span for a 2x4?

Depending on various factors, a 2×4 floor or deck joist can span a maximum of 6' 7” at 16” spacing or 7'11” at 12” spacing. A 2×4 ceiling joist with 16” spacing has a max span of 7' 3” and with 24” spacing, the max span is 6” 4”.

How many feet can you span with a 2 by 10?

How Far Can a 2×10 Beam or Header Span? A 2×10 beam – made up of two 2x10s nailed together – can span up to 11' without support beneath a deck that is 4' wide. For a more normal-sized deck, the same beam can span 8', supporting a deck that is 8' wide.

What size floor joist do I need to span 10 feet?

What size floor joist to span 10 feet:- as per general rules and guideline, a 2×6 (2-by-6) size of floor joists made of southern yellow pine, graded as #1 can allows joist spans up to 10 feet for a live load of 30 pounds per square foot and dead load of 10 pounds per square foot when spaced 16 inches apart.

How far can a 2x4 span without support?

An interior 2×4 beam – made up of two 2x4s nailed together – can span up to 3' 1” without support beneath a set of joists for a home no greater than 20' wide and supporting no more than 1 floor. For homes that are 28' wide, a double 2×4 can support a span of 2' 8”.

Can 2x4 be used as deck joist?

The short answer is yes. 2x4s can work for deck joists. However, they aren't ideal for spanning long distances without bending or breaking, so you have some limitations. Choosing 2x4s for a low-sitting deck is perfect for keeping your feet out of the mud.

Will a 2x10 span 14 feet?

A #2-2×10 joist can span between 11'-5” and 18'-0”, as a rafter between 13'-9” and 21'-7”, and as a beam 3'-6” and 13'-0” or more. The span depends on spacing, lumber species, and grade, and for a beam, the lamination thickness, as well as numerous other factors.

Can a 2x10 span 12 feet?

Douglas fir 2-by-10 joists graded as "Structural Select" allows joist spans up to 21 feet for a live load of 30 pounds per square foot when spaced 12 inches apart, 19 feet 1 inch for 16 inch spacing and 16 feet 8 inches for 24 inch spacing.

How much weight can a 2x4 joist hold?

A 2×4 can hold up to 40 pounds or 300 pounds when laying on its edge without sagging when laying horizontally. Several factors can lower or increase a 2x4s strength, including wood species, lumber grade, and moisture content.

Can I use 2x4 for roof rafters?

You can use either 2×6 or 2×4 rafters for roofs with a 3/12 pitch or greater, but it depends on the overall size of your shed. For roofs that won't experience heavy snow loads, a gable roof can span up to 22' with 2×4 rafters.

How far can 2x4 trusses span?

The greater the potential for a heavy snow load, the stronger your truss will need to be. For instance, if you live up north with a snow load of 55 pounds per square foot, then a 4/12 common truss using all 2×4 lumber can span up to 41'. That same truss can span 46' when built for areas with a snow load of 40 psf.

What size beam do I need for a 12 foot span?

Thus, for a 12 foot span, you will need atleast 3-2×10 or 6×10 size of wood beam. For a 12-foot spans, the wood beam has to be at least 10 inches in depth and 6″ in width (3-2×10) used for residential building, wood frame structure or projects.

Can a 2X6 span 8 feet?

Double 2×6 Beam Span

For joist spans of 8' or less, the beam span is 5'11” and 4'-8” respectively, and 5'-4” and 4'-2” if the span is 10' or less. A double 2×6 header can span between 2'-1” and 6'-0” for exterior walls depending on building width, snow load, number of floors, and location and number of bearing walls.

Can you use 2x10 for load bearing wall?

A double 2×10 or 4×10 size of header made of #2 grade of Douglas fir- larch can allow span upto 7 feet far distance for one floor building and upto 5 feet for 2 floor in load bearing exterior windows & door opening or interior wall when building width is no more than 20 feet wide.

How far can a 2x4 span for a deck?

Decking made of 2x4s or 2x6s can span up to 24 inches. If you will run decking at an angle, you might need to put the joists closer together.

Can I build ground level deck with 2x4?

Can you use 2×4's for a ground-level deck? A ground-level deck can be built from 2×4 if the span is less than 5'8″ (1.72m), using ground contact treated lumber. Under a 2×4 deck, the ground will need to be covered to prevent weed growth through the decking on such a low deck.

Can you use 2x4 for ground level deck?

Deck blocks are a great little invention that are truly your most affordable way of building a small floating deck like you describe. The quick answer is yes you can use 2x4s with deck blocks to support your decking.

What is cheaper trusses or rafters?

Trusses typically cost less than rafters. In fact, prefabricated truss packages will cost about 30-50% less than the materials and labor used to build rafters on-site.

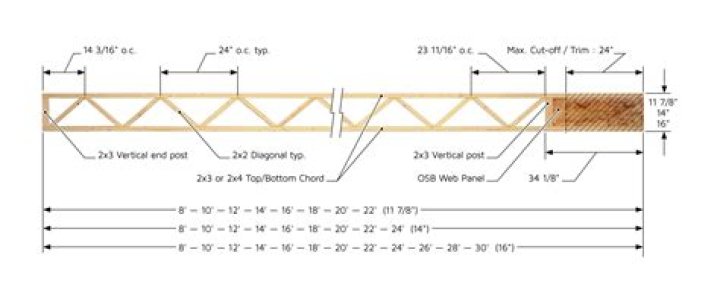

How far can a floor truss span without support?

A floor truss can be designed to span 30 or more feet with ease. The truss manufacturer can build them so strong that there's no bounce to the floor at all. This comes in handy if you desire a tile floor. Tile and grout can crack if installed over wood floors that are springy and bouncy.

How far apart do roof trusses need to be?

Roof trusses should be 24” apart, on center. Trusses are allowed to be closer together, at either 12” or 16” on center, but building codes allow for 24” on center spacing without using heavier duty fasteners for truss to wall connections.

How far can a 2x4 floor joist span?

So, for 2x4 at 12” oc the maximum span is about 7'-6”, which is about the distance you need.

Is a 2x4 stronger on its side?

A 2×4 is stronger on its edge because it is thicker from that direction. Because of that, the amount of weight that a 2×4 can support on its edge is greater. This is true of any 2xs wider than thick (so 2x3s or larger). This is the reason that headers use the edge side to support the load.
