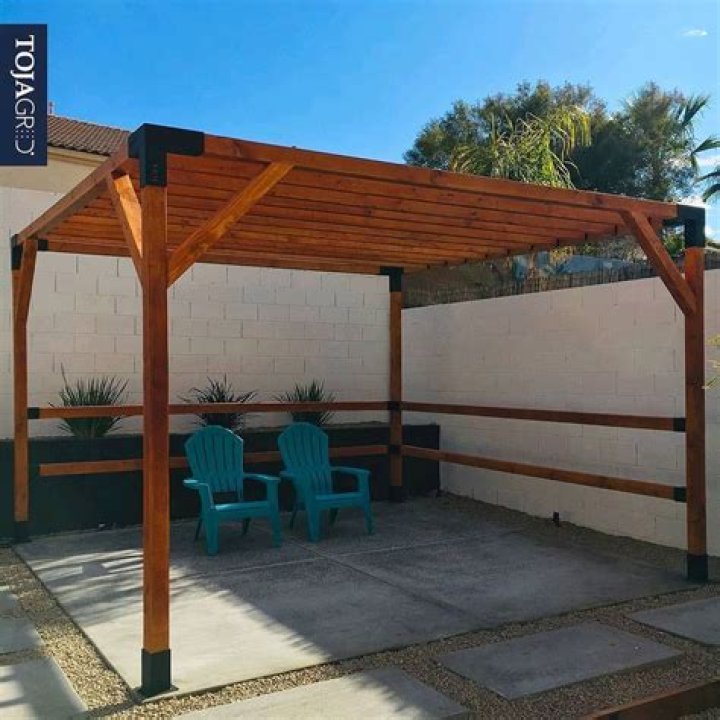

Can you build a pergola with 4x4 posts?

For a very small pergola with only 4 to 6 feet between posts, 4×4 supports will work. For anything larger, though, the 6×6 stock will not only offer a beefier look and greater carrying capacity, but 6×6 also resists the twisting associated with the more spindly 4x4s.

What size of posts should be used for a pergola?

A standard pergola will most often use 6 x 6 inch posts for support. A very small pergola may use 4 x 4 inch posts as long as it has less than 4 to 6 feet between posts. As a general rule of thumb the depth of hole you use for your posts should be approximately 1/4 of the height of your post.

Can you use fence posts for pergola?

There are now 2 different options depending on where you are building your pergola. Adding fence posts into grass or mud! 2) Position your fence post footings in the correct position needed and push down into the soil as much as possible, ensure that he post is level from the top and both sides.

How deep do posts need to be for a pergola?

Dig holes in the locations for the pergola's posts, making each hole at least 12 inches in diameter and the depth of one-third the height of one post. If, for example, each post is 12 feet tall, then make each hole 4 feet deep. In that example, the pergola will be about 8 feet tall.

What kind of wood should I use for a pergola post?

Western Red Cedar and Redwood are the two most commonly used woods for pergolas, aside from pressure-treated wood. Western Red Cedar (WRC) and Redwood are both naturally stunning woods and often lumped together. However, there are a few key differences between the two.

Is it cheaper to build your own pergola?

A DIY pergola usually will cost less than more complex outdoor structures such as patio covers and gazebos, yet more than arbors and trellises. As with any DIY home project, you pay only for the materials, not for the labor. One exception may be with the paving.

How long do cedar pergolas last?

With limited maintenance, expect a wood pergola to last about five years. You can improve its lifespan to 10 to 12 years with annual cleaning, staining or sealing.

Do pergola posts need footings?

A pergola doesn't need footings or concrete to support itself, but its posts will need to be buried into the ground or anchored with heavy-duty concrete anchor bolts to prevent them from toppling over in high winds.

Do pergolas require footings?

Pergolas require a minimum of three and usually four or more footings. Digging three or four holes will take you at least two or three hours depending on the soil type.

How do I make sure my pergola posts are square?

The easiest way to ensure a pergola is square is to use the 3-4-5 Method. To be certain two lines are 90° to each other, measure 3 feet on one line and place a mark. Then measure the other line 4 feet and make a mark. Measure diagonally between the two places you have marked.

Is 4x4 strong enough for pergola?

Support Posts

For a very small pergola with only 4 to 6 feet between posts, 4×4 supports will work. For anything larger, though, the 6×6 stock will not only offer a beefier look and greater carrying capacity, but 6×6 also resists the twisting associated with the more spindly 4x4s.

How tall should a pergola be UK?

height must be no greater than 2.5m (8' 2") Further away from the boundary it can be 3m (9' 10"). A pitched-roof structure (A-shaped roof) can be up to 4m high (13')

How tall should a pergola be?

How Tall Is A Standard Pergola? The standard pergola height is 8 to 12 feet. But that doesn't always have to be the case. For example, if you want an 8-foot head clearance, the beams will take it up to 9 feet at least, and then the rafters will total 10-feet easy.

How far can a pergola beam span without support?

Although it depends on the species and grade of wood. As per thumb rule, for a pergola beam, 2″×12″ size timber you can span it upto 20 feet, 2×10 can span upto 16 feet, 2×8 can span upto 12 feet, 2×6 can span upto 10 feet and 2×4 can span upto 6 feet.

What is the maximum distance between pergola posts?

There's not quite enough information here to give a definitive answer, but for decks, a rule of thumb is when supporting joists that span 12 feet, a double ply beam can span in feet a value equal to its depth in inches. Thus, a double 2x12 beam could span 12 feet - with 20' beams, posts at 10' might look the best.

How wide are pergola rafters?

The size of the pergolas rafter

Usually, there are dimensions 2 inches into 6 inches. Also, they can be 2 inches into 8 inches and 1.5 inches into 7.25 inches. You can choose the length of the rafters as much as you like.

Does a pergola need to be on concrete?

Pergolas & pavilions:

Since pergolas and pavilions have no base, they need to be attached to either a concrete foundation or continuous post footings that anchor the structure.

How do you install pergola posts in concrete?

The easiest method of installation is to dig footings to the correct depth (below the frost line in your area) and use post mounting hardware to attach the posts to the concrete footings or existing concrete slab as follows: Order the 8 foot or 10 foot post option and add the post attachment hardware to your order.

Can you build a pergola on pavers?

A properly fitted pergola will last forever but it will need to be placed and installed properly. Different ground types such as concrete, soil, or a paver patio require different techniques but for this how-to, we will focus on paving stones: Marking. Posting and anchoring.

How much concrete do I need for a pergola post?

For 6×6 pergola posts, 12” concrete forms are recommended. Also, check your zone for the freeze depth to determine how deep your concrete support needs to be. In our zone, this is 30” deep. Use a hand saw to cut the 12” concrete form to size.

Can cedar be left untreated?

Left untreated, cedar shakes — individual planks of one of several varieties of cedar — will discolor and begin to soften, with a possibility of rot after about five years, depending on the climate. There are several options for covering cedar siding, including stain, a clear treatment or paint.

What type of pergola is best?

Vinyl Pergolas

In many ways, vinyl is the best pergola material as it will last a lifetime with only minimal maintenance on your part. However, all of these advantages come at a price — vinyl pergolas are the most expensive choice on the market. Pros: Standout scene-stealing quality.

Are pergolas worth it?

A pergola extends your living space and increases the amount of time you can spend outside. Designed and oriented correctly on your lot, a pergola can cast enough light shade to make even a warm afternoon enjoyable or if you still need additional protection, you can install a retractable shade cover for more shade.

Do pergolas add value to home?

Here's what we tell our customers: yes, a pergola will add market value to any house. Since outdoor living has become more popular than ever, the value of properties with a pergola or a comfortable outdoor space has been on the rise. A safe gauge for a deck or backyard improvement is about 50% — 80% for your ROI.
