Can you cut and join RCA cables?

RCA cables are a ubiquitous part of home audio and video systems. RCA audio and video cables can split, fray or short out over time. Splicing good sections of cable together is an efficient way to repair old cables and get them back in action.

Can you cut and shorten RCA cables?

Step 1: Cut your cable to the length you need. Mine had a plastic square at each end to prevent splitting the wire all the way, so I used those as the centres. Step 2: strip the outside off of the wire. This will expose a central wrapped wire, and a lot of thinner wires all the way around.

Can you repair a broken RCA cable?

RCA cables are a common cable type used in home audio and video systems. You can save money and extend the life of your RCA cables by taking a few moments to make your own repairs. Accomplishing the task does not require a great deal of technical skill, just a bit of experience using a wire stripper and solder gun.

Can you solder RCA cables?

Take the positive lead of the wire (colored red) and hold the bare wire against the center pin of the RCA connector. Press the soldering iron's tip against the wire and pin until it is hot enough so that solder pressed against the pin and wire flows around them.

How do I join RCA cables together?

Drop the outer sleeve of the RCA plug over the wire. Hold one wire to the center pin connector, heat them with the soldering iron, and then apply a small bead of solder. Repeat with the second wire and the ring connector. Then, slide the outer sleeve up over the innards of the connector and snap or screw it into place.

How many wires does an RCA cable have?

Many cables have 4 conductors. If this is the case, just twist the common colors together. Coat or tin the conductor ends. Applying a small amount of solder to the twisted ends keeps them together and it easier to connect them to the RCA end.

How do you solder a plug?

Solder the Wires

Touch the heated tip of the soldering gun to the wire joint. Hold the tip firmly in place for a few seconds to heat up the wire. Touch the exposed end of solder lightly to the wire joint. The heat should cause the solder to instantly melt and draw into the meshed strands.

How do you fix a broken RCA?

How to Fix a Broken RCA Input

1. Unplug the device from its power source. ...
2. Turn the device over onto the top and examine the bottom panel for screws. ...
3. Examine the two wires leading to the RCA input. ...
4. If the wire is frayed, cut out the frayed section, then remove 1/4 inch of insulation back from the cut.

How can I tell if my RCA cables are bad?

If the right side of the amplifier starts to play, then you know the right side of the RCA cable is good. Move the cable around a little on both ends to make sure that the cable is not intermittently defective. If the sound doesn't cut out, we will assume that the right side of the cable is indeed OK.

How do you cut an RCA cable?

How to Splice an RCA Cable

1. Cut the two ends of RCA cable you want to splice together so that both are clean cuts with no frayed wire. ...
2. Cut a 1 1/2-inch length of heat shrink and slip it over one end of the cable.
3. Strip the outer insulation from both ends, exposing about 3/4 inch of the outer layer of wires.

Which wire in RCA is positive?

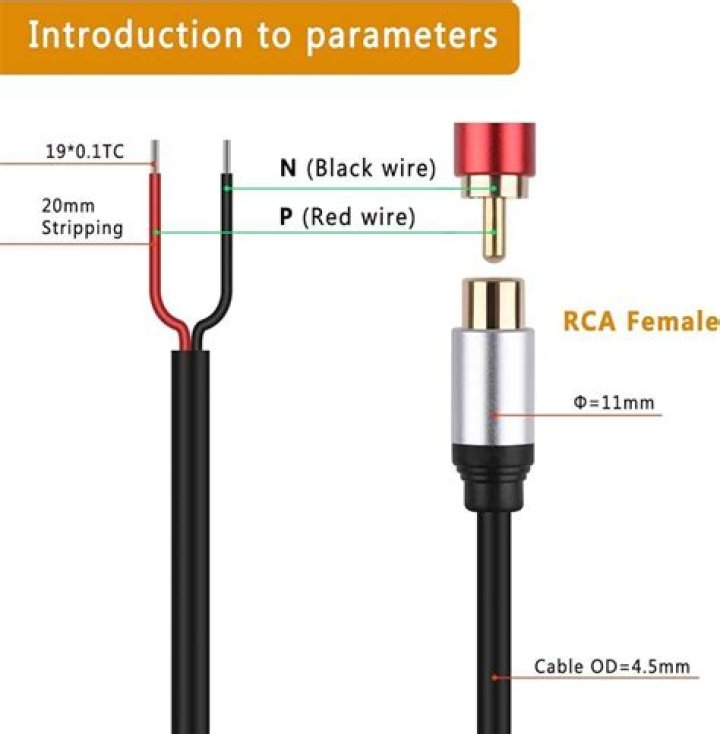

RCA cables are coaxial cables, meaning that each cable has a positive conductor (inner) and negative conductor (outer).

What is the yellow RCA cable for?

They are often color-coded, yellow for composite video, red for the right audio channel, and white or black for the left channel of stereo audio.

Do RCA cables need to be grounded?

Do I need to ground RCA cables? The short answer is no. RCA cables are already balanced and grounded by nature of their design. The three-wire cable includes two signal wires and one ground wire, all of which are sheathed in a cylindrical shield that is also grounded.

How do RCA connectors work?

A simple RCA cable has three color-coded plugs extending from one end that connects to three corresponding colored jacks on the back of a TV, projector, or another output device. It carries audio and video signals from the component device to the output device (i.e. a television or speakers).

Can you splice audio cable?

There are a couple of ways to splice speaker wires. One way is to twist speaker wires together and use electrical tape. However, tape wears out over time, and the smallest tug on the wires can separate the connection. The better option is an in-line electrical crimp connector (also known as a "butt" connector).

Can you connect RCA to speaker wire?

RCA Cable Polarity

When you're attaching the speaker wire to RCA plugs, you can connect either the marked or the unmarked side of the wire to the pin, whichever makes sense for you. As long as you do all the wires the same way, they'll have the same polarity.

How do you split speaker wires?

Both styles require only a few tools to separate the wires.

1. Measure the distance between left and right speaker jacks. ...
2. Grab the speaker wire end. ...
3. Strip 1/4-inch of plastic coating from the two strands of wire using the wire stripper. ...
4. Twist one strand of the bare wire end until it is rope-like in appearance.

Do RCA cables go to input or output on amp?

RCA cables and speaker wire. Amp wiring kits often don't include signal wiring. Your amplifier gets its input signals from the receiver's output typically via RCA cables.
