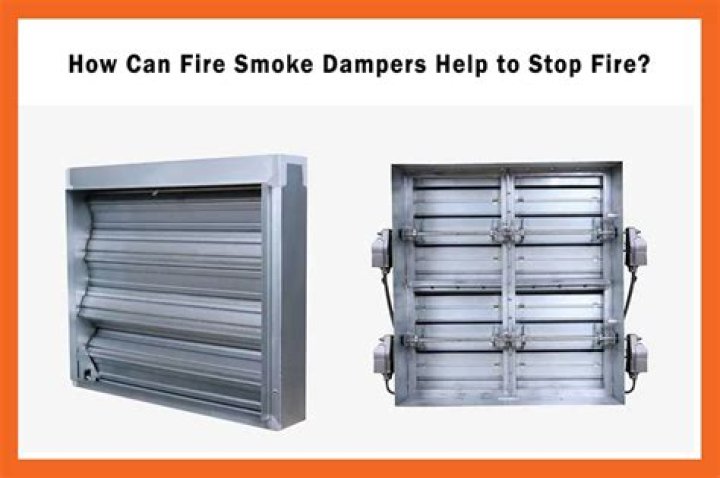

Do fire dampers stop smoke?

Whilst fire dampers function to help stop the passage of fire, smoke dampers work in a similar way to preserve the integrity of physical smoke barriers e.g. floors and walls. They can also be found within air conditioning and ventilation ductwork.

What do smoke fire dampers do?

Fire dampers are provided with an hourly fire rating. Smoke damper's primary function is to control the movement of smoke in dynamic air distribution systems, and they reduce the possibility of smoke transfer within ductwork or through wall openings.

What is a fire damper and how does it work?

Fire dampers respond to heat, when the temperature reaches a set point the damper slams shut. Smoke dampers respond to the detection of smoke, and close automatically. They can also be activated remotely. They resist the passage of smoke, toxic gases and air through a fire barrier.

What controls a smoke damper?

Smoke dampers are operated by either a factory-installed elec- tric or a pneumatic actuator. They are controlled by smoke detectors and/or fire alarms.

What is the difference between a fire damper and a fire smoke damper?

Whilst fire dampers function to help stop the passage of fire, smoke dampers work in a similar way to preserve the integrity of physical smoke barriers e.g. floors and walls. They can also be found within air conditioning and ventilation ductwork.

When should fire dampers be used?

Fire Dampers are used in air transfer openings, ducts and other places where fire rated structures (e.g. walls, floors or other fire barriers) are penetrated.

What is the minimum temperature rating for a smoke damper?

All build- ing codes in the USA require smoke dampers to have a minimum elevated temperature rating of 250 °F (140 °C). Leakage Test: The amount of leakage measured during this test shall determine the leakage class of the damper. For smoke dampers the leakage test is a continuation of the operation test.

Are fire dampers required in 30 minute walls?

Where a duct passes through a fire hazard room, but does not serve it, fire dampers are not required but the duct must have fire resistance of 30 minutes in respect to integrity and insulation.

Do fire dampers need to be monitored?

The monitoring of Fire Damper Status is essential for operators in preventing fires and gases from spreading and is particularly important in the protection of safe refuge areas during emergencies. The status of fire dampers can prove critical in the planning of emergency escape routes.

Do smoke dampers need to be on emergency power?

Motorized actuators are normally used for the operation of smoke dampers. The designer must consider the case where there is loss of normal power to the damper actuator. Either emergency power should be provided or smoke dampers should be arranged for fail-safe closure upon failure of power to the actuator.

Where should a fire damper be placed?

Location: Fire dampers are installed in or near the wall or floor, at the point of duct penetration, to retain the integrity and fire rating of a wall or floor whether it is a ducted or open-ple- num return application.

Are fire dampers required in a 1 hour wall?

For 1-hour or less walls, no damper is required where ductwork is minimum 26 gauge and the ducts do no serve the corridor. Non-fire rated wall that is provided to resist the passage of smoke in specific instances.

Where are combination fire smoke dampers required?

Smoke dampers are required where a duct penetrates a smoke partition or barrier within a building, in a corridor penetration AND when any damper performs a function in an engineered smoke control system.

Does a 2 hour fire rated wall require a fire damper?

However, two-hour fire-rated barriers do require fire dampers in fully ducted HVAC systems. Being fully sprinklered or not has no bearing on the requirement for fire dampers. However, it does have a bearing on whether smoke dampers are needed.

Should fire dampers be open or closed?

The fireplace damper should always be in the open position whenever you have a fire in the fireplace. Never close the damper or leave the fireplace unattended while there is a fire in the fireplace. This is not only a fire hazard, it can also cause deadly carbon monoxide poisoning.

What is a combination fire smoke damper?

All combination fire/smoke dampers require factory installed electric actuators. They are controlled by a smoke or heat detector signal, fire alarm or other building control system to prevent the spread of smoke. Manual or automatic override allows the damper to be used as part of an engineered smoke. control system.

Does a fire smoke damper need to be in the wall?

Generally, fire dampers are required where air ducts penetrate walls that are rated for 2-hours or more. They are needed in all air transfer openings (non-ducted) in rated walls, regardless of the rating. And they are required at some, but not all penetrations of rated floor assemblies and shaft enclosures.

Can you fire caulk around a fire damper?

UNDER NO CONDITIONS MAY THROUGH-PENETRATION FIRESTOP CAULKS OR PUTTYS BE USED TO SEAL DAMPER RETAINING ANGLES unless SPECIFICALLY APPROVED by the damper manufacturer.

Is drywall fire resistant?

All drywall is fire-resistant to some degree. Also called gypsum board, ordinary drywall panels are made of a layer of soft, non-flammable mineral called gypsum pressed between two thick sheets of paper.

How do you install a smoke damper?

Smoke dampers must be installed at or adjacent to the point where the duct passes through the smoke barrier in accordance with NFPA 90A. The maximum installation distance is 24" (610 mm) from the smoke barrier, however, the preferred location of leakage rated smoke dampers is in the smoke barrier.

Are fire dampers required in bathroom exhaust ducts?

1.1, smoke dampers are not required at penetrations of shafts where: 2.1. Kitchen, clothes dryer, bathroom and toilet room exhaust openings are installed with steel exhaust subducts, having a wall thickness of at least 0.019 inch (0.48 mm); and 2.2. That extend at least 22 inches (559 mm) vertically; and 2.3.

How do you fireproof a wall?

One of the most effective ways to add fire resistance to the exterior surface of a wall is to replace relatively flammable exterior wall treatments, such as vinyl or wood siding, with fire-resistant materials, such as brick, concrete or stucco.

Is shiplap fire rated?

Artisan Shiplap Siding, made from fiber cement, resists the effects of weather damage, destruction from mold, and is fire resistant. This siding delivers distinct lines that closely replicate traditional cedar siding to bring authenticity to any home's façade.

Is a firewall required between garage and house?

In short, the garage needs to be separated from the house in case of fire, but this isn't a fire-rated assembly, nor is it a firewall. The best term for this required separation is a fire-separation wall.

Is it OK to leave the flue open overnight?

The smoke from burning wood contains carbon monoxide, so in order to prevent this toxic byproduct from entering your home, it is important to leave the flue open overnight. This enables a draft to carry the compound out into the atmosphere, instead of sinking down the chimney and saturating the room.
