Do you need a capacitor for a servo?

Adding a separate capacitor for each of your servos will make them get constant voltage, even if the voltage before the capacitor drops due to increased current on the common wire – each servo will have its own small “reserve tank” of electricity to fill the gaps.

Why use a capacitor with a servo motor?

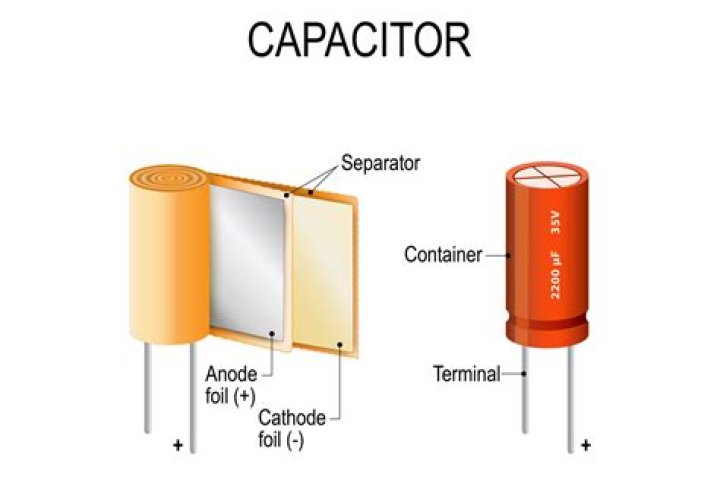

The capacitor acts as a reservoir of electricity for the motor to use, so that when it starts, it takes charge from the capacitor as well as the Arduino supply. The longer lead of the capacitor is the positive lead and this should be connected to 5V. The negative lead is also often marked with a '-' symbol.

Does a servo motor need a resistor?

If your wiring is the usual setup for servos, then resistors are normally not needed.

What do you need for a servo?

A servo has three parts: a motor and feedback device and control electronics. A servo motor is one of these three parts. If you need feedback, you can use a potentiometer, Hall-effect device, a tachometer, a resolver, an encoder, a linear transducer, or any other sensor that fits your needs.

What purpose does the capacitor across the servos power & Ground serve?

This capacitor will store up charge during normal operation, and if there is a sudden increase in current across the load, this capacitor acts as sort of a "short-term secondary battery" that helps keep the voltage high at R2 until the battery catches up.

Can a motor run without a capacitor?

Answer: There are three common types of single-phase motors named capacitor motor, shaded pole motor and split phase motors. Shaded pole and split phase single-phase motors do not require a capacitor to run.

Why is my servo motor twitching?

I suppose that the twitching is caused because each servo draws high current from your battery/power supply for a short period of time (average current is low, but peak current is high). Those high current spikes upset the smooth supply voltage. Try to add a decoupling capacitor in your circuit.

How do you power a servo?

Best way to power a servo?

1. Set the power supply to 7V, connect it to the Uno power input jack, power the servo from the 5V pinout (I'm aware of the current limit).
2. Set the power supply to 5V, connect it to both the Uno 5V socket and directly to the servo.

What are the 3 types of servos?

Servo motors come in many sizes and in three basic types. The three types include positional rotation, continuous rotation, and linear. Positional Rotation servos rotate 180 degrees. They also have stops in the gear mechanism to protect the output shaft from over-rotating.

How strong is a 9g servo?

This mini servo is quite impressive, it does quite the job for a large range of tasks. Only weighs 9grams and gives you a 1.6kg cm torque. Pretty strong regarding its size. Suitable for Beam robots and other automation tasks.

What is the resistance of a servo motor?

This should be about 200 ohms, give or take: Larger motors could have a lower ohm value whereas smaller motors could have an ohm value around 100.

What is dynamic braking in servo motor?

In short, dynamic braking is the quick stopping of a spinning servomotor by connecting resistance between the servomotor's terminals U, V, and W. With default parameter settings, the digital servo amplifier will apply dynamic braking to stop the servomotor when a Group 1 alarm occurs.

Why does a single-phase motor need a capacitor?

Some single-phase AC electric motors require a "run capacitor" to energize the second-phase winding (auxiliary coil) to create a rotating magnetic field while the motor is running. Start capacitors briefly increase motor starting torque and allow a motor to be cycled on and off rapidly.

What does a capacitor do for subs?

Sub capacitors are able to hold a temporary electrical charge. These devices are often used to balance an audio signal, and prevent sudden drops in power. While batteries are designed to hold electrical power for an extended length of time, capacitors are intended to contain only short-term power.

Does shaded pole motor need a capacitor?

Shaded Pole Motor

Shaded pole motors are the original type of AC single-phase induction motor. Also called a single phase induction motor, simply connecting to a single voltage line and an external capacitor is required to make this motor turn.

What servo should I use?

We recommend using a servo saver for any high impact application, regardless of gear material choice. Motor - Savox offers three motor choices: DC, Coreless, and Brushless. DC motors are best suited to less demanding applications, and are the least expensive.

How much weight can a servo move?

Also operating at 4.8V, this servo motor can drive a load up to 3.3kg/cm (Stall Torque). At 6V, the high end of the test voltage, the servo can move 60° at a speed of . 16 seconds with no load, and has a higher torque limit of 4.1kg/cm.

Can you mix analog and digital servos?

They can be mixed, but it is really not a good idea. Only if the receiver knows they are digital, and is set up for them. The circuitry inside the servo determines frame rate, not the receiver. The transmitter, if it has the capability, has to be programmed to match the servo.

What voltage do servos run on?

6.0vdc is the preferred voltage for servos. There is no easy way to protect servos from burning up with fuses. The problem is not necessarily with the amount of current, but with heat buildup.

Can I use 9V battery for servo motor?

Don't use a 9V battery to power your servos. 9V batteries cannot really deliver the current needed to drive one servo, let alone 3. Don't use a 9V battery to power your servos. You say your servos are rated for 4.6 to 6 V.

How much power does a servo need?

A standard servo will have a stall current around one amp, a micro servo will need a few hundred milliamps, and a giant servo can draw ten amps or more.

Can AC run without capacitor?

Most of the motors in your air conditioner can't run without a good capacitor. Like I said, they support these motors. They help the motor start and run efficiently. Some people have gone out to their air conditioner and noticed the fan wasn't spinning on their AC as it should be.

Why do we need capacitors?

The main function of capacitors is to store electrostatic energy in an electric field, and give this energy to the circuit, when necessary. They allow the AC to pass but block the flow of DC to avoid a hazardous breakdown of the circuit.

What will happen if the bypass capacitor is removed?

If the bypass capacitor is removed, an extreme degeneration is produced in the amplifier circuit and the voltage gained will be reduced.

Why do motors run capacitors?

Run capacitors

Some single-phase AC electric motors require a "run capacitor" to energize the second-phase winding (auxiliary coil) to create a rotating magnetic field while the motor is running.
