Does Linux use UDP for traceroute?

The type of packet that is sent differs depending on the implementation. By default Windows tracert uses ICMP and both Mac OS X and Linux traceroute use UDP.

What protocol does Linux use for traceroute?

In Linux, by default, traceroute uses UDP packets with a large destination port number (33434 – 33534) that is unlikely to be used by any application at the destination host. TTLs are used to get the IP addresses of the intermediary routers.

Does Linux use traceroute?

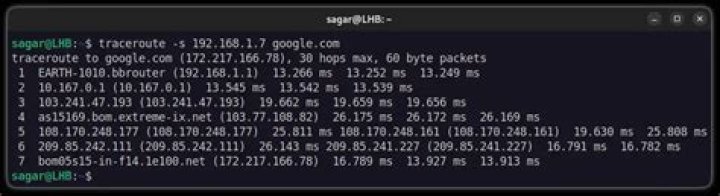

traceroute command in Linux prints the route that a packet takes to reach the host. This command is useful when you want to know about the route and about all the hops that a packet takes. Below image depicts how traceroute command is used to reach the Google(172.217.

Is traceroute ICMP or UDP?

The traceroute command uses ICMP Time Exceeded messages to trace a network route. As discussed during IP, the Time to Live field is used to avoid routing loops: every time a packet passes through a router, the router decrements the TTL field.

Does trace route use UDP TCP?

Each IP packet that we send is called a probe. Traceroute can be used with ICMP, UDP and TCP, depending on your operating system.

What UDP port does traceroute use?

-port Port

The default is 33434. The traceroute command depends on an open UDP port range of base to base + nhops - 1 at the destination host. If a UDP port is not available, this option can be used to pick an unused port range.

What two tools are similar to traceroute?

Let's now take a detailed look into each of these alternatives to Traceroute.

• Traceroute NG. Traceroute NG comes from SolarWinds and it helps to perform an accurate analysis of the network path. ...
• Open Visual Traceroute. ...
• MTR (My Traceroute) ...
• Monitis Online Visual Traceroute tool. ...
• Gsuite Tools Traceroute.

Is traceroute illegal?

Currently hosting with Big Brain Global Networks

But no - it's not illegal under the laws of any country I'm aware of. That said: The college will have house-rules for use of its network, and by using any college computers, or one of your own connected to their network, you agree to work within them.

Can you traceroute a specific port?

A TCP "traceroute" run to a domain on a specific port should give a good idea as to where the traffic is being dropped. A traceroute simply shows the 'path' on the Internet between the host where the traceroute is run and the destination that's specified as well as where, if anywhere, the route is failing to complete.

Does Linux use ICMP?

Linux ICMP internally uses a raw socket to send ICMPs. This raw socket may appear in netstat(8) output with a zero inode.

How install traceroute in Linux?

Using Linux

1. Open your terminal.
2. Run the following to install in Ubuntu: [server]$ sudo apt-get install traceroute.
3. Once installed, you can run the command as follows: [server]$ traceroute example.com. Some Linux variants require you to also specify the protocol after -I. For example:

How do I trace a port in Linux?

Running a TCP Traceroute on Linux

1. Open Terminal.
2. Type sudo traceroute -T -p 1667 ************* Note: ************** should be replaced with your domain name, server name, or IP address, and 1667 should be replaced with the appropriate port.
3. Press enter.

Is tracert and traceroute the same?

On a Windows machine, this command is called tracert; on Linux and Mac, it's called traceroute. Traceroute and tracert largely function in the same way—they map the route data takes from one point in a network to a specific IP server.

Which protocol is used by traceroute?

A traceroute works by sending Internet Control Message Protocol (ICMP) packets, and every router involved in transferring the data gets these packets. The ICMP packets provide information about whether the routers used in the transmission are able to effectively transfer the data.

How do I traceroute from source to destination?

How do I use Tracert?

1. Open a Command Prompt. ...
2. In the Command Prompt window, type 'tracert' followed by the destination, either an IP Address or a Domain Name, and press Enter. ...
3. The command will return output indicating the hops discovered and time (in milliseconds) for each hop.

How do I run a traceroute from one IP address to another?

Running a Traceroute

1. Press Windows key + R to open the Run window.
2. Enter cmd and press Enter to open a Command Prompt.
3. Enter tracert, a space, then the IP address or web address for the destination site (for example: tracert ).
4. Press Enter.

What port does SSH use?

The default port for SSH client connections is 22; to change this default, enter a port number between 1024 and 32,767. The default port for Telnet client connections is 23; to change this default, enter a port number between 1024 and 32,767.

Can traceroute command work across the firewall?

Its called TCP traceroute. Its used because almost all firewall and routers in between allows you to send TCP traffic.

What is a domain traceroute?

The Traceroute command (tracert) is a utility designed for displaying the time it takes for a packet of information to travel between a local computer and a destination IP address or domain.

What happens if you ping someones IP address?

Once you initiate the ping, your computer will send a test data packet to the desired host and will wait for a response. To make sure the test is relevant, the computer will send four pings. Once the response arrives, you will see the results of the test in the Command Prompt window.

What is better than tracert?

Here's the Best TraceRoute Alternatives & Replacements Tools of 2022: Solarwinds TraceRouteNG. Path Analyzer Pro. VisualRoute by VisualWare.

Why does tracert take so long?

It starts with a TTL of 1, waits for a timeout, then reports where the timeout error came from, and repeats the process, increasing the TTL by one each time. So basically it's a long process because it's waiting for timeouts for each hop on the way." Actually the traceroute can be ICMP or a serie of UDP packets.

What is Linux MTR command?

The mtr command is a combination of ping and traceroute commands. It is a network diagnostic tool that continuously sends packets showing ping time for each hop. It also displays network problems of the entire route taken by the network packets.

Does traceroute use ICMP echo?

Traceroute most commonly uses Internet Control Message Protocol (ICMP) echo packets with variable time to live (TTL) values. The response time of each hop is calculated.

Is there any difference between tracert on windows and traceroute on Linux?

The difference between tracert(windows) and traceroute(linux) is that: tracert(windows) will only use ICMP echo requests. traceroute(linux) [and somewhat dependent on linux distro] default to UDP echo requests.
