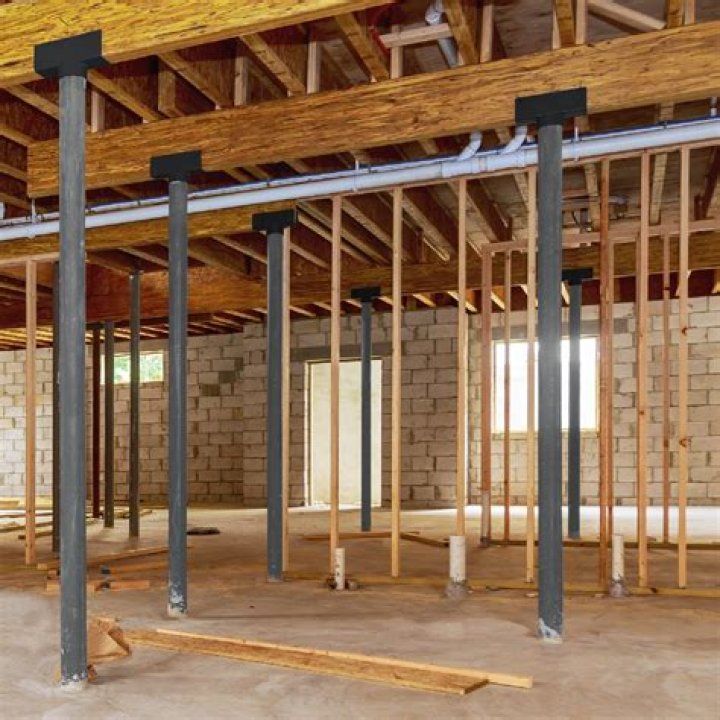

How are steel columns made?

Hot-rolled steel is commonly used to form steel beams and columns. They are created by passing heated steel between large rollers, which deform it into the required shape, such as H, I, W, S and C shapes, angles, tubes, and so on.

How are steel structures made?

Steel structures are formed from a skeleton frame that consist of vertical columns, horizontal beams and so on made from steel materials, riveted, welded or bolted together, often in a rectilinear grid. Steel structures are typically used for medium and high-rise, industrial, warehouse and residential buildings.

What are metal columns made of?

While there are many types of materials used columns in construction, steel is a common choice. Its structure offers a more durable and flexible and stronger structure than concrete structure does. Also, steel columns are generally more lightweight and faster to construct than concrete columns.

How are structural steel beams made?

Rolled steel beams are made by forcing pliable metal through large rollers so as to flatten and mold it into the desired shape. Beams can be either hot-rolled or cold-rolled.

How are steel frames put together?

The erection of structural steelwork consists of the assembly of steel components into a frame on site. The processes involve lifting and placing components into position, then connecting them together. Generally this is achieved through bolting but sometimes site welding is used.

What is wrong with steel framed houses?

Steel-framed houses suffer from relatively poor insulation and low energy efficiency. This is because steel conducts more heat than wood does, reducing the insulating properties by 60% because of thermal bridging. This may lead to higher energy costs.

How much is a steel structure?

The average steel building price is $15 – $25 per square foot, but these costs vary depending on your options, size, and complexity of the structure. Lean-to metal building kits cost the least per square foot due to the simple design, and residential steel homes cost the most.

How are steel I beams formed?

There are two standard I-beam forms: Rolled I-beam, formed by hot rolling, cold rolling or extrusion (depending on material). Plate girder, formed by welding (or occasionally bolting or riveting) plates.

How heavy is a steel beam?

For example, a beam with a size of W12 x 50 x 40 has a height of 12 inches, a weight of 50 pounds per lineal foot, and a length of 40 feet; according to the figures, this beam will weigh 2,000 pounds.

How are columns built?

Modern columns may be constructed out of steel, poured or precast concrete, or brick, left bare or clad in an architectural covering, or veneer. Used to support an arch, an impost, or pier, is the topmost member of a column. The bottom-most part of the arch, called the springing, rests on the impost.

How building columns are made?

Construction of RCC columns involve following four steps:

Column layouts. Column reinforcement work. Column formwork. Pouring of concrete.

How are columns constructed?

For example, a column might transfer loads from a ceiling, floor or roof slab or from a beam, to a floor or foundations. Columns are typically constructed from materials such as stone, brick, block, concrete, timber, steel, and so on, which have good compressive strength.

How much is a steel I-beam?

Steel I-Beam Cost

A steel I-beam costs $6 to $18 per foot for just the materials. Steel support beams for residential construction costs $100 to $400 per foot to install or between $1,200 and $4,200. Extra costs apply for knocking down walls, rerouting utilities, or adding underpinnings for support.

How much weight can a steel column support?

A bottom plate which is about 1.5 inches thick is enough to support a load of about 10,000 pounds. The strength of a lally column is determined by its weakest point. This means that it can withstand at least 2000 pounds of pressure on its top plate and 1000 pounds of pressure on its bottom plate.

What type of steel is structural steel?

What is structural steel? Structural steel is a versatile type of carbon steel. By weight, structural steel has a carbon content up to 2.1%. American Society for Testing and Materials, ASTM International, sets standards for composition and dimensional tolerances for all structural steel grades.

How do you calculate steel structure?

Steel Quantity Calculation

(Cutting length) main bar: formula = (l) + (2 x ld) + (1 x 0.42d) – (2 x 1d), where l = clear span of the slab, ld = development length which is 40 d (where d is diameter of bar), 0.42d = inclined length (bend length), 1d = 45° bends (d is diameter of bar) first calculate the length of “d“.

Are steel buildings cheaper than wood?

But, builders add, steel has a much higher initial purchase cost. So, when everything is taken into consideration, unless there's a shortage, wood and other related materials — not steel — will always be the more inexpensive construction material option in the short term.

How many tons of steel are in a building?

The average weight of a single-storey building with an area of 1,000 sq. m is around 40 to 45 tons. If there are several storeys or intermediate floors, the weight of each 1,000 sq. m is 60 to 70 tons.

How long do steel houses last?

Steel buildings face fewer issues with deterioration and corrosion than concrete or wood, and can out live other structures when properly built and maintained. Most steel buildings last anywhere from 50 to 100 years.

Is it worth buying a steel frame house?

There are some advantages to purchasing a steel frame house, such as: Steel is a very durable material. Steel can often cope better with water damage than wood. Steel has a very high strength to weight ratio, meaning a lighter frame can often be used.

Are steel homes a good investment?

Steel Buildings Have Excellent Resale Values

Because they hold their value, high-quality steel buildings are easy and profitable when it comes to resale. There is little risk when you choose to invest in and build a pre-fabricated metal building.
