How do I know if my rear derailleur is worn out?

Worn Derailleur

How do I know if my derailleur needs to be replaced?

Derailleurs will last almost indefinitely. The jockey wheels will wear out in time (tens of thousands of km) but the rest of the mechanism shouldn't see significant wear. It could be that the spring will break at some point due to material fatigue, but that is also a relatively easy to replace part on most derailleurs.

How long do bike derailleurs last?

Good quality rear derailleur can last between 3 to 5 years, when unbranded or low-quality ones can last for 2 years, no matter what the durability of the rear derailleur the jockey wheel will wear after time and it can be replaced very cheaply with new ones, on the other hand, front derailleur can last almost ...

Do derailleur springs wear out?

That said, derailleur springs will lose tension overtime, and pivots will get sloppier. Shifters can wear out too (if you ride enough), and most cannot be serviced back to health. But before you go sinking money into these more expensive components, best try a new cable/housing or get a second opinion.

How do you check a derailleur?

Hanger alignment: you can see if your derailleur hanger is misaligned by looking at it from behind the bike. You want to see if your chain runs in a straight line from the jockey wheel to the cassette. If it isn't straight then work needs to be done.

How do I test a rear derailleur hanger?

Rotate the arm toward the left side of rim, at the “9:00 o'clock” position. Rotate the tire valve to the 9:00 position. Use this point on the rim as a constant reference when checking the hanger. By checking the same point on the rim, wheel trueness or dish will not affect alignment.

Do bike derailleurs wear out?

All derailleurs wear out at some point. Check for wear by pulling laterally on the lower cage. Compare this movement in the linkage of a new derailleur. Sloppy pivot and linkages will produce inconsistent shifting, and the only solution is a new derailleur.

Why does my mountain bike chain click when I'm riding it?

A clicking noise often comes from your chain wanting to jump up or down a gear on the rear cassette. This can typically be fixed by adjusting the tension of the cable that runs from your shifter to your rear derailleur.

Is it easy to replace a rear derailleur?

Believe it or not, it's not difficult to replace the rear derailleur yourself. Before replacing a "bent derailleur" make sure it's not just the derailleur hanger! First, remove the idler pulley -- that's the bottom pulley of the derailleur.

What causes derailleur hanger to break?

Some common reasons for it breaking are: Hitting an obstacle (e.g. tree branch) Going into the spokes (badly set low limit screw or the derailleur was wobbling enough for some reason to get caught in the spokes) Chain too short.

Why does my derailleur keep breaking?

If your chain is too long, and you are in the 'small-small' combination, it is possible for the derailleur to sort of fold up on itself. Flip your bike over and put it in the smallest gear up front and the smallest gear in the rear and make sure the chain isn't rubbing on the derailleur.

When should a rear derailleur hanger be replaced?

If your derailleur takes a hit during your ride, the derailleur hanger is there to absorb the impact. If the hanger gets damaged or bent, you'll need to replace it.

How do you troubleshoot a derailleur?

Likely the issue is either a bent derailleur hanger or the low limit screw needs to be adjusted. First, try to wiggle the cassette, then the derailleur and hanger to make sure everything is tight.

How do you fix a derailleur?

While pedaling the bike, shift one cog larger by clicking the shifter lever. If the derailleur doesn't move the chain into the next cog or hesitates, add one-quarter turn of cable tension (counterclockwise on the barrel adjuster) and try again until the derailleur easily shifts into the next cog.

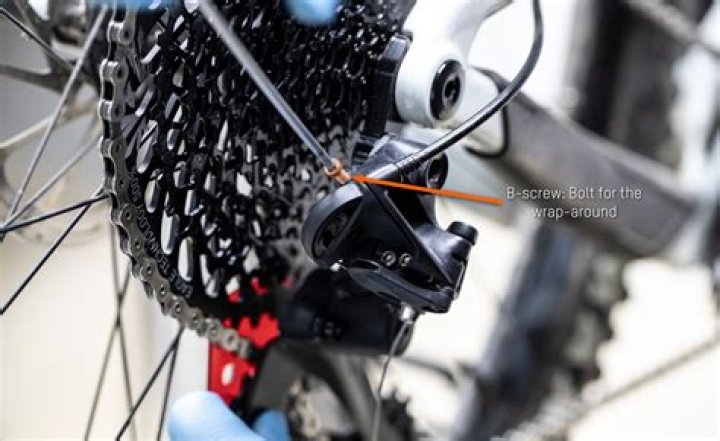

What is B screw on rear derailleur?

​B-Screw. Most derailleurs have some form of adjustment for the spacing of the guide pulley to the cogs. This spacing is controlled by the B screw, or body-angle screw. This adjustment is check when the chain is on the smallest sprocket up front, and the largest cog in back.

Do you lube derailleur?

Besides the pivots points, be sure to lube the barrel adjusters on the brakes and rear derailleur, plus the brake quick release mechanisms if your bike has them. These are small levers on the side of some brakes that allow widening the brake for easier wheel removal and installation.

Can I use wd40 on derailleur?

WD-40 is also useful to clean the derailleurs to remove any dirt and tough grime on your bike. Put the WD-40 on the derailleurs and let it soak in for a few minutes. And then clean.

How do you clean a derailleur chain?

Brush degreaser onto the cassette sprockets; a larger brush will speed up the process. Rinse off the cassette, chain, chainrings, and derailleur pulleys with a low-pressure stream of water. Avoid squirting water directly into any bearings. Dry everything with a clean rag, and then set the bike aside to air dry further.

How much play should a rear derailleur have?

This is a built-in feature, and I won't go in a deep explanation here, but if yours has a bit under 1mm of play, you should be fine, This play is obvious if you move the RDer by hand, and almost non-existent during normal shifting while you are riding.

How do I know if my derailleur hanger is straight?

Rotate the arm of the alignment tool to the 12 o'clock position (pointing straight up). If your hanger is straight, the gauge arm should sit in the same position relative to the rim. If it's not straight, this will indicate the direction in which the hanger is bent.

How much does it cost to fix a bent derailleur?

Derailleurs - (per derailleur) $25 labor for derailleur adjustment and lubrication. If cable and housing needs to be replaced, labor is $25 plus the cost of the cable and housing. If a bent derailleur needs to be aligned, there is an additional $15-20 labor cost.

How do you check a derailleur hanger alignment without tools?

If you don't have an alignment tool, you can make do with a large adjustable spanner. Tighten the spanner over the hanger so that it covers the threaded hole and clamps the hanger snugly. Then twist the spanner gently until the hanger is back in line.
