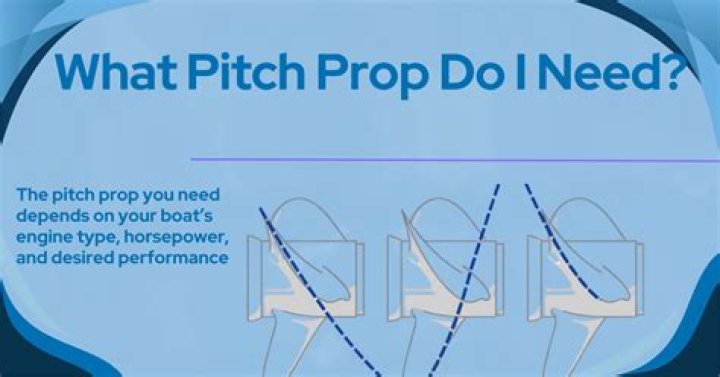

How do I know what pitch prop I need?

When choosing a propeller, choose a pitch that will keep the engine RPM in its recommended operating range. Going under the range will cause the boat to lug, while going over can cause engine strain. Blades have other important features built into their design. Rake is the angle between the blade and the hub.

How do you figure out what pitch prop you need?

Selecting the correct prop should result in your engine running within the designed rpm range at Wide Open Throttle (WOT). Your owner's manual should include this spec—usually 5000–5500rpm for an outboard or 4200-5000rpm for a sterndrive—or your mechanic or dealer may know.

How do I know what prop to use on my fishing line?

At least once per season, remove the prop and thrust washer, and visually check for fishing line wrapped around the prop shaft. Remove all traces if you find any. You may have to cut it off with a sharp knife. Check the seals carefully with a magnifying glass to see if they've been cut or ruptured.

What prop pitch is best for speed?

The lower the prop pitch, the better your hole-shot. However, this comes at a price: top speed. The lower pitch makes the engine reach maximum rpm at slower speeds. Conversely, a higher pitch will deliver greater top speeds, but slower acceleration.

What is the difference between a 17 and 19 pitch prop?

The 17" prop will give you a better hole shot but lower top speed. If it is to small it the engine may go over the recomended top RPMs. The 19" prop will give you less of a hole shot but a higher top speed if the motor is strong enough to turn it in the recomended top RPM range.

What is the difference between a 19 pitch and a 21 pitch prop?

A simple explanation of prop pitch indicates that a 21-pitch prop, if turning in a thick substance, will push your boat forward 21 inches for every revolution of the blades. Conversely, a 19-pitch propeller would move your boat forward 19 inches.

What is the difference between a 15 and 17 pitch prop?

The 15 pitch prop will troll at a slightly slower speed than the 17 or 18 pitch prop. The 15 pitch prop will give you a better hole shot, and will allow you to work big water with ease. Yes, you will burn a bit more fuel, because you will have to spin a few more rpms to get where you are going.

What is better 3 or 4 blade prop?

3 or 4 Blades? A 3 blade propeller usually offers top speed performance while a 4 blade propeller provides maximum thrust and smooth cruising operation. Four blades have some features of their own, though. They often provide more lift at the stern which will help accelerate the hull, especially if it is stern heavy.

Is a 4 blade prop better than 3?

The short answer is the 4 blade propeller has more surface area and bite, which allows a boat to get up on a plane and maintain it easier at a lower RPM. However, the 3 blade prop has less surface area, which offers less drag and more top speed than the 4 blade prop.

How far below the boat should the prop be?

If you have a short shaft motor, the top most part of the transom and the lower most part of the boat should be about 15 to 16 inches. For a long shaft, I think 20 to 21 inches is correct.

How do I know what size prop is on my boat?

Propeller Sizes are given in a set of numbers, e.g. 13x17 or 19x23 usually labeled on the propeller. The first number is the Diameter (width of the circle of the blades) and the second is the Pitch (theoretical travel distance of the angled blades in one revolution). Two other design features include Rake and Cup.

How do I know what prop is in my boat?

The first number indicates the overall diameter of the propeller in inches or millimeters. The second number indicates the pitch in inches or millimeters. They can be separated by an "X" or letters indicating the rotation like RH or LH. This indicates the propeller rotation.

What RPM should my boat run at?

Most mechanics and engineers suggest the best cruising speeds are achieved at 3400 and 3800 rpm respectively.

What does a 5 blade prop do?

Five Blades Placing the drive higher on the transom reduces drag and can increase speed, but it also places the propeller near the surface. The five-blade design of the Maximus allows it to maintain a solid bite on the water, even in the highly aerated water flow produced by performance boats with stepped hulls.

Is a 5 blade prop better than 3?

The increased blade area afforded by the addition of the fourth or fifth blade can provide increased water displacement capability, more lift, better bite and grip, as compared to a conventional 3-blade propeller.

Will a 4 blade prop help with chine walk?

Will a 4 blade prop help with chine walk? A 4 blade prop will help you with holeshot and handling, but generally suffer from top speed. I would suggest you go over your boat by balancing out the weight as best as possible first before getting any prop work done.

What is the difference between a 2 blade and 3 blade prop on a boat?

Three Blade

They have a major advantage when going against heavy winds and seas or a current as they will keep your boat speed by up to 30% better than the two blade. Moreover, they will run much smoother and reduce vibrations as it is balanced around 3 or 4 points as opposed to 2.

Is a 19 pitch prop faster?

Pro tip: Remember that each inch of pitch is equivalent to about 200 rpm. So if you are going to be changing the propeller on your recreational boat and decide to go from a 21 pitch prop to a 19 pitch prop, you will be essentially increasing the engine rpm by around 400 revolutions.

What is aircraft propeller pitch?

The pitch is effectively a measure of how far the propeller would move forwards in one revolution. The pitch is used to control the speed of the air leaving the back of the propeller. The pitch of a propeller blade changes as you move along its surface from one end to the other.

Does a bigger prop mean more speed?

Change Your Propeller

If you are running an aluminum prop, changing to even a basic stainless steel prop will usually improve top speed. Because stainless steel is stronger than aluminum, the blades on a stainless prop can be thinner, which reduces drag in the water.

What happens when you increase prop pitch?

Pitch measures the forward movement of the propeller's blade during one complete revolution. This is measured in inches. Lowering prop pitch will increase acceleration and thrust. Increasing prop pitch will make the boat go faster (provided the engine has enough power to keep the RPMs in the optimum operating range.

What is fixed pitch?

A fixed pitch is the simplest type of propeller. It is linked mechanically to the engine, and many of the simpler, light aircraft use it. This simplicity makes these planes easier to fly in some sense as engine speed is directly linked to propeller speed. Some limitations may apply to the use of this propeller.

What does a bigger diameter prop do?

Diameter usually increases for propellers used on slower and heavier boats, and decreases for propellers intended for faster boats. A prop with more diameter has more total blade area, which allows it to handle more power and create more thrust to move a heavy boat.

What do boat prop numbers mean?

Two numbers are used in describing the size of a propeller. One describes the diameter and the other describes the pitch. Diameter is always the first number listed. A 24 X 20RH prop has a diameter of24". The "RH" stands for right hand rotation of the propeller.
