How do you identify coaxial cable?

Coaxial cables generally use the label “RG,” which stands for “Radio Guide” and is accompanied by numbers to create a code that distinguishes the cable model. Once you find the designation code, you will quickly identify the type of coaxial cable!

What does a coaxial cable look like?

What does a Coaxial Cable look like? Coaxial cable has a distinct thick, round shape because of its interior insulation layer. Its size makes it look very different to other types of cable, such as twisted pair or Ethernet cable.

How do you identify coaxial connectors?

1. A standard polarity jack (female) has a socket, whereas a reverse polarity jack (female) has a pin.
2. A standard polarity plug (male) has a pin, whereas a reverse polarity plug (male) has a socket.

What are the 4 types of coaxial cable?

Coaxial Cable Types

• RF vs RG Coaxial Cable Types. RF and RG coaxial cable types are each designations from the early days of cable TV and radio transmissions. ...
• RF. RF coaxial cables are utilized to conduct radio frequency signals. ...
• RG-6. ...
• RG-59. ...
• RG-11. ...
• BNC. ...
• TNC. ...
• SMB.

Are there different types of coax cables?

There are three types of coaxial cables: RG59, RG6, and RG11. While RG6 is the most widely used coaxial cable, RG11 and the lower end RG59 are also useful for specific connections. Here are the basics on each type: RG59 is the low end of coaxial cable options.

Are there different size coax connectors?

The most common sizes of coax cables are,

• RG-6 (6.15mm)
• RG-11 (10.30mm)
• RG-58 (4.95mm)
• RG-59 (6.15mm)
• RG-62 (6.15mm)
• RG-12 (14.10mm)
• RG-213 (10.33)

What are the different sizes of coax cable?

The three most common cable sizes are RG-6, RG-11 and RG-59:

• RG stands for "radio guide." The numbers of the various versions of RG cable refer to the diameter (59 meaning . ...
• Most non-industrial coax is now known as RG-6, but installers may use a thicker cable, like RG-11.

Is a coax cable the same as a TV cable?

A coaxial cable, also known as a coax cable, is a specialized cable used to send data and radio frequencies without extra electrical interference, known as static. They're commonly used for devices like TVs, the internet, and radios.

Which carrier wave is used in coaxial cable?

EXPLANATION: Coaxial cable can carry both digital and analogue signal. Therefore option 3 is correct.

Are coax cables universal?

There are many kinds of coaxial cables to suit different applications, among them all, RG6 and RG59 are the most commonly use coaxial cable for video signal transmission. Also, coaxial cables can patch with many different connectors for different purpose as well.

How do I find coaxial cable in my house?

Look for a gray or black box, which may have the name of your cable provider printed on the front. You will see a black cable that runs into the box from either a utility pole or underground utility source and coaxial cables that run out of the cable box into your home.

How do I find a coax cable in the wall?

Step 1: Locate your splitter.

1. If you don't know where your cable coax lines enter your home, locate the Midco house box attached to the side of your home. Typically, it's about five feet off the ground.
2. Next, find where the coax lines go into your home. ...
3. Near the entry point, find the splitter.

Which of the following are coaxial cable layer?

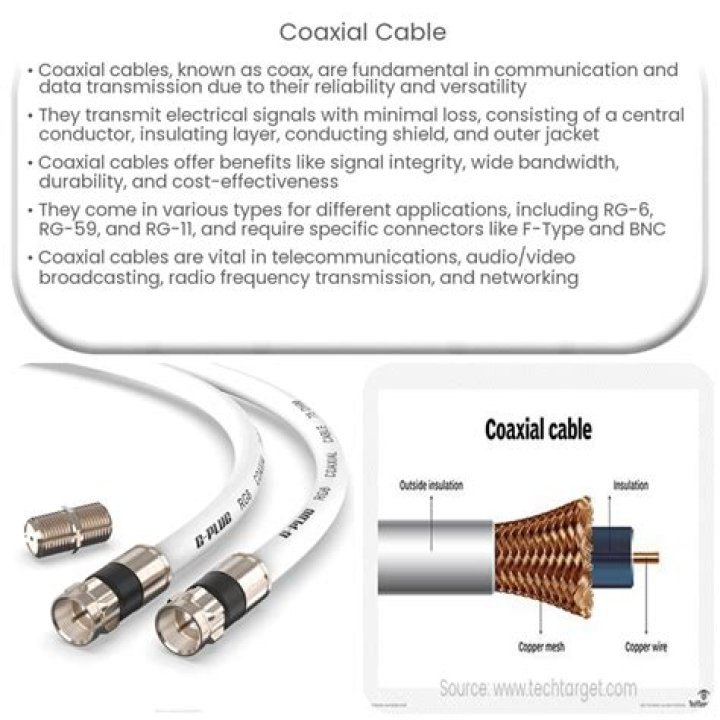

Coaxial cable conducts electrical signal using an inner conductor (usually a solid copper, stranded copper or copper plated steel wire) surrounded by an insulating layer and all enclosed by a shield, typically one to four layers of woven metallic braid and metallic tape.

Is coax a copper cable?

Coaxial cable is a type of copper cable specially built with a metal shield and other components engineered to block signal interference. It is primarily used by cable TV companies to connect their satellite antenna facilities to customer homes and businesses.

What is hard line coaxial cable?

“Hard line” is applied to several forms of heavy coaxial cable designed for permanent installation. They are characterized by solid shields, a foam dielectric, high power handling, and much lower loss than ordinary coax cables.

How do you calculate coax length?

To calculate the electrical length of the line you need to multiply the velocity factor of the line (available from the supplier of the line) by the free space length. For the length in feet, this is (983.6 / frequency in MHz) * velocity. For the length in meters, this is (299.8 / frequency in MHz) * velocity.

How do I choose a coaxial connector?

The type of coaxial connector is dictated by the matching device, system, or other interconnect the coaxial cable will be mated with. Certain cables, however, may be a better fit for certain connector types, based on size, shielding type, center conductor type, additional layers, and types of metals used.

What is the small coaxial cable called?

BNC. Originally designed for military use, the Bayonet Neil-Concelman (BNC) coaxial connector is a miniature-to-subminiature RF connector used for quick connect/disconnect in RF equipment, test instruments, radio, television, and video signal.

How do I know if I have an active cable outlet?

How to know that the cable outlet is working or active

1. First, check where the cable outlet meets with the distribution panel in the wall or the splitter. ...
2. You need to screw the coaxial wire smaller length on the electrical connector or the wall jack for this step.

What can I use if I don't have a coax cable outlet?

Without a coax outlet, you can use a fiber optic outlet instead.

How can you tell if a cable line is active?

Manual Test using Cable Modem– You can test your coax outlet's signal by taking your cable modem from cable outlet to cable outlet, and plugging it in to each coax outlet to verify a signal and connectivity. If your internet modem connects like normal, that means a signal was detected.

Are all coax outlets connected?

In most houses all the coax cable is either connected by splinters that run room to room or there is some central place the coax runs to. The coax cables may or may not be connected together in that central location.

Does it matter what coaxial cable I use for internet?

Does It Matter What Coaxial Cable I Use for the Internet. Yes. A poor quality coaxial cable can cause errors – and even let you have a bad connection.
