How does a distributor ignition system work?

Distributor-based ignition systems

How does an ignition distributor work?

The distributor is tasked with receiving high voltage from the ignition coil to spark the individual spark plugs in proper firing sequence. The distributor acts as a spinner, ensuring that spark is continuously distributed to each spark plug.

What are the 3 types of ignition systems?

There are three basic types of automotive ignition systems: distributor-based, distributor-less, and coil-on-plug (COP). Early ignition systems used fully mechanical distributors to deliver the spark at the right time. Next came more reliable distributors equipped with solid-state switches and ignition control modules.

What sends power to the distributor?

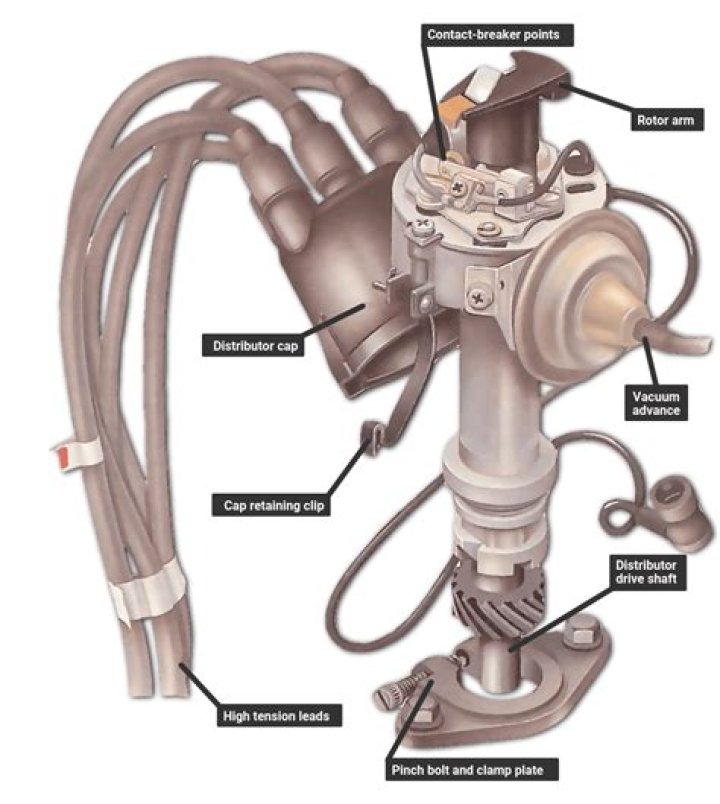

The distributor contains, among other parts, a rotor that spins, and a number of contacts mounted to the distributor cap. Power from the ignition coil is supplied to the rotor. The rotor spins in time with the engine. When the end of the rotor is near one of the contacts, electricity arcs to the contact.

What sends spark to the distributor?

The rotor spins because it's connected directly to the shaft of the distributor. As the rotor spins, it makes contact with a number of points (4, 6, 8 or 12 depending on how many cylinders your engine has) and sends the spark through that point to the plug wire on the other end.

How does a distributor get power?

The ignition coil is the part of your engine that produces high voltage in order to power your cylinders. The distributor is what gets that high voltage from the coil to the right cylinder. The connection is accomplished through a cap and rotor.

What sends power to the coil?

What Sends Power To The Coil Pack? ignition coil of a gasoline-powered car has to start the engine first and work its way to a battery to power the engine (usually an alternator powered by rectified DC). Once the engine is up and moving, the ignition coil makes do with electricity.

What sends spark to the coil?

The ignition system is divided into two sections, the primary circuit and the secondary circuit. The low voltage primary circuit operates at battery voltage (12 to 14.5 volts) and is responsible for generating the signal to fire the spark plug at the exact right time and sending that signal to the ignition coil.

What causes no power to ignition coil?

The supply to the ignition supply isn't fused, so if you've shorted it to the crankcase, it's likely damaged the wiring and ignition switch. Likely that the ignition switch has burnt out. If you run a wire from the battery +ve to the coil, the engine should start. Replacing the switch is likely to be the solution.

Where does the distributor wire go on the coil?

The distributor connects all of the spark plug wires. Most newer cars do not have a points switch, so that terminal is connected to ground or the negative terminal of the battery. On vehicles made before 1980, connect the points wire to the negative terminal of the coil.

What are the 5 ignition systems?

Ignition 101: A Quick Guide to 5 Common Ignition System Designs

• Breaker-Point Ignition System. ...
• High Energy (Electronic) Ignition System. ...
• Distributorless Ignition System. ...
• Coil-on-Plug (Direct) Ignition. ...
• Capacitor Discharge Ignition (CDI) System For Small Engines.

How is a distributor driven?

The distributor is driven by the engine's camshaft.

What does the condenser do in a distributor?

Technical Talk – Ignition Condensors

Basically the function of a condenser in a coil ignition circuit is to reduce the spark at the contact points as they open in the distributor and thus minimise burning and pitting of the points.

Is the ignition coil in the distributor?

In modern systems, the distributor is omitted and ignition is instead electronically controlled. Much smaller coils are used with one coil for each spark plug or one coil serving two spark plugs (for example two coils in a four-cylinder engine, or three coils in a six-cylinder engine).

How do you test a distributor?

Check the Arc

Place the metal screwdriver near the electrode of the distributor. It should not touch the electrode. Step away from the hood and have someone watch the arc while the ignition is turned on. If there is an arc, it is firing.

What are the symptoms can occur due to the failure of the distributor?

The distributor is an integral part of the ignition, and therefore, any faults in it can affect your car in adverse ways. As we look at bad distributor symptoms, it can have severe effects ranging from rough idling, shaking, and even stalling. There are many reasons why a distributor can develop problems.

Why am I not getting spark from my distributor?

Loose, broken, or corroded wires in the ignition module can be a reason behind no spark from distributor. Cleaning oxidized terminals and replacing broken wires is a good decision.

How do you check a coil from distributor to spark?

Pull the coil wire from the distributor and hold it near a ground. Again, have your assistant crank the engine and look for spark from the coil lead. If you have spark, you likely have a problem with your distributor rotor or cap, so you may want to replace them.

How do I know if my coil has power?

Locate the positive or power wire attached to the engine coil.

1. If this wire has no power, then your ignition coil is not receiving current. ...
2. If this wire has power, then the wiring from the ignition switch to the coil is working properly and you can move on.

Should coil have power both sides?

Yes, if the points are open and/or the electronic module is NOT CLOSED then you will measure battery voltage on both the coil (+) and coil(-) terminals. Since there is no current flowing through the coil (no path to earth) then both sides of the coil will be at the same potential.

How many volts does a distributor need?

The battery supplies twelve volts of direct current. In order to achieve combustion, though, there needs to be about 40,000 to 100,000 volts at the spark plug. How does the voltage get so much higher? The answer lies in the ignition coil.

What causes a distributor not to fire?

A Bad Pickup Inside The Distributor, A Stripped Distributor Drive Gear, Broken, Loose Or Corroded Wires From The Pickup, To The Ignition Module Or (PCM)

Can ignition switch cause no spark?

No spark is one of the most common causes of a no-start condition. It's the first thing I check for. ... The igniter or ignition module, the pick up coil or crank sensor, the cam sensor, and the ignition switch are included.

What happens if condenser fails?

If the condenser is damaged in any way and results in the restriction of refrigerant flow, then the entire cooling system will work less efficiently. If the refrigerant cannot flow properly, then the amount of cool air that the system can produce will be significantly reduced.

How do you test a distributor condenser?

How to Test a Condenser in a Small Engine

1. Remove the condenser from the engine. ...
2. Switch the volt ohmmeter to the ohms position. ...
3. Touch the red lead to the hot connector on the condenser. ...
4. Remove the leads and reverse the placement to the condenser. ...
5. Movement from the meter's needle indicates the condenser is good.
