How thick should a fire door frame be?

FD30 (30 minutes) fire doors are usually 44/45mm thick, as opposed to the standard door thickness of 35/40 mm, FD60 (60 minute) fire doors most commonly used in commercial settings are normally 54mm thick. Specially constructed fire doors can have a rating of 4 hours or more.

How thick are fire door linings?

Lining kits are 32mm thick.

Do fire doors need special frames?

Fire door frames or linings can be made from various timbers and timber-based materials. They must match the species, type and density, profile and frame dimensions given in the door leaf's data sheets and confirmed in the manufacturer's installation instructions.

How thick should a door frame be?

Standard interior door jamb thickness on pre-hung doors is 4-9/16 inches. The door jamb is the frame that installs in the wall and supports the door via hinges. This thickness is designed for installation in a standard two-by-four wall (constructed by studs that are actually 1½ inches by 3½ inches).

What is size of fire door frame?

Common options are 2040 x 526/626/726/826/926 x 40mm. All of these standard UK door sizes are usually available as a fire door equivalent, with the only difference being an increased door thickness. This is because extra core component materials are required in the construction of the door to achieve its fire rating.

How thick is a door?

The standard door thickness is anywhere from 1 3/4" to 2" thick. Most door hardware that you order or buy will adjust anywhere in between those measurements, maybe even a little bit more.

How do you measure a door frame thickness?

Take three measurements inside the door frame – at the top, middle and bottom. The widest measurement determines the width of the door. Use a tape measure to understand the width of the three areas of the door frame. Run the tape measure along the width of the frame from the left to the right and record these numbers.

What size frame do I need for a 30 inch door?

32-1/2 inches. The rough framing should be 2-1/2 inches wider than the door itself. That leaves room for the 3/4 inch finish frame on each side of the door, and then 1/2 inch on each side for the shims between the finish frame and the rough frame.

How wide is a 30 inch door frame?

In the building trades, a 30-inch door is called a “2-6” door, meaning 2 feet, 6 inches wide, or 30 inches.

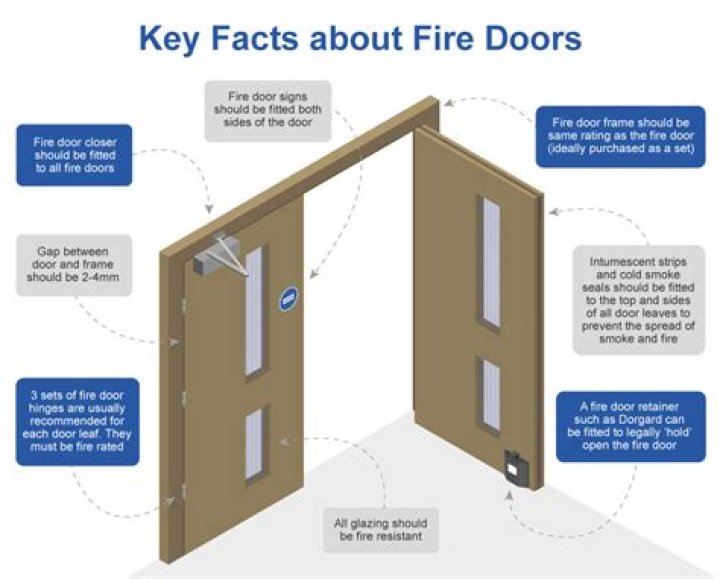

Should fire doors have a gap at the bottom?

Gaps between fire doors and the door frame should never be more than 4mm or less than 2mm. It's recommended to aim for a 3mm gap to ensure adequate room for the intumescent strips to activate in the event of a fire, and for the smoke seal strips (if installed) to not get damaged by the opening and closing of the door.

Are smoke seals required on fire doors?

ALL fire doors MUST be fitted with the appropriate seals.

They are designed to expand under heat, and fill the gaps between the door leaf and frame, thereby preventing the passage of smoke and fire to other parts or compartments of the building.

Is a door lining the same as a frame?

In general terms, the difference between a door frame and door lining is that the lining hides the gap between the wall and the door. Whereas, the door frame is attached to the door, holds the door upright, provides support, and allows the door to move on its hinges.

What size should Door stops be?

Minimum 12.5 x 25mm door stop, Door stops, or rebates on the frame, must be continuous. Any additional timber required to achieve this standard must be fixed by being glued and screwed.

What is an FD30 door frame?

The FD30 certification means that it will withstand smoke and flames for up to 30 minutes. A finger-jointed construction increases the structural stability, while intumescent parts expand when heated to prevent smoke transferring from room to room.

How much smaller should a door be than the frame?

Ideally, there should be a gap of about 1/8 inch at the top and along each side, and about 3/8 inch at the bottom. Use cardboard spacers or folded matchbooks (four thicknesses equals about 1/16 inch) along with shims underneath to maintain the spacing.

What's the rough opening for a 32 inch door?

Rough opening for a 32 inch door:- for a 32″ door, you will need rough opening to 2 inches wider & 2-1/2″ taller than the actual door size, so, if you are installing a 32″ wide and 80″ tall or 32″×80″ interior, or exterior, barn, bifold & pocket bedroom door, the rough opening will be 34″ wide and 82-1/2″ tall or 34″× ...

How do I know if my door is 2x4 or 2x6?

Some homes were made using 2x4 construction, and so should have the standard jamb. Some homes are built with thicker walls, made of 2x6's. A quick trip with a tape measure should give you a good idea of which size wall you have. If it is closer to 4 1/2" than to 6 1/2" thick, then you have a 2x4 wall.

How do you build a 2x4 door frame?

How to Make a Door Out of 2x4s

1. Swing the blade of a miter saw to 45 degrees. ...
2. Apply glue to the mitered corners of all four studs. ...
3. Shoot two 2-inch nails through all four corners of the frame from both directions using a nail gun. ...
4. Pick up the frame and place it across four sawhorses. ...
5. Liberally apply glue to this side.

How wide is a 2x4 door jamb?

The minimum door jamb width required is 4 ½ inches.

This accounts for: 2x4 width: 3 ½ inches. Wall surface thickness on each side: ½ inches.

How thick can an entry door be?

Front door thickness: Most doors will be 1 3/4 inches thick regardless of type or style. While this measurement is the standard thickness, it could vary slightly depending on the material of your door. Well-insulated doors may be a bit thicker depending on what they're made of.

How thick does a door need to be for a deadbolt?

Always defer to the manufacturer's installation instructions. The door's thickness should be between 1-3/8 and 1-3/4 inches. Most deadbolts fit doors in this range.

How thick does a door need to be for a handle?

Door handles often have a diameter of either 2 3/8" or 2 3/4" which will fit doors that usually have a thickness of 1 3/8" for interior and 1 3/4" for exterior doors.
