Is ICMP Layer 4 protocol?

ICMP messages are encapsulated in IP packets so most people would say that it's a layer 4 protocol like UDP or TCP. However, since ICMP is a vital part of the IP protocol it is typically considered a layer 3 protocol.

Is ICMP a layer 3?

However, ICMP is implemented as part of the IP layer. So ICMP processing can be viewed as occurring parallel to, or as part of, IP processing. Therefore, in the topic on TCP/IP-based layered network, ICMP is shown as a layer 3 protocol.

What type of protocol is ICMP?

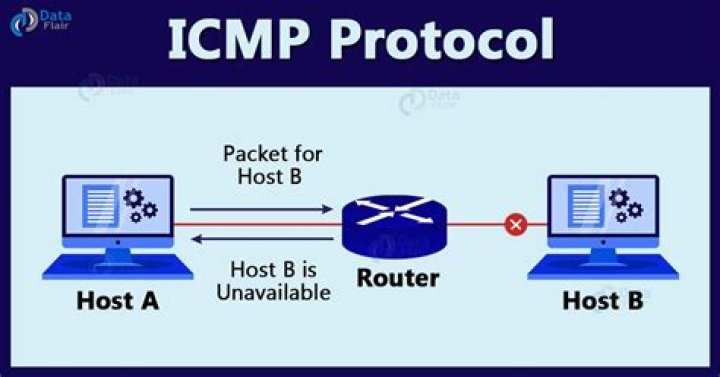

What is ICMP (Internet Control Message Protocol)? ICMP is a network level protocol. ICMP messages communicate information about network connectivity issues back to the source of the compromised transmission. It sends control messages such as destination network unreachable, source route failed, and source quench.

Is ICMP an L2?

L3 has ICMP or IGMP and process that is using them will use only L3, L2 and L1 layers. Normally, protocol from layer N+1 is encapsulated with header of protocol from Layer N, but protocols like arp, stp, cdp, icmp or igmp are exceptions and they are encapsulated with header of protocol that is from the same layer.

Is ICMP IPv4 or IPv6?

ICMP is available for both IPv4 and IPv6. ICMPv4 is the messaging protocol for IPv4. ICMPv6 provides these same services for IPv6 but includes additional functionality. In this course, the term ICMP will be used when referring to both ICMPv4 and ICMPv6.

Is ICMPv6 same as IPv6?

Internet Control Message Protocol version 6 (ICMPv6) is the implementation of the Internet Control Message Protocol (ICMP) for Internet Protocol version 6 (IPv6). ICMPv6 is an integral part of IPv6 and performs error reporting and diagnostic functions.

What port is ICMP?

ICMP doesn't have a source or destination port number because it's not a transport layer protocol like TCP and UDP. ICMP is part of the networking layer and is encapsulated by IP. ICMP is assigned Protocol Number 1 in the IP suite according to IANA.org.

Is ICMP l3 or l4?

ICMP messages are encapsulated in IP packets so most people would say that it's a layer 4 protocol like UDP or TCP. However, since ICMP is a vital part of the IP protocol it is typically considered a layer 3 protocol.

Is ping a protocol?

Ping is a computer network administration software utility used to test the reachability of a host on an Internet Protocol (IP) network. It is available for virtually all operating systems that have networking capability, including most embedded network administration software.

Is ICMP an ARP?

When you attempt to ping an IP address, an ARP request is sent at the same time. Your firewall may be blocking the ICMP echo, but chances are the computer will receive an ARP reply. Your computer's ARP table will contain the IP address and MAC address of the host you are trying to reach.

What is use of ICMP protocol?

Internet Control Message Protocol (ICMP) is used for reporting errors and performing network diagnostics. In the error reporting process, ICMP sends messages from the receiver to the sender when data does not come though as it should.

What is ping ICMP?

The ICMP echo request and the ICMP echo reply messages are commonly known as ping messages. Ping is a troubleshooting tool used by system administrators to manually test for connectivity between network devices, and also to test for network delay and packet loss.

What is the difference between IP and ICMP?

IP is a reliable protocol while ICMP is an unreliable protocol. b. In IP, error checking and control are not concerns while in ICMP it concerns.

What is a Layer 4 protocol?

Layer 4 of the OSI model, also known as the transport layer, manages network traffic between hosts and end systems to ensure complete data transfers. Transport-layer protocols such as TCP, UDP, DCCP, and SCTP are used to control the volume of data, where it is sent, and at what rate.

Is ICMP UDP or TCP?

ICMP is IP protocol 1, TCP is IP protocol 6. Other common IP protocols are 17 (udp) and 47 (gre). Typically ICMP is not sent within any type of framework that uses acknowledgements and timeouts like TCP does.

What OSI layer does ICMP operate?

ICMP is referred to as a Layer 3 protocol. This number comes from the Network Layer in the Open Systems Interconnection (OSI) protocol stack. The Network Layer in the OSI model is the thirds up and it equates to the Internet Layer in the TCP/IP stack.

Does traceroute use ICMP?

A traceroute works by sending Internet Control Message Protocol (ICMP) packets, and every router involved in transferring the data gets these packets.

Where are ICMP packets identified?

ICMP packets are IP packets with ICMP in the IP data portion. ICMP messages also contain the entire IP header from the original message, so the end system knows which packet failed. The ICMP header appears after the IPv4 or IPv6 packet header and is identified as IP protocol number 1.

How many protocols are used in the application layer *?

4. How many protocols are used in the application layer? Explanation: More than 15 protocols are used in the application layer, including file transfer protocol, Telnet, Trivial File Transfer Protocol and simple network Management Protocol.

What layer is TCP protocol?

In terms of the OSI model, TCP is a transport-layer protocol. It provides a reliable virtual-circuit connection between applications; that is, a connection is established before data transmission begins.

What are the Layer 3 protocols?

The protocols used in Layer 3 include:

• Internet Protocols IPv4/v6.
• Internet Control Message Protocol (ICMP)
• Distance Vector Multicast Routing Protocol (DVMRP)
• Internet Group Management Protocol (IGMP)
• Address Resolution Protocol (ARP)
• Internet Protocol Security (IPsec)
• Routing Information Protocol (RIP)

Why ICMP packet has no port?

The ICMP packet does not have source and destination port numbers because it was designed to communicate network-layer information between hosts and routers, not between application layer processes.

Which protocol number represents ICMPv6?

ICMPv6, Internet Control Message Protocol for IPv6. IP Protocol: 58.

Which of the following is an ICMPv6 informational message?

Echo Request and Echo Reply (used by many commands and utilities like "ping" for network diagnostics and communication trouble shooting) are also ICMPv6 informational messages.

Does IPv6 need ICMP?

IPv6 really needs certain ICMP message types to get through. The most important ones are Packet-Too-Big and Parameter-Problem. If you block those then you will get connectivity issues. Also: the IPv6 equivalent of ARP is neighbour-discovery, which uses ICMP packets as well.
