Is it hard to change a master cylinder?

Replacing a brake master cylinder is not a difficult task to do in your own garage for most vehicle models. But you need to prepare. Sometimes, you'll need to remove some components, hoses, or wires out of the way. Make sure to keep track of where they go, along with their respective fasteners, so you don't lose them.

How long does it take to replace the master cylinder?

To replace both cylinders takes roughly 8 hours. You can get an exact quote, both as to labor and parts, by using YourMechanic's on-line estimator for clutch repairs.

Can you change master cylinder without bleeding brakes?

When the brake pedal is depressed, a push rod activates the master cylinder and pushes brake fluid to all four brakes at each corner of the vehicle. When the master cylinder requires replacement, it must be removed from the vehicle, which means the brake lines must be disconnected from it.

What should you do before removing the master cylinder?

Part 1 of 3: Preparing the old master cylinder for removal

1. Materials Needed.
2. Step 1: Remove as much fluid as possible from the master cylinder. ...
3. Step 2: Remove any components that may be in the way. ...
4. Step 3: Unplug the fluid level sensor. ...
5. Step 4: Crack open the brake lines with the line wrench.

How much should it cost to change master cylinder?

The total cost to replace a brake master cylinder will usually be somewhere in the range of $250 to $550 if you have a professional mechanic do the job. A new brake master cylinder and any related parts (including new brake fluid) will cost anywhere from $100 to $300. Labor will run about $150 to $250.

Why do master cylinders fail?

A vital component known as the master cylinder converts your brake pedal's movement into hydraulic force. As time goes on, the master cylinder experiences a lot of pressure-related wear and tear, which eventually leads to failure.

Can a master cylinder be rebuilt?

A soft or spongy brake pedal indicates it is time to "rebuild" your master cylinder. You'll have to remove it from the car, disassemble, clean the metal parts, hone the bore, install new parts from a rebuilding kit and reassemble it.

How long does it take to bleed brakes after replacing master cylinder?

Bleeding the brakes takes roughly 10 to 15 minutes per wheel. Because there are four brake lines, bleeding the brakes for the entire car or truck would take roughly 30 minutes.

How much does a master brake cylinder cost?

A brake master cylinder replacement typically costs between $402 to $503. This breaks down to: Labor costs: estimated between $136 to $171. Parts: estimated between $267 to $332.

What is a symptom of a failed master cylinder?

The Brake Pedal Behaves Abnormally

If it malfunctions, the cylinder will not distribute pressure properly, and the pedal will be affected. When you continue using your car will a bad cylinder, it will wear out and start leaking. The pedal will also feel spongy, mushy, and may sink far down when pressed.

How do I install a new master cylinder?

Install the new brake master cylinder.

1. Put the new brake master cylinder in place of the old cylinder.
2. Connect the mounting bolts with a socket wrench.
3. Tighten to prescribed torque or at least as tight as the old ones were.
4. Fill the fluid reservoir with fluid allowing some to run out the brake pipe holes.

Can you just replace brake fluid in reservoir?

While it may not be a very common brake system repair, a brake fluid reservoir replacement is something that should be left to a professional.

How many master cylinders does a car have?

Most modern cars are fitted with twin hydraulic circuits, with two master cylinders in tandem, in case one should fail.

What does it mean when your brake pedal goes all the way to the floor?

One of the most common reasons for your brakes touching the floor would be an issue with your brake fluid. Your fluid being low or air reaching the brake line will prevent the fluid from flowing properly, resulting in a spongy pedal. A bad brake booster is another common cause for a malfunctioning pedal.

Can a master cylinder fail without leaking?

Yes master cylinders can fail without leakage, the clutch master cylinder has a piston inside and there are separate channels for hi-pressure line and return(low pressure) line and their location in the cylinder differs for manufacturers.

Do I need a new master cylinder?

If you notice brake fluid leaking from the back of the cylinder against the firewall or brake booster, or can see it leaking down the firewall on the inside of the car, it's definitely time to have the master cylinder replaced.

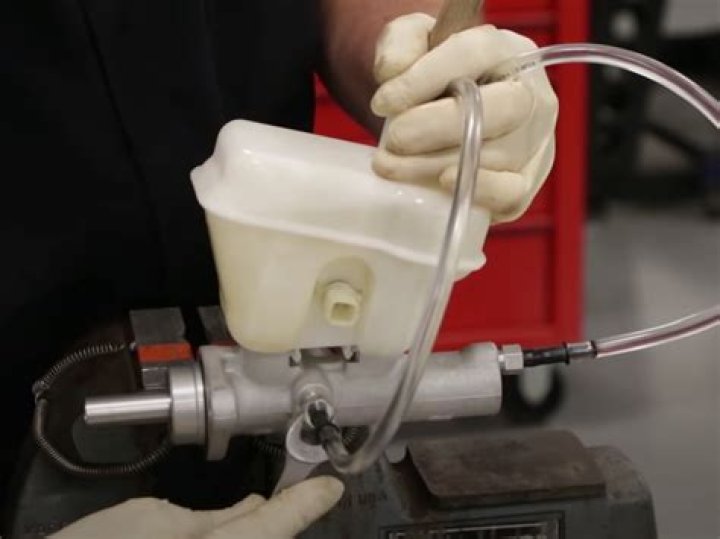

Can you bench bleed a master cylinder on the car?

Possible in the car but not easy. You need to get the MC level for fluid flow and get to the piston rod push point, taking it off the booster. Trying to hold it level and push the piston along with installing the tubes to recirculate the fluid etc - take it to the vise.

Can you gravity bleed a master cylinder?

Bleeding brakes by gravity

Then you can let gravity do the bleeding for you. This method works for nearly all modern cars, as long as the master cylinder is up high on the firewall, above the level of the wheels. All you have to do is fill up the master cylinder reservoir with fresh fluid.

What happens if you dont bleed master cylinder?

To put it simply, bleeding the brakes is the process of pushing fluid through a hydraulic brake system to ensure all air bubbles are removed. If brakes aren't bled and air bubbles are trapped within the brake fluid, hydraulic pressure is greatly reduced, making the brakes less efficient.

Can you replace master cylinder seals?

Yes, seals can be replaced. Most brake master cylinders can be overhauled, depending on the model kits are often available with replacement seals, springs and the like.

How do you disassemble a brake master cylinder?

How to dismantle a brake pump

1. Separate the gasket and remove the plugs.
2. Remove the washer and take off the clamping ring.
3. Remove the piston and parts.
4. Press the inner piston to extract the pin and remove the piston.
5. Remove the piston parts.

How do you bleed a master cylinder?

Bleeding the Master Cylinder

1. Remove the master cylinder cover and top off the reservoir with fresh brake fluid. ...
2. Attach a length of clear plastic tubing to the bleeder valve on the master cylinder.
3. Immerse the other end of the clear plastic tube in a plastic or glass container half full with fresh brake fluid.

Can you damage a master cylinder?

The unused area of the master cylinder bore accumulates with sludge and corrosion over time. (See Figure 71.1) This buildup is accelerated by a lack of periodic brake fluid flushing. If the brake pedal travel is great enough to push the primary cup seals into the unused area of the bore cup seal damage could occur.

Can a master cylinder cause brakes to stick?

Yes, a master cylinder failure can cause your master power brakes to stick. Normally, your master cylinder is filled with brake fluid. When you press the brake pedal, the hydraulic pressure in your brake system increases, which forces the calipers to grab the rotor or the shoes to engage the brake drums.
