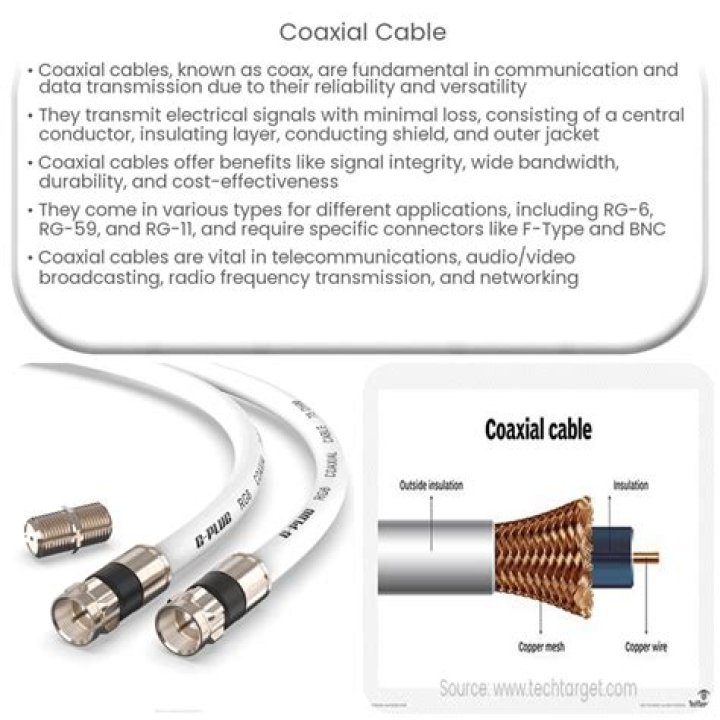

What's in a coaxial cable?

Coaxial cable works by carrying data in the centre conductor, while the surrounding layers of shielding stop any signal loss (also called attenuation loss) and help reduce EMI. The first layer, called the dielectric, provides distance between the core conductor and the outer layers, as well as some insulation.

What is a coaxial cable made up of?

Coaxial cable conducts electrical signal using an inner conductor (usually a solid copper, stranded copper or copper plated steel wire) surrounded by an insulating layer and all enclosed by a shield, typically one to four layers of woven metallic braid and metallic tape.

Is a coax cable the same as a TV cable?

A coaxial cable, also known as a coax cable, is a specialized cable used to send data and radio frequencies without extra electrical interference, known as static. They're commonly used for devices like TVs, the internet, and radios.

Is coax a fiber or copper?

A coax cable is primarily made of copper and transmits data through electricity. The main difference between fiber and coax data connections is that the use of optical fiber enables higher Internet speeds than other forms of communication, such as copper wire, that drastically reduce bandwidth.

Do coaxial cables have electricity?

A coaxial cable is capable of carrying current. If the center conductor of the cable is solid copper, it carries it quite well. Solid copper core RG6 is used to power amplified antennas and satellite dishes all the time. It's not suitable for carrying the amount of current you'd get from a wall outlet, though.

Is it safe to cut a coaxial cable?

A: Cable and phone wires don't carry current, so it's safe to remove them. However, it's critical not to cut into a power line, as you know.

Can a coax cable cause a fire?

A coaxial cable, like those used for your television, phone, or internet, doesn't carry enough voltage to cause a fire on its own. However, if it's cut and a phone call comes in, it could produce a spark that may catch on any nearby flammable materials.

Is coaxial immune to EMI?

Explanation. The correct answer is coaxial cable. It has a consisting of braided wires, metal foil, or a combination of both. Because of this shield, coax is highly resistant to electromagnetic interference (EMI).

Which is faster coax or Ethernet?

Re: COAX VS ETHERNET

The LAN Ethernet connections support 10/100/1000 Mbps. The 802.11ac wireless connection supports up to 1300 Mbps and the 802.11n supports up to 450 Mbps, depending on signal quality. The Coax (MoCA 2.0) connection supports 700 Mbps.

Do I need coax cable for Wi-Fi?

Q: Do you need a coax cable for internet? If you have cable internet, then yes, you do need a coax (or coaxial) cable to connect to the internet. Your internet provider should give you one with your modem, but if you're missing one, you can find them for pretty cheap on Amazon.

What can I use if I don't have a coax cable outlet?

Without a coax outlet, you can use a fiber optic outlet instead.

What are the 4 types of coaxial cable?

Coaxial Cable Types

• RF vs RG Coaxial Cable Types. RF and RG coaxial cable types are each designations from the early days of cable TV and radio transmissions. ...
• RF. RF coaxial cables are utilized to conduct radio frequency signals. ...
• RG-6. ...
• RG-59. ...
• RG-11. ...
• BNC. ...
• TNC. ...
• SMB.

Does it matter what coaxial cable I use for internet?

Does It Matter What Coaxial Cable I Use for the Internet. Yes. A poor quality coaxial cable can cause errors – and even let you have a bad connection.

Is coax a copper cable?

Coaxial cable is a type of copper cable specially built with a metal shield and other components engineered to block signal interference. It is primarily used by cable TV companies to connect their satellite antenna facilities to customer homes and businesses.

What is the core of a coax cable?

2. How Do Coaxial Cables Work? Coaxial cables carry a signal through the copper or copper-coated steel inner core. The outer core is a thin sheath or braided copper mesh that acts as the ground and dissipates stray interference.

Why is Cat 5 twisted?

The Category 5 cable consists of 8 conductors, creating 4 pairs of wires. Each pair is created by twisting the two wires around each other along the full length of the cable. This is done in order to eliminate crosstalk and any other type of interference the cable might pick up from near by electrical sources.

Can you convert a coaxial cable to Ethernet?

You can convert your coaxial cable TV wiring in your home to an Ethernet network backbone, making your Internet and WiFi connection faster and more reliable. Coaxial cable is present in 90% of homes in the US.

Can an old coaxial cable slow Internet?

So, the long answer made short is that no, coaxial cable does not slow down your Internet. It can be leveraged to vastly improve your Internet. You can enhance your Wi-Fi connection in every corner of your home with HT-EM4 MoCA adapters.

Can Ethernet run over coax?

Ethernet over coaxial (MoCA) is a network technology that uses your existing coaxial TV wiring in your home to create an extremely fast and reliable network backbone for internet and home networking connections. Other things you need to know about MoCA networks are: Coax wiring is likely already installed in your home.

Is twisted pair cable more immune to EMI than coaxial?

When compared to twisted-pair, coaxial cable is the better choice even though it costs more. It is a standard technology that resists rough treatment and EMI. Although more resistant, it is still susceptible to EMI and eavesdropping.

What is the top speed of UTP cable?

Although UTP was once considered to be slower at transmitting data than other types of cable, this is no longer true. In fact, UTP is considered the fastest copper-based medium today. The following summarizes the features of UTP cable: Speed and throughput—10 to 1000 Mbps.

Can a cable cord shock you?

Safe Up To 50V

Any device or cable running at or below 50V likely won't cause any harm or give you a strong electrical shock. However, if the system is not installed correctly, you could have high currents on your cables. Also, some old-style televisions, like Cathode Ray Tube (CRT) TV's have voltages around 25,000V.

Does coax cable carry voltage?

This doesn't mean that you can't cut into the cable as the voltage induced onto a coax cable from a TV aerial is very, very low. To give you an idea TV signal level of around 60dBµV is equal to 1mV. This is one thousandth of a volt which you're not going to feel if you touch it and will not cause you any harm.

Will a cut wire start a fire?

While cutting a live wire will likely trip the circuit breaker, there are other significant hazards. The sudden short caused by cutting live wires can cause sparks which could result in a fire or it can damage other electrical components which themselves could cause fires at unpredictable times.
