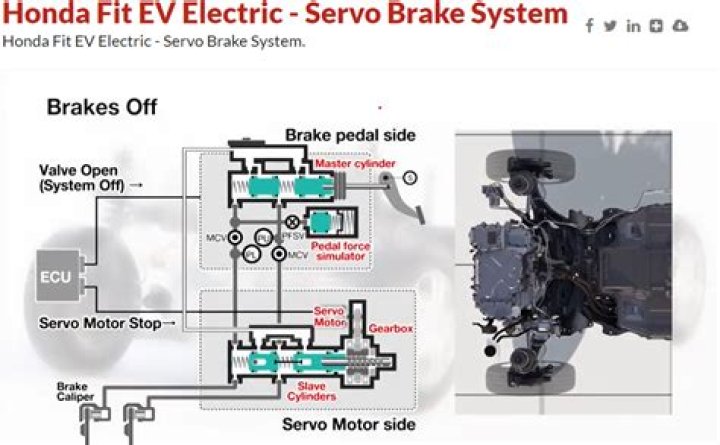

What are electro servo brakes?

The electric servo brake system is made up of highly accurate braking pressure control that functions cooperatively with regenerative brakes together with a structure in which pedal force is not influenced by braking pressure control.

How does a servo brake system work?

A brake booster, also known as a 'brake servo' or 'vacuum booster', does exactly as the name suggests, it helps to 'boost' the performance of the brakes. A brake booster makes it easier for the driver to brake by increasing the force exerted without the need for additional force applied on the foot pedal.

Do electric cars have servo brakes?

Volkswagen has developed a special electromechanical brake servo for its electric cars. This optimises the driver's braking force in the same way that brake servos do in conventional cars.

What are electro-hydraulic brakes?

Robert Bosch has introduced an electro-hydraulic brake system that is a major step toward electronic brake-by-wire. The system translates the pressure of a driver's foot on the brake pedal into electrical signals that control a central hydraulic unit.

What is the difference between electric and electrohydraulic brake by wire systems?

Electromechanical Systems Are Truly Brake-by-Wire

Unlike electro-hydraulic brakes, the components in an electromechanical system are electronic. The calipers have electronic actuators instead of hydraulic secondary cylinders, and everything is governed by a control unit instead of a high-pressure primary cylinder.

Is Tesla brake-by-wire?

‍Tesla brakes look and function much like conventional modern car brakes, but there are additional features that set them apart. Tesla uses electric disc brakes made by Brembo for most of its vehicles. Tesla vehicles also use their electric drive motors for braking, as they generate power and slow the car down.

What cars have electronic braking systems?

Brake by wire technology is a type of car braking technology where the brakes are powered and controlled by electricity.
...
6 Cars with Brake By Wire Technology

• #1 – Toyota Prius Hybrid.
• #2 – Lexus RX 400h.
• #3 – Mercedes Benz E.
• #4 – Mercedes Benz SL.
• #5 – Alfa Romeo Giulia.
• #6 – Chevrolet C8 Corvette.

Which component is a part of electro hydraulic brake system?

The new system should have components: brake pedal mechanism, a push rod, a tandem master brake cylinder, an EHBS actuator, a valve control unit, DC motor amplified system with rack-pinion, fuzzy controller and wheel brakes⁷.

Is brake-by-wire safe?

In a brake-by-wire car, some sensors are safety-critical components, and their failure will disrupt the vehicle function and endanger human lives. Two examples are the brake pedal sensors and the wheel speed sensors.

What is brake-by-wire F1?

This means that the drivers left pedal (F1 cars have no clutch pedal) is no longer linked directly to the rear brakes instead it is linked to a computer which then controls the rear brakes.

Is there an electric brake booster?

Electric brake boosters reduce the pedal pressure needed for braking. Boosters are mostly found in electric and hybrid automobiles. The automotive brake booster is an essential component of the vehicle's safety system.

Do electric cars have power brakes?

Electric vehicles (EVs) run primarily off the charge they stored when plugged into an outlet, but use regenerative braking to help top up the battery. In addition to the regenerative system, all electrified vehicles have conventional braking systems as regular vehicles do.

How do power brakes work on EV?

When the driver steps on the brake pedal, the pedal pushes on the push rod of the brake fluid's piston inside the vacuum booster, and it will in turn press the master cylinder's piston to force the brake fluid into the ABS system through the metal pipework.

What is meant by servo?

A servo (servomechanism) is an electromagnetic device that converts electricity into precise controlled motion by use of negative feedback mechanisms. Servos can be used to generate linear or circular motion, depending on their type.

What are non servo brakes?

A non-servo drum brake assembly includes an anchor plate for pivotally mounting adjacent ends of a pair of brake shoes. A hydraulic actuator is engageable with the pair of brake shoes to pivot the same radially outwardly about the anchor plate so as to engage the pair of brake shoes with a rotatable member.

Where would you find the brake servo on a car?

A black metal canister, the brake servo is located at the back of the engine compartment on the driver's side. It sits between the master cylinder and the pedal linkage, connecting the two by means of a rod that is attached to the master cylinder's piston.

Is drive-by-wire better?

The signals from the Throttle Position Sensor and the input from the potentiometer connected to the accelerator pedal, helps the ECU to perform the 'throttling' with greater accuracy. Drive-By-Wire eliminates the need for any mechanical linkages and hence aid in weight savings.

Is steer-by-wire safe?

Steer-By-Wire Safety

The chief customer concern with Steer-By-Wire is the lack of physical linkage. Because there are no mechanical linkages between the driver and the wheels, a controller is used to control the positioning of the motors used to steer the wheels.

Is regenerative braking safe?

Regenerative braking is not by itself sufficient as the sole means of safely bringing a vehicle to a standstill, or slowing it as required, so it must be used in conjunction with another braking system such as friction-based braking.

Are hydraulic bike brakes better?

Hydraulic disc brakes have better modulation and stopping power than mechanical disc brakes, although both disc brake styles vastly outperform rim brakes. Overall, hydraulic disc brakes are superior in terms of performance and efficiency because of the reduced friction by not having a mechanical cable.

What is the difference between hydraulic brakes and air brakes?

In vehicles, there are two types of Breaks, Hydraulic Brake and Air Brake. The Key Difference between Hydraulic Brake and Air Brake is that Hydraulic Brake uses hydraulic fluid or Oil as a medium whereas Air Brake uses compressed air as a medium. Hydraulic brake is also known as Oil break.

What is the difference between hydraulic disc brakes and mechanical?

The main difference between hydraulic and mechanical disc brakes is how force is transmitted from the brake levers on the handlebars to the brake calipers near the hubs. Mechanical disc brakes use a steel cable. Hydraulic disc brakes use a fluid-filled brake line.

Are brakes electronically controlled?

All "brake-by-wire" means is that the braking system is electronically controlled. When you press on the pedal, a position sensor sends the amount of pressure you're applying to a brake control unit, which uses that input to apply pressure to the brakes.

Are car brakes fly by wire?

In the automotive industry, there are three types of brake-by-wire solutions that are advancing braking systems – electro-hydraulic, fully electric, and the third being a combination of the two. The electro-hydraulic system removes the need for a brakebooster.

What cars have steering by wire?

So far, the only production vehicles to feature this technology are the Infiniti Q50 sedan, launched in 2013, and the Infiniti Q60 coupe derived from it (2016). However, they cannot be considered pure steer-by-wire vehicles because they have a mechanical fallback system.
