What causes traceroute to fail?

There are several possible reasons a traceroute fails to reach the target server: The traceroute packets are blocked or rejected by a router in the path. Usually, the router immediately after the last visible hop is the one causing the blockage. Check the routing table and the status of this device.

What can affect traceroute results?

What can affect tracert results? Interpreting tracert outputs. Routes traced can go through many hops and a number of different Internet Service Providers (ISPs), depending on the size of your ISP and the location of the source and destination hosts.

Why is traceroute blocked?

As with ping , traceroute can be blocked by not responding to the protocol/port being used. Traceroute displays the ICMP message's source address as the name of the hop and moves on to the next hop. When the source address finally matches the destination address, traceroute knows that it has reached the destination.

What does it mean when traceroute times out?

A “Request timed out” message at the beginning of a traceroute is very common and can be ignored. This is typically a device that doesn't respond to ICMP or traceroute requests, as shown in Hop 2.

Can firewall block traceroute?

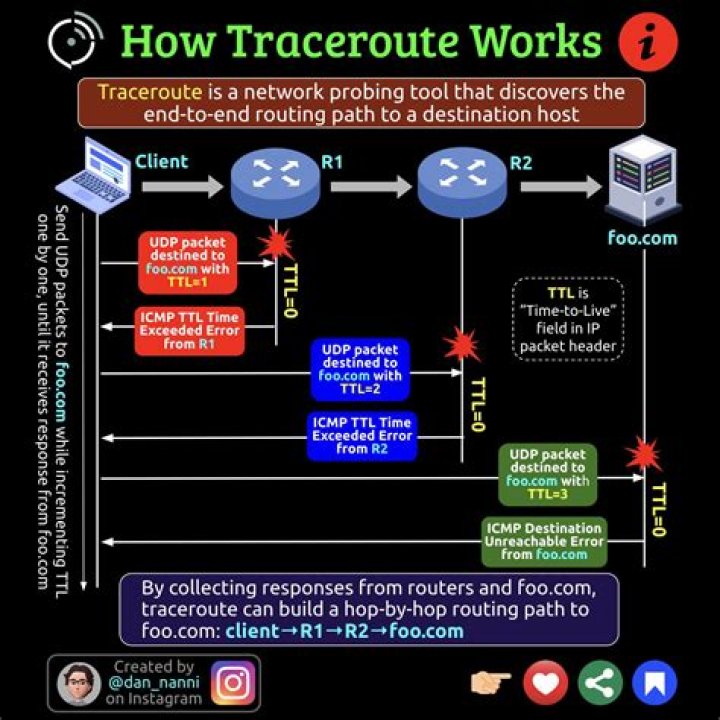

There is no "blocking" of traceroute, tracepath, tracert or whatever the tool gets called. These commands work by setting the TTL/hoplimit of the packet to a specific value and then expect the host to send an ICMP unreachable back if the TTL/hoplimit expired (i.e. decremented to zero).

How do you know if a traceroute is successful?

If the target server is reached, the ICMP Code 0, Echo Reply will be sent and thus Traceroute knows the job is finished. In this case the target server is reached well before the maximum hop counts. So what we saw is a successful traceroute attempt.

Why does tracert only show 1 hop?

If you only see one hop you are on the same network as the host you are tracing. Check the output of ipconfig on the host from where you are testing. The host name you are seeing is the reverse DNS entry for this IP. It does not have to match with the name resolution from host name to IP address.

What do traceroute results mean?

A traceroute displays the path that the signal took as it traveled around the Internet to the website. It also displays times which are the response times that occurred at each stop along the route. If there is a connection problem or latency connecting to a site, it will show up in these times.

What does tracert 8.8 8.8 do?

Traceroute tool (ip tracer) allows to detect the route of the ip packets to the given host. Both IPv4 and IPv6 are supported. Traceroute tool displays ip addresses, domains and countries of intermediate hops. If hop did not reply it will be shown as asterisk.

What are the three times in traceroute?

Each line shows the name of the system (as determined from DNS), the system's IP address, and three round trip times in milliseconds. The round trip times (or RTTs) tell us how long it took a packet to get from me to that system and back again, called the latency between the two systems.

Will traceroute work if ping is blocked?

By default traceroute sends UDP packets to track the route to a given host, while ping uses ICMP. But traceroute works processing ICMP packets returned by the routers in the route to the destination host. This means that if you only block outgoing ICMP packets, ping won't work but traceroute will.

Does traceroute use ICMP echo?

Traceroute most commonly uses Internet Control Message Protocol (ICMP) echo packets with variable time to live (TTL) values. The response time of each hop is calculated.

Does traceroute show all hops?

Traceroute will then show you a List of all intermediate jumps (which are all routers the packet has gone through) along with IP Addresses and Latency (delay) Values in Milliseconds for each hop.

How do you improve traceroute?

How to Make Best Use of Traceroute

1. Look for The Obvious. Sometimes a traceroute will immediately reveal where a problem lies in the network, like when it times out on a specific hop and does not recover. ...
2. Don't Focus on Individual RTT Values. ...
3. Find Patterns Over the Entire Report. ...
4. Utilize IP Address and DNS Information.

What is the relationship between ping and traceroute?

The main difference between Ping and Traceroute is that Ping is a quick and easy utility to tell if the specified server is reachable and how long will it take to send and receive data from the server whereas Traceroute finds the exact route taken to reach the server and time taken by each step (hop).

What packets does traceroute use?

A traceroute works by sending Internet Control Message Protocol (ICMP) packets, and every router involved in transferring the data gets these packets. The ICMP packets provide information about whether the routers used in the transmission are able to effectively transfer the data.

How do I run a tracert command?

To use tracert, you must be running Microsoft Windows.

1. Open a Command Prompt. ...
2. In the Command Prompt window, type 'tracert' followed by the destination, either an IP Address or a Domain Name, and press Enter. ...
3. The command will return output indicating the hops discovered and time (in milliseconds) for each hop.

What Does stars mean in traceroute?

If the traceroute command completes successfully and you see these stars, most likely the device that was hit was not configured to reply to ICMP/UDP traffic. This result does not mean that the traffic wasn't passed. The second possibility is that the packets were dropped due to an issue on the network.

How do I run a traceroute in Windows 10?

How to Run a Traceroute on a Windows 10 Computer

1. Open the Windows search box. ...
2. Then type CMD in the search bar and click Open.
3. Next, type tracert followed by a space and then an IP address or URL. ...
4. Finally, press Enter on your keyboard and wait for the traceroute to finish.

What does 3 asterisks mean in traceroute?

Three probes (change with -q flag) are sent at each ttl setting and a line is printed showing the ttl, address of the gateway and round trip time of each probe( so three * ). If there is no response within a 5 sec. timeout interval (changed with the -w flag), a "*" is printed for that probe.

What is the difference between traceroute and Tracepath?

Tracepath and traceroute are very similiar network mapping commands. The main difference between the two is that you need to be a superuser on a Linux computer to use traceroute, whereas tracepath can be run without this credential. On a Windows PC, any user with command line access can use both diagnostic tools.

What is traceroute most commonly used for?

Traceroute – The traceroute command is used to determine the path between two connections. Often a connection to another device will have to go through multiple routers. The traceroute command will return the names or IP addresses of all the routers between two devices.

What is PathPing command used for?

The PathPing command is a command-line network utility supplied in Windows 2000 and beyond that combines the functionality of ping with that of tracert. It is used to locate spots that have network latency and network loss.

What is the hops in nmap?

Brief introduction to Traceroute and Traceroute with Nmap

The transference of the packets between routing devices is called “hop”, so if I ping a website the first hop will be my local router and next hops will be each router through which the packets pass until reaching the web server.

Why does traceroute take so long?

It starts with a TTL of 1, waits for a timeout, then reports where the timeout error came from, and repeats the process, increasing the TTL by one each time. So basically it's a long process because it's waiting for timeouts for each hop on the way." Actually the traceroute can be ICMP or a serie of UDP packets.
