What happens when a master cylinder goes out?

A problem with the brake master cylinder will cause the brake pedal to behave abnormally. All the pressure in the braking system is generated from the master cylinder. If it malfunctions, the cylinder will not distribute pressure properly, and the pedal will be affected.

What happens if you drive with a bad master cylinder?

What Happens If You Drive With A Bad Master Cylinder? The brake fluid in a bad master cylinder will leak out due to internal damage, and your brake pedal will sink to the floor, so you won't be able to brake if the master cylinder is bad. Without brakes, driving your vehicle is unsafe.

How do you test a brake master cylinder?

Use a screwdriver to press and hold the plunger in the rear of the master cylinder. The plunger should be very firm, if not immovable, past a few millimeters. If the plunger keeps moving in, this indicates a fault of at least one of the internal seals.

How do you know if you need to replace your master cylinder?

Some of the symptoms of master cylinder failure you should be on the lookout for include:

1. Check Engine Light Indicates. The check engine light has sensors that detect any part of the engine that has malfunctioned. ...
2. The Brake Pedal Behaves Abnormally. ...
3. Brake Fluid Leakage. ...
4. Brake Fluid Gets Contaminated.

How do u know if master cylinder is bad?

If the fluid is leaking past the seals inside the cylinder, the pedal may feel firm for a moment but won't hold steady; it'll feel spongy and keep sinking towards the floor. When a master cylinder begins to fail, sometimes the brakes will feel fine one second and lose braking power the next giving you this effect.

Can you drive without master cylinder?

The brake master cylinder will do this no matter if your vehicle is using disc brakes or drum brakes. There is no way any braking system could exist without a brake master cylinder.

How much does it cost for a master cylinder to be replaced?

The Best in Auto Repair

The average cost for brake master cylinder replacement is between $403 and $506. Labor costs are estimated between $136 and $172 while parts are priced between $267 and $334. This range does not include taxes and fees, and does not factor in your specific vehicle or unique location.

Can air get trapped in master cylinder?

If air enters the left front or right rear wheel circuits it can migrate to the high point. If the vehicle is experiencing a low and/ or spongy brake pedal and the master cylinder is mounted at an angle, trapped air might be the cause. use the steps below to check for trapped air.

How do I know if I have air in my master cylinder?

Symptoms that can indicate you have air in your brake lines include the following:

1. Brake pedal feels spongy when you press down.
2. Brakes feel soft and not as effective as they usually are.
3. Brake pedal depressed too much or goes to the floor.

Can I bleed my master cylinder on the car?

Bench bleeding is especially useful with new master cylinders. It's a great way to get air out of the cylinder itself and begin your brake bleeding process quickly and easily. You can get bench bleeding kits from any number of places, but we picked ours up at Classic Performance Parts when obtaining a brake kit.

Why is my brake pedal soft after bleeding?

The most common cause of spongy brakes after bleeding is contaminated brake fluid. Usual contaminates include air or moisture in the system. The most common causes include: Brake bleeding technique.

Is it hard to change a master cylinder?

Replacing a brake master cylinder is not a difficult task to do in your own garage for most vehicle models. But you need to prepare. Sometimes, you'll need to remove some components, hoses, or wires out of the way. Make sure to keep track of where they go, along with their respective fasteners, so you don't lose them.

How long does a master cylinder last?

Like all mechanical and hydraulic devices, the master cylinder will eventually wear out. Depending on use, the typical master cylinder might last 60,000 to 200,000 miles. Highway commuters use the brakes less often than city taxis, for example, so their master cylinders tend to last longer.

Can you damage a master cylinder?

The unused area of the master cylinder bore accumulates with sludge and corrosion over time. (See Figure 71.1) This buildup is accelerated by a lack of periodic brake fluid flushing. If the brake pedal travel is great enough to push the primary cup seals into the unused area of the bore cup seal damage could occur.

Can a master cylinder fail without leaking?

Yes master cylinders can fail without leakage, the clutch master cylinder has a piston inside and there are separate channels for hi-pressure line and return(low pressure) line and their location in the cylinder differs for manufacturers.

Do you need to bleed brakes after changing master cylinder?

The only way to be sure your system doesn't have an air bubble is to bleed your brakes after repairing the leak. If you're replacing worn brake pads, which can cause air to enter the master cylinder. Braking with worn pads requires more brake fluid, which drains the reservoir and creates space for air.

Can you change master cylinder without bleeding brakes?

When the brake pedal is depressed, a push rod activates the master cylinder and pushes brake fluid to all four brakes at each corner of the vehicle. When the master cylinder requires replacement, it must be removed from the vehicle, which means the brake lines must be disconnected from it.

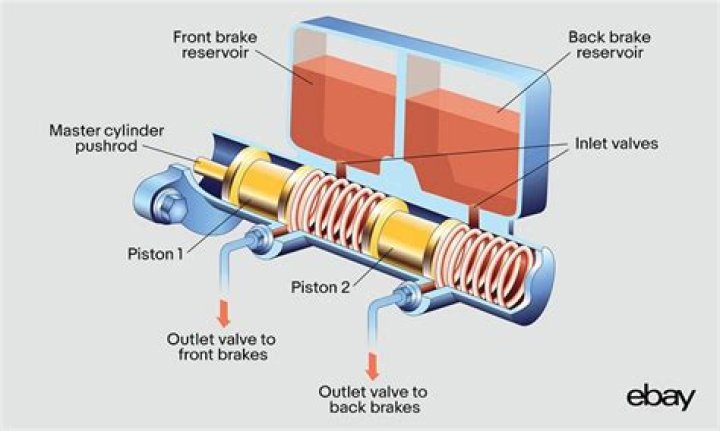

What is the function of master cylinder?

In automotive engineering, the master cylinder is a control device that converts force (commonly from a driver's foot) into hydraulic pressure. This device controls slave cylinders located at the other end of the hydraulic brake system.

Why would my brake pedal go to the floor?

One of the most common reasons for your brakes touching the floor would be an issue with your brake fluid. Your fluid being low or air reaching the brake line will prevent the fluid from flowing properly, resulting in a spongy pedal. A bad brake booster is another common cause for a malfunctioning pedal.

Why is my master cylinder not building pressure?

The most common issue is the rod that comes out of the front of the brake booster and pushes the piston of the master cylinder. (NOT the booster rod that goes to the pedal, the opposite side.) This rod is often slightly too long and causes a pre load on the master cylinder.

Why is there no pressure in my brake pedal?

Typically, a problem with the brake lines is due to a leak somewhere in the system which is causing brake fluid loss or there is a bad seal in the master cylinder. There is also the possibility that air has gotten into the brake lines.

How do I make my brake pedal firmer?

Air in the System

The most common reason for a soft brake pedal is simply air still in the system. The easiest way to diagnose this problem is to pump the brake pedal gently a few times. In doing so, the pedal should become firmer with each gentle press of the pedal.

What happens if you don't bleed your brakes properly?

What happens when air gets into the brake lines and if you don't bleed the brake system? You won't have responsive brakes. You will experience these issues: Spongy brakes.

How do you get air out of a master cylinder?

Bleeding the Master Cylinder

1. Remove the master cylinder cover and top off the reservoir with fresh brake fluid. ...
2. Attach a length of clear plastic tubing to the bleeder valve on the master cylinder.
3. Immerse the other end of the clear plastic tube in a plastic or glass container half full with fresh brake fluid.
