What is Flag register?

The FLAGS register is the status register that contains the current state of a CPU. The size and meanings of the flag bits are architecture dependent. It usually reflects the result of arithmetic operations as well as information about restrictions placed on the CPU operation at the current time.

What is flag register in 8085 microprocessor?

Prerequisite – Registers of 8085 microprocessor The Flag register is a Special Purpose Register. Depending upon the value of result after any arithmetic and logical operation the flag bits become set (1) or reset (0). In 8085 microprocessor, flag register consists of 8 bits and only 5 of them are useful.

What are the types of flag register?

And they are:

• Carry flag (Cy),
• Auxiliary carry flag (AC),
• Sign flag (S),
• Parity flag (P), and.
• Zero flag (Z).

What is flag in status register?

The status register lets an instruction take action contingent on the outcome of a previous instruction. Typically, flags in the status register are modified as effects of arithmetic and bit manipulation operations. For example, a Z bit may be set if the result of the operation is zero and cleared if it is nonzero.

How many flags are there in flag register?

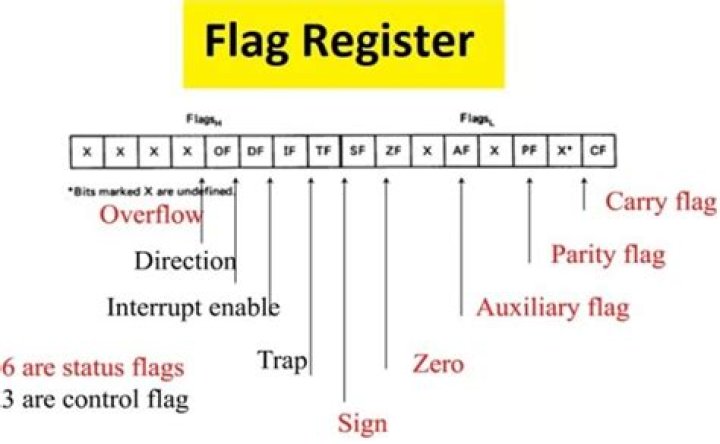

There are total 9 flags in 8086 and the flag register is divided into two types: (a) Status Flags – There are 6 flag registers in 8086 microprocessor which become set(1) or reset(0) depending upon condition after either 8-bit or 16-bit operation. These flags are conditional/status flags.

How does the carry flag work?

The way the carry flag works is based on how addition and subtraction happens with binary numbers. Changes to the leftmost bit indicate a kind of turnover of a binary number set. For instance, when a binary sequence of 1111 gets 0001 added to it, and becomes 0000, the carry flag is turned on.

What are flags in microcontroller?

The Flag register is a Special Purpose Register which shows the status of the task. This is an 8-bit register but the only 5bit is used for the operation. The flag becomes set or reset after arithmetic and logical operation.

What is SF in assembly?

SF – Sign Flag – set if a result is negative (i.e. MSB of the result is 1)

What is HL pair?

(D) H-L pair is an exceptional pair which is used as a memory pointer to locate an address L X H 2000H. H recognize H-L pair of general purpose register. Load 16 bit data immediately in H-L pair it means 2000H is the location of memory where data is stored and it is recall by an instruction MOV A M.

What is flag data?

A flag is one or more data bits used to store binary values as specific program structure indicators. A flag is a component of a programming language's data structure.

What is register in microprocessor?

A processor register (CPU register) is one of a small set of data holding places that are part of the computer processor. A register may hold an instruction, a storage address, or any kind of data (such as a bit sequence or individual characters). Some instructions specify registers as part of the instruction.

What is a flag in coding?

In programming, a flag is a predefined bit or bit sequence that holds a binary value. Typically, a program uses a flag to remember something or to leave a sign for another program.

Why are flags needed in microprocessors?

A microprocessor is an integrated circuit that can be programmed to process data and send messages and directions to other electronic systems. They are the main features of computer processing systems. Flags are an important component of microprocessors as they register the outcomes of calculations and actions.

What are flags in 8085 enlist the different flags provided by 8085 microprocessor also draw flag register diagram?

4) 8085 has five flags. Sign flag, Zero flag, Auxiliary Carry flag, Parity flag and Carry flag. A 8-bit a register is used to represent five flags as shown in the following figure: Where, S - Sign flag, Z - Zero flag, Ac- Auxiliary Carry flag, P - Parity flag, Cy-Carry flag.

What is CF flag in assembly?

The CF (carry flag) tells whether a bit was carried out of the word entirely (e.g. into bit 33 or bit 65). If numbers are interpreted as unsigned, carry flag means that addition overflowed, and the result is too large to fit in a machine word. The overflow flag is irrelevant.

What is flag in C?

A "flag" variable is simply a boolean variable whose contents is "true" or "false". You can use either the bool type with true or false , or an integer variable with zero for "false" and non-zero for "true".

What is Ja Assembly?

JA is used for jumping if the last "flag changing" instruction was on unsigned numbers. but on the other hand, JG is used for jumping if the last "flag changing" instruction was on signed numbers.

What is the importance of flag in 8051 microcontroller?

Like any other microprocessor, the 8051 has a flag register to indicate arithmetic conditions such as the carry bit. The flag register in the 8051 is called the program status word (PSW) register.

What is the difference between overflow and carry flag?

In processors, overflow flag indicates that sign bit has been changed during adding or subtracting operations But carry flag means adding or subtracting two registers has carry or borrow bit.

What is the difference between auxiliary carry flag and carry flag?

The auxiliary carry flag AF watches for a 4-bit (nibble) carry, while the common carry flag CF watches for a carry-out from the MSB of the operand size.

How is carry flag calculated?

The carry flag is set if the addition of two numbers causes a carry out of the most significant (leftmost) bits added. 2. The carry (borrow) flag is also set if the subtraction of two numbers requires a borrow into the most significant (leftmost) bits subtracted.

What is flag in assembly language?

The Sign flag indicates that an operation produced a negative result. If the most significant bit of the destination operand is set, the Sign flag is set. • The Parity flag counts the number of 1 bits in the least significant byte of the destination operand.

Why flag is used in program?

Flag variable is used as a signal in programming to let the program know that a certain condition has met. It usually acts as a boolean variable indicating a condition to be either true or false.
