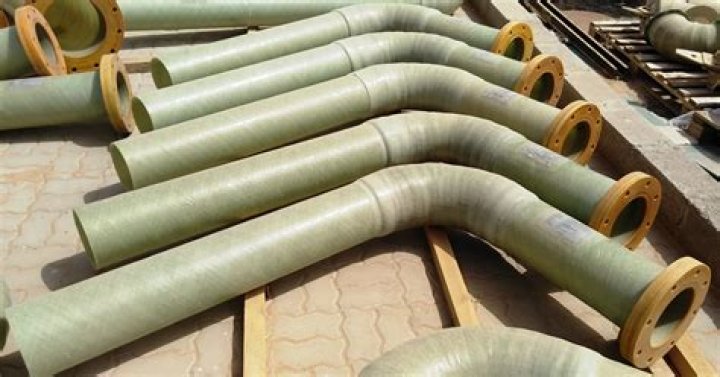

What is GRE piping?

Glass reinforced epoxy (GRE) piping systems are used for demanding clients operating in the Marine & Offshore, Oil & Gas and (Petro)chemical markets. GRE is often used for utilities such as cooling and fire-fighting systems where the requirements for reliability and mechanical strength are high.

What is the difference between GRE and GRP pipes?

The main difference between the GRE and GRP is the matrix material resin used for bonding the glass fiber. GRP pipes use Isophthalic Resin while GRE pipes use epoxy resin. It is used as a lining material in sewage effluent tanks because of its resistance to chemicals and corrosion.

What is the difference between FRP and GRE pipes?

FRP is composed of matrix materials and reinforced materials. Due to the different matrix materials, some are called GRE, and some are called GRP. The matrix material is generally resin, and the reinforcement material is glass fiber.

What are conductive GRE pipe?

Glass Reinforced Epoxy or GRE pipes are a valid alternative to carbon steel pipes, especially for corrosive, aggressive, and normal environments. GRE pipe technology is based on the continuous Filament Winding process using high strength fiberglass (E-glass) and amine cured epoxy resin as basic material.

How GRE pipes are made?

The inner liner of these pipes are made by resin rich layer reinforced with C-glass or synthetic veil . This process ensures chemical resistance, temperature resistance and pipe water tightness. The hardener system and resin is selected considering the combination of properties of the end product.

How do I fix my GRE pipe?

Commence Pipe Leak Repair Works

Mix the epoxy stick and tighten the pipe clip beside the pipe leak. Slide the stainless steel pipe clip and tighten the adjustable fastener of stainless steel clip slightly onto the leak location. The leak should be reduced or stopped completely.

How do you connect GRE pipes?

GRP pipes are typically joined by using GRP double-bell couplings. Pipes and couplings can be delivered to site seperately or pipes can be delivered as one-end coupling mounted. Elastomeric gaskets are used on GRP couplings for sealing. Gaskets are placed in precision-machined grooves in each end of the coupling.

What is fiberglass pipe?

Fiberglass reinforced pipes (FRP) are used in trenchless installation of pipelines because it is lightweight, temperature resistant, strong, and highly resistant to chemicals and corrosion. FRP basically consists of fiberglass and thermosetting resins.

What is Bondstrand pipe?

Bondstrand 4000 piping system is designed for aggressive chemical service where epoxy products are suited (solvents, alkalis and non-oxidizing acids). Bondstrand 4000 piping system is designed for aggressive chemical service where epoxy products are suited (solvents, alkalis and non-oxidizing acids).

What is glass reinforced epoxy?

Glass reinforced epoxy (GRE) belongs to a group of fiber-reinforced plastics. It is a composite material consisting of an epoxy resin, used as the base polymer matrix, reinforced with glass fibers.

What is the difference between RTR and GRP pipe?

If the resin used in GRP is polyester, then it will be named as GRUP. Epoxy, vinyl ester, and polyester are thermosetting resin. So the other name for GRP is reinforced thermosetting resin plastic (RTR or RTRP). To conclude, GRE, GRVE, and GRUP are different types of GRP, and RTR is a different variation name of GRP.

What is GRVE material?

Glass-fibre reinforced vinyl ester (GRVE) piping systems are used for end users operating in the Marine and (Petro)chemical markets. GRVE is often used for utility systems such as cooling and fire-fighting water systems where the requirements for reliability and corrosion resistance are high.

What FRP means?

What Does Fiber-reinforced Plastic (FRP) Mean? Fiber-reinforced plastic (FRP) is a composite material made up of polymer that is supported with fibers for added strength.

What is GRP pipe used for?

GRP (also referred to as GRE - glass reinforced epoxy) pipes are used where extra stiffness and strength is required. Typical applications are: Fire fighting mains pipes. Cooling water lines.

What is the full form of MS pipe?

MS Pipe, MS Tube refers to Mild Steel Pipe or Mild Steel Tubes used for industrial and domestic use. Use : Structure.

What is HDPE pipes used for?

High density polyethylene (HDPE) piping systems have been used for municipal and industrial water applications for over 50 years. Within PPI's Building & Construction Division, HDPE pipes are used for ground source geothermal applications, also known as earth energy or geoexchange systems.

What is ASTM D2996?

ASTM D2996 STANDARD FOR FILAMENT-WOUND FIBERGLASS PIPE

This specification covers machine-made reinforced thermosetting resin pressure pipe (RTRP) manufactured by the filament winding process.

How long does fiberglass pipe last?

The correct installation of a fiberglass tank lining system can prevent leaks, pitting, and corrosion for about one to two decades. In case there are perforations in steel tank bottoms, the lining system provides enough strength to eliminate them, thereby minimizing external corrosions.

How strong is fiberglass pipe?

These pipes are resistant to temperatures up to 225° F (107.2° C) when used with oil or gas, and up to 275° F (135° C) for chemical/industrial applications. The maximum pressure for these pipes and fittings is 4000 psi (275 bar).

What is hobas pipe?

HOBAS (CCFRPM) Pipes are centrifugally cast, glass-fiber-reinforced, polymer mortar. These large diameter pipes are ideally suited for nearly all corrosive piping applications. HOBAS pipes may be installed by a variety of installation methods.

What is carbon steel pipe?

Carbon steel piping is a durable material made from carbon steel, a steel alloy with iron and carbon. Because of its strength and ability to withstand stress, carbon steel pipe is used in a variety of heavy-duty industries like infrastructure, ships, distillers, and chemical fertilizer equipment.

What is bell and spigot?

A form of joint used on pipes that have an enlarged diameter or bell at one end and a spigot at the other that fits into and is laid in the bell. The joint is then made tight by lead, cement, rubber O-ring, or other jointing compounds or materials.

How do you laminate GRP pipes?

Internal Lamination

1. Measure a length of 50 mm from the end of each grp pipe.
2. Grind the above area to remove the internal liner of the pipe.
3. Cut several pieces of woven roving glass 270/100 with equal length.
4. Mix the right quantity of resin and hardener.
5. Wet the surface area of internal layer with mixture.

Is FRP same as fibreglass?

FRP stands for fiber-reinforced plastic. Generally, it's a term used for our type of fiberglass—grating, structurals, and the like. If you do a Google search for fiberglass products, you may find the terms “fiberglass and “FRP” used interchangeably.
