What is mylar capacitor?

Mylar Capacitors a.k.a polyester capacitors (PET) are special type of capacitors with some unique features compared with ceramic and electrolytic capacitor. They can withstand high voltages in a relatively small package and provides high resistance against moisture.

What are Mylar capacitor used for?

Mylar Capacitors

Another type of film capacitor, mylar caps have the great properties of high heat and humidity resistance. Because of this, they are able to be used in harsher environment applications like power converters, lighting, timing and communications.

Do Mylar capacitors have polarity?

Ceramic, mylar, plastic film, and air capacitors do not have polarity markings, because those types are nonpolarized (they are not polarity sensitive).

What are the 4 types of capacitors?

The different types of capacitors are following.

• Electrolytic Capacitor.
• Mica Capacitor.
• Paper Capacitor.
• Film Capacitor.
• Non-Polarized Capacitor.
• Ceramic Capacitor.

Should Mylar capacitors be replaced?

The ceramic and mylar caps are unlikely to have deteriorated (unless subjected to overvoltage). Don't replace them with electrolytics. Replace the faulty electrolytic caps first and see what happens.

What are the 2 types of capacitor?

Capacitors are divided into two mechanical groups: Fixed capacitors with fixed capacitance values and variable capacitors with variable (trimmer) or adjustable (tunable) capacitance values. The most important group is the fixed capacitors. Many got their names from the dielectric.

What is the best type of capacitor?

Class 1 ceramic capacitors offer the highest stability and lowest losses. They have high tolerance and accuracy and are more stable with changes in voltage and temperature. Class 1 capacitors are suitable for use as oscillators, filters, and demanding audio applications.

Which capacitor is used for high frequency?

Mica capacitors are low loss capacitors that are used where the high frequency is required, and their value doesn't change much over time. The capacitance of mica capacitors ranges from 10 pF to 5000 pF.

How do you identify a mylar capacitor?

The Mylar Capacitors has no polarity similar to the ceramic capacitors. Meaning they can be connected in any direction. They are breadboard friendly and can be easily used on a perf board also. The symbol for mylar capacitor is just two plain lines as shown above since they do not have any polarity.

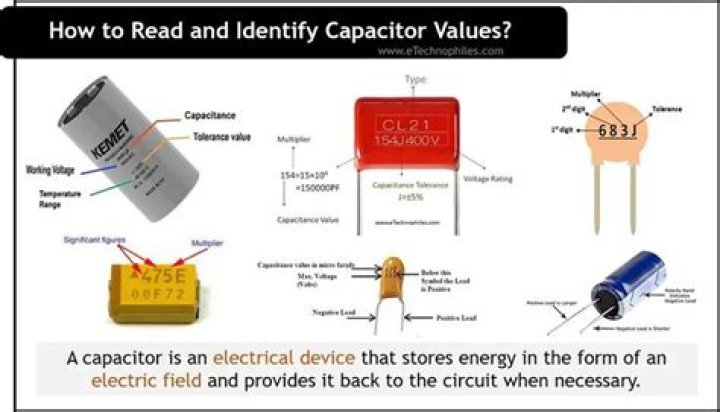

How do you read a mylar capacitor?

The first two numbers represent the value in picofarads, while the third number is the number of zeroes to be added to the first two. For example, a 4.7 μF capacitor with a voltage rating of 25 volts would bear the marking E476. This translates to 47000000 pF = 47000 nF = 47 μF.

What are polyester capacitors used for?

Polyester film capacitors are typically used as general purpose capacitors so can be used in a variety of products. They're low cost, small and most have a high capacitance value. Typically they're used for DC (Direct Current) applications or semi-critical circuits.

Are Mylar capacitors good for audio?

Polyester (Mylar) capacitors make a significant sound improvement and are the minimum quality audio capacitors that should be used in the audio signal path. Better are polypropylene capacitors, and even better are polycarbonate capacitors when available.

What is the difference between film capacitor and ceramic capacitor?

While the film capacitors use thin sheets of plastic films, ceramic capacitors have sheets made out of ceramic material as the dielectric. Both of them are bipolar in nature. The electrolytic capacitors, on the other hand, have oxides acting as dielectric and are polar in nature.

What is the difference between ceramic and electrolytic capacitor?

The main difference between ceramic and electrolytic capacitor is that, in ceramic capacitors, the two conductive plates are separated by a ceramic material whereas, in electrolytic capacitors, the two conductive plates are separated by an electrolyte and a metal oxide layer.

What is the difference between electrolytic capacitor and tantalum capacitor?

The key difference between tantalum and electrolytic capacitor is that tantalum capacitors use a sintered pellet of high purity tantalum powder along with tantalum pentoxide as the dielectric component, whereas electrolytic capacitors are capacitors having an anode or a positive plate made of a metal that can form an ...

Can I use ceramic capacitor instead of electrolytic?

Using both ceramic and electrolytic output capacitors minimizes capacitor impedance across frequency. Ceramic capacitors are best for high frequency and large-value electrolytic capacitors are good for low frequency.

What happens to capacitor at high frequency?

As the frequency increases, the capacitor passes more charge across the plates in a given time resulting in a greater current flow through the capacitor appearing as if the internal impedance of the capacitor has decreased.

How do you know if a capacitor is good?

Use the multimeter and read the voltage on the capacitor leads. The voltage should read near 9 volts. The voltage will discharge rapidly to 0V because the capacitor is discharging through the multimeter. If the capacitor will not retain that voltage, it is defective and should be replaced.

What type of capacitor is best for audio?

The best capacitor types for audio circuits are polystyrene and polypropylene. Polystyrene is the first choice, but are only available in values up to . 001 uF.

How do I choose a capacitor?

For such circuits, careful selection of capacitors should be made considering their dissipation factor (typical loss of energy in percentage), dielectric absorption, leakage current or insulation resistance, and self-inductance. All these losses must be minimized to improve efficiency and battery life of the circuit.

What capacitors are used for?

Capacitors are devices which store electrical charge. They are a basic component of electronics and have a host of various applications. The most common use for capacitors is energy storage. Additional uses include power conditioning, signal coupling or decoupling, electronic noise filtering, and remote sensing.

What is capacitor formula?

The governing equation for capacitor design is: C = εA/d, In this equation, C is capacitance; ε is permittivity, a term for how well dielectric material stores an electric field; A is the parallel plate area; and d is the distance between the two conductive plates.

How capacitors are made?

A capacitor is created out of two metal plates and an insulating material called a dielectric. The metal plates are placed very close to each other, in parallel, but the dielectric sits between them to make sure they don't touch. Your standard capacitor sandwich: two metal plates separated by an insulating dielectric.
