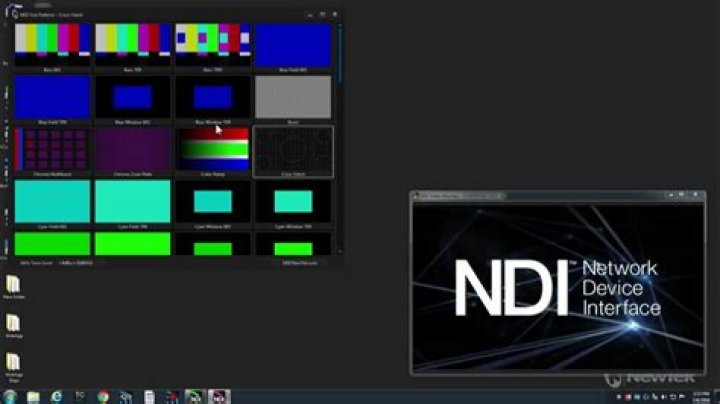

What is NDI mode?

Network Device Interface (NDI) is a royalty-free software specification developed by NewTek to enable video-compatible products to communicate, deliver, and receive high-definition video over a computer network in a high-quality, low-latency manner that is frame accurate and suitable for switching in a live production ...

What is NDI for streaming?

NDI® (Nework Device Interface) is a royalty-free video over IP transmission protocol developed by NewTek. NDI was designed to enable compatible devices to share lightly compressed high-bandwidth video, along with audio and metadata across over IP networks for broadcast contribution and production.

What is NDI on a camera?

NDI stands for “Network Device Interface,” which represents a proprietary set of tools and protocols created by a broadcast manufacturer called NewTek, that facilitate the transmission of high-resolution video over a fast, low-latency network.

What does NDI stand for video?

NDI^® (Network Device Interface), developed by NewTek, is an open standard for connecting video devices over a network.

What is NDI enabled?

Newtek NDI® technology allows you to broadcast the audio and video streams from a Teams meeting to your local network. When using NewTek NDI® technology in a Teams meeting, you will have unique video streams on the network that can be used in your own production.

How do you use NDI?

Getting Started with NewTek NDI

1. Download the NewTek NDI plugin for OBS Studio. You can download the plugin from GitHub here or from the OBS Studio plugin directory here. ...
2. Download and install the Camera for OBS Studio iOS App.
3. Configure the device output. ...
4. Add the NDI input into your OBS Studio Scene.

How do I enable NDI?

In the Teams admin center, go to Meeting policies > Audio & video and select Allow NDI Streaming. After this change has populated, the end user must turn on local streaming for their specific client from Settings > Permissions.

Does NDI work over WiFi?

Does NDI work over WiFi? NDI will work over a wireless network but at a reduced frame rate depending on the bandwidth available. As a general rule of thumb 100Mbit is recommended per 1080p video feed.

How do I connect my camera to NDI?

All you need to do is plug the camera's HDMI output into the converter, and plug the converter into the network. Most of these NDI® encoders use a Power Over Ethernet (PoE) switch. If you do not have a PoE switch, most NDI® encoders can also be powered via a USB connection.

What is the difference between SDI and NDI?

SDI stands for Serial Digital Interface, and the cable itself is capable of sending uncompressed video long distances. NDI is a much newer technology that uses the latest video compression methods to make sending and receiving high-quality video possible over standard computer networks.

Does NDI carry audio?

As well as video data, each NDI stream can carry up to 16 channels of embedded floating point audio and bi-directional data, meaning you can use NDI to control tally lights, PTZ cameras and the like all over one network connection.

How much bandwidth does NDI use?

A typical NDI stream consisting of 1080 60P video yields a data rate up to 150 Mbps per stream. This extremely efficient stream is designed to have very low latency and allows multiple streams to be stacked together on a single Gigabit network.

What do you need for NDI?

Minimum System Requirements

1. 64-bit Microsoft® Windows 7 operating system (OS) or better.
2. Intel i5 Sandy Bridge CPU or better with integrated GPU and support for AVX instructions (NVIDIA discrete GPU, with 2GB video memory or better recommended)
3. Intel Graphics Driver for Windows version 15.40.37.4835 or newer.

Is NDI free?

NDI^® Tools is a free suite of applications designed to introduce you to the world of IP. NDI makes it possible to connect to any device, in any location, anywhere in the world – and transmit live video to wherever you are. NDI systems and sources on your network.

Do you need 2 computers to stream?

Streaming PC

Getting a second PC just to stream may seem ludicrously lavish but broadcasting is such a light lift activity, you don't need much of a PC to make your setup sufficient. CPU, RAM, monitor, keyboard, mouse. That's it. That's what you need for a dedicated streaming machine.

Is there an NDI app for Android?

The NDI^®∣HX Camera application turns any iOS or Android™ mobile device into an IP-ready live video source when connected to the same network as your NDI-compatible receiving device or production system.

How do I use NDI WiFi?

Getting Started with Mobile Cameras Over WiFi. Download and install the NDI|HX® Camera application from the Google Play Store or the Apple App Store. Connect to your LAN via WiFi, and open the application. Compatible computers and devices will automatically discover the output from your smartphone on the network.

How much does NDI cost?

In 2020, the cost is estimated at $0.21 per subject per year searched. KNOWN: This category is also part of the NDI Plus service, but in this search request the researcher knows that all the subjects are deceased. Hence the cost is higher, at a flat rate of $5.00 per subject, regardless of the number of years searched.

How do I get NDI on OBS?

How to enable NDI input in OBS (to get an NDI stream)?

1. Install the obs-ndi plugin to enable NDI in OBS. You can Google “OBS NDI plugin” or click here to download the plugin installer for your platform.
2. Restart your computer, and open OBS again. You will see the new “NDI Source” option when adding a new source:

How do I use NDI on OBS?

Open OBS Studio. Click + to add a new source in the Sources window. Name your NDI Source, make sure the “Make source visible” box is checked, and click OK. When the Properties screen appears select the pull-down menu for Source name and select your NDI camera.

Does Microsoft teams Support NDI?

To enable NDI in the Teams client, open your Teams settings and select Permissions. You will see a new option to enable NDI, as shown below: After enabling NDI in Teams, all meetings that you join will have streams available via NDI over your local network.

Does Microsoft teams have NDI?

Conclusion. Microsoft Teams has a very handy NDI feature that allows you to broadcast your meeting to your local network.

What is OBS system?

Open Broadcaster Software, or OBS, is a free and open source solution for offline video recording and live streaming that is Mac and Windows compliant. With an open canvas approach to video creation this tool can mix a variety of audio and video sources to a single output for creative video and broadcast applications.
