What is periodogram in DSP?
Daniel Moore
Published Jan 15, 2026
In signal processing, a periodogram is an estimate of the spectral density of a signal. The term was coined by Arthur Schuster in 1898. Today, the periodogram is a component of more sophisticated methods (see spectral estimation).
What is meant by periodogram?

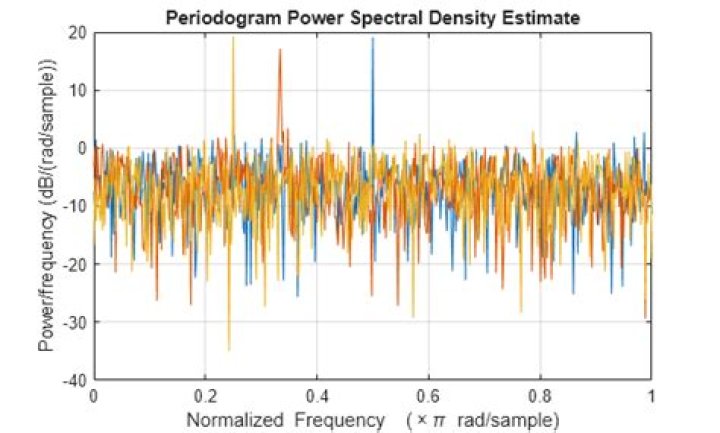

The periodogram is a nonparametric estimate of the power spectral density (PSD) of a wide-sense stationary random process. The periodogram is the Fourier transform of the biased estimate of the autocorrelation sequence. For a signal xn sampled at fs samples per unit time, the periodogram is defined as.
What is Lomb Scargle periodogram?
The Lomb–Scargle periodogram is a method that allows efficient computation of a Fourier-like power spectrum estimator from such unevenly sampled data, resulting in an intuitive means of determining the period of oscillation.
What modified periodogram?
The Modified Periodogram
This has the effect of reducing the height of the sidelobes or spectral leakage. This phenomenon gives rise to the interpretation of sidelobes as spurious frequencies introduced into the signal by the abrupt truncation that occurs when a rectangular window is used.
What is PSD and FFT?
FFTs are great at analyzing vibration when there are a finite number of dominant frequency components; but power spectral densities (PSD) are used to characterize random vibration signals.
17 related questions foundWhat is PSD analysis?
Power-spectral-density (PSD) analysis is a type of frequency-domain analysis in which a structure is subjected to a probabilistic spectrum of harmonic loading to obtain probabilistic distributions for dynamic response measures.
What is a PSD curve?
Power spectral densities (PSD or, as they are often called, acceleration spectral densities or ASD for vibration) are used to quantify and compare different vibration environments.
What is Hamming window in DSP?
The Hamming window is an extension of the Hann window in the sense that it is a raised cosine window of the form. (A3.10) with a corresponding spectrum of the form. (A3.11) The parameter a permits the optimization of the destructive sidelobe cancellation mentioned in the description of the Hann window.
What is Blackman Tukey method?
The Blackman–Tukey transformation (or Blackman–Tukey method) is a digital signal processing method to transform data from the time domain to the frequency domain.
What is PSD power spectral density?
As per its technical definition, power spectral density (PSD) is the energy variation that takes place within a vibrational signal, measured as frequency per unit of mass. In other words, for each frequency, the spectral density function shows whether the energy that is present is higher or lower.
How does a periodogram work?
A periodogram calculates the significance of different frequencies in time-series data to identify any intrinsic periodic signals. A periodogram is similar to the Fourier Transform, but is optimized for unevenly time-sampled data, and for different shapes in periodic signals.
What is the unit of power spectral density?
Power spectral density is commonly expressed in watts per hertz (W/Hz).
What is power spectrum of a signal?
For a given signal, the power spectrum gives a plot of the portion of a signal's power (energy per unit time) falling within given frequency bins. The most common way of generating a power spectrum is by using a discrete Fourier transform, but other techniques such as the maximum entropy method can also be used.
Which methods are used by Blackman and Tukey for the power spectrum estimation?
The correlogram constructs an estimate of the power spectrum using a windowed fast Fourier transforms (FFT) of the autocorrelation function of the time series.
What is filter in DSP?
In the field of signal processing, a filter is a device that suppresses unwanted components or features from a signal. The most commonly used filters are low-pass, high-pass, band-pass and band-stop. Characteristics that describe filter are its type, cutoff frequency, order (steepness).
What is Hamming filter?
The Hamming window is a taper formed by using a raised cosine with non-zero endpoints, optimized to minimize the nearest side lobe. Parameters: M : int. Number of points in the output window. If zero or less, an empty array is returned.
What is rectangular window in DSP?
The rectangular window is an example of a window that is high resolution but low dynamic range, meaning it is good for distinguishing components of similar amplitude even when the frequencies are also close, but poor at distinguishing components of different amplitude even when the frequencies are far away.
Why PSD unit is g2 Hz?
Density: the magnitude of the PSD is normalized to a single Hertz bandwidth. For example, for a signal with an acceleration measurement in unit G, the PSD units are G2/Hz.
What is the importance of PSD?
Significance. The PSD of a material can be important in understanding its physical and chemical properties. It affects the strength and load-bearing properties of rocks and soils.
How do you measure PSD?
PSD is typically measured in units of Vrms2 /Hz or Vrms/rt Hz , where "rt Hz" means "square root Hertz".
...
On the vector signal analyzers, 89410A, 89441A or 89601A:
- Select Measurement Data > PSD.
- Select Data Format > Linear Magnitude.
- Place the marker on the desired data point and observe the marker readout.
How do you calculate spectrum?
Frequency spectrum of a signal is the range of frequencies contained by a signal. For example, a square wave is shown in Fig. 3.5A. It can be represented by a series of sine waves, S(t) = 4A/π sin(2πft) + 4A/3π sin(2π(3f)t) + 4A/5π sin(2π(5f)t + …)
What is difference between spectrum and spectrogram?
A spectrogram gives a running display of a sound signal as it occurs in real time; a spectrum, on the other hand, gives us a snapshot of the sound at a specific point in time. A spectrum can enable you to see, for example, the energy distribution over the different frequencies of a single vowel, like [i].
What is voltage spectrum?
Voltage Spectrum - Harmonic Data of Voltages and Currents for Input Sources.
How is spectral density calculated?
A signal consisting of many similar subcarriers will have a constant power spectral density (PSD) over its bandwidth and the total signal power can then be found as P = PSD · BW.
What is the difference between power and power spectral density?
Therefore, while the power spectrum calculates the area under the signal plot using the discrete Fourier Transform, the power spectrum density assigns units of power to each unit of frequency and thus, enhances periodicities.
