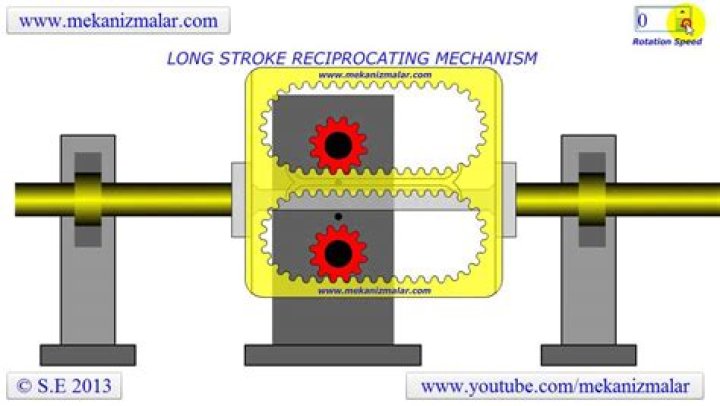

What is reciprocating mechanism?

Reciprocating motion, also called reciprocation, is a repetitive up-and-down or back-and-forth linear motion. It is found in a wide range of mechanisms, including reciprocating engines and pumps. The two opposite motions that comprise a single reciprocation cycle are called strokes.Reciprocating motion, also called reciprocation, is a repetitive up-and-down or back-and-forth linear motion. It is found in a wide range of mechanisms, including reciprocating engines

reciprocating engines

In 1206, Arab engineer Al-Jazari invented a crankshaft. The reciprocating engine developed in Europe during the 18th century, first as the atmospheric engine then later as the steam engine. These were followed by the Stirling engine and internal combustion engine in the 19th century.

› wiki › Reciprocating_engine

and pumps. The two opposite motions that comprise a single reciprocation cycle are called strokes.

What are examples of reciprocating motion?

Reciprocating motion applications include: Painting, grinding, slitting, scanning, winding, scoring, spraying – basically any task where back-and-forth motion of a tool, camera, cutting blade or other device is needed.

What is difference between reciprocating and oscillating?

As adjectives the difference between oscillating and reciprocating. is that oscillating is moving in a repeated back-and-forth motion while reciprocating is that moves backwards and forwards.

What is a reciprocating device?

Reciprocating linear-motion machines incorporate components that move linearly in a reciprocating fashion to perform work. Such reciprocating machines are bi-directional in that the linear movement reverses, returning to the initial position with each completed cycle of operation.

What is the difference between linear and reciprocating motion?

Both linear motion and reciprocating motion travel in a straight line. Reciprocating motion pivots forwards and backwards in a linear motion. Linear motion only travels one direction in a linear path.

42 related questions found

What is oscillatory motion?

A motion repeating itself is referred to as periodic or oscillatory motion. An object in such motion oscillates about an equilibrium position due to a restoring force or torque.

What converts reciprocating motion to rotary motion?

Connecting rod is the mediator between the piston and the crank. And its function is to transmit the thrust from the piston pin to crank pin, thus converting the reciprocating motion of the piston to rotary motion of the crank.

Which are reciprocating type machines?

The most common types of reciprocating machines are piston pumps and compressors and internal combustion engines. In all these machines, the piston rate (usually 1X) is dominant, along with the firing rate for 4-cycle engines.

What machines use reciprocating motion?

Other examples of reciprocating motion include piston pumps and compressors, roller pressure and tensioning systems, material testing devices, and insertion machines.

What is the types of reciprocating compressor?

There are two types of reciprocating compressors: High speed (separable) Low speed (integral)

Is reciprocating motion simple harmonic?

For a motion to be called simple harmonic, the force should be proportional and opposite to the displacement: F=−kx. Reciprocating motion is just a back-and-forth motion and per se, does not have to follow said law.

What are the 4 types of motions?

The four types of motion are:

• linear.
• rotary.
• reciprocating.
• oscillating.

What is reciprocating mass?

Reciprocating masses are concentrated at the piston/crosshead and similarly are usually assumed to include the rest of the connecting rod shank mass.

Why is reciprocating motion used?

Reciprocating motion refers to any repeating motion in a straight line, which includes up and down, side to side, or in and out. This motion can pump water, power machinery, refrigerate food and has many other uses. The principle of reciprocating motion drives most internal combustion engines.

Why is it called reciprocating engine?

A reciprocating engine is an engine that uses one or more pistons in order to convert pressure into rotational motion. They use the reciprocating (up-and-down) motion of the pistons to translate this energy.

Which method is used for analysis of reciprocating machine foundation?

Reciprocating machines supported by block foundation is analyzed by the elastic half space method whereas the reciprocating machines supported by pile foundation is analyzed by the solutions developed for the analysis of dynamic behavior of pile groups.

What is milling in engineering?

Milling is the process of machining using rotary cutters to remove material by advancing a cutter into a workpiece. This may be done varying direction on one or several axes, cutter head speed, and pressure.

What is reciprocal milling?

Reciprocal milling refers to the process wherein the time taken to load and upload the job work from the fixture on the milling table is minimized by utilizing two fixtures which are ready at the same time for milling one after the other.

How is the reciprocating motion of the piston and connecting rod is converted to rotary motion?

A connecting rod is the part of a piston engine which connects the piston to the crankshaft. Together with the crank, the connecting rod converts the reciprocating motion of the piston into the rotation of the crankshaft. The connecting rod is required to transmit the compressive and tensile forces from the piston.

What is that part of a engine that changes the reciprocating motion of the piston and connecting rod into a rotary motion?

A crankshaft is a shaft driven by a crank mechanism consisting of a series of cranks and crankpins to which the connecting rods of an engine is attached. It is a mechanical part able to perform a conversion between reciprocating motion and rotational motion.

What connects the piston and crankshaft?

The con-rod connects the piston to the crankshaft to transfer combustion pressure to the crankpin. There are bearing portions at both ends, the piston side is called the small end, and the crankshaft side, the big end.

What is an oscillating system?

The oscillating system is a dynamic system that may be visualized as a system of variables and parameters that describe the conditions of the sedimentary environment at any time during the sediment formation. The numbers of variables that are necessary to describe a system depend on its complexity.

What is called oscillation?

oscillation. / (ˌɒsɪˈleɪʃən) / noun. physics statistics. regular fluctuation in value, position, or state about a mean value, such as the variation in an alternating current or the regular swinging of a pendulum.

What is oscillation formula?

The period formula, T = 2π√m/k, gives the exact relation between the oscillation time T and the system parameter ratio m/k.
