What is the best shape for a fin on a rocket?

Theoretically, the best fin shape for a rocket is an “elliptical fin shape.”

How does the fin shape affect a rocket?

The fins help the rocket keep pointing in the direction it launched. When a rocket is flying through the air, changes in the air can make the rocket wobble. If it wobbles too much it can go off course. Having the right size, shape, and amount of fins will help make sure your rocket corrects itself when it wobbles.

What is the best fin placement for a rocket?

Placing fins at the tail end of a rocket moves the centre of pressure closer towards the tail end and increases stability. However, this also increases drag, so there is an optimal size for fins so that the rocket has enough stability without having too much drag.

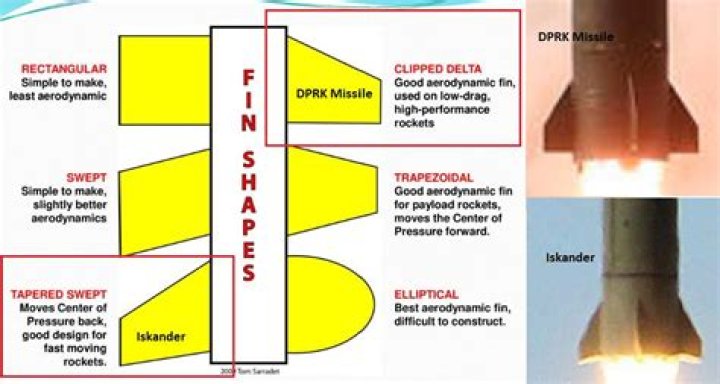

What are the most common rocket fin shapes?

B.

The most common fin planform shapes for experimental high-powered and experimental sounding rockets are clipped delta, trapezoidal, and elliptical. The optimal planform shape depends on the speeds that the rocket is designed to fly at.

Is it better to have 3 or 4 fins on a rocket?

Three fins are best when designing a high performance, low drag rocket. This allows interference drag (drag caused by interference of the airflow over the body and fins at the junction) to be reduced by 25 percent.

What shape should a rocket be?

For most model rockets that fly at speeds far less than the speed of sound, a rounded, parabolic shape is ideal to minimize drag and reach the highest altitude. If you are designing a high-performance rocket that can reach supersonic speeds, however, a more pointed nose like the ogive is the ideal shape.

How big should the fins be on a rocket?

The design formula further provides that the width of each fin should be at least 1.25 times the diameter of the rocket body.

How many fins should a rocket have?

Thin fins must be very stiff once mounted to prevent movement during flight. 5) A minimum of three fins are recommend for stable flight (4 fins are a good choice as well).

What are the fins on a rocket called?

Grid fins (or lattice fins) are a type of flight control surface used on rockets and bombs, sometimes in place of more conventional control surfaces, such as planar fins.

Why is a parabolic nose cone the best?

A parabolic nose cone reaches a higher altitude than a conical nose cone because it creates less drag. Drag is the force of flight that acts in the opposite direction of motion. Air flows around a parabolic nose cone better than it flows around a conical nose cone.

What makes a good rocket?

At supersonic speeds (faster than the speed of sound), the best shape is a narrower and sharper point. Rockets with a larger diameter have more drag because there is more air being pushed out of the way.

What are the 4 main parts of a rocket?

There are four major systems in a full scale rocket; the structural system, the payload system, the guidance system, and the propulsion system. The structural system, or frame, is similar to the fuselage of an airplane.

Can a rocket fly without fins?

The big rockets have a very sophisti- cated guidance system that steers the rocket and keeps it going straight. The model rockets that we fly, on the other hand, do not have any active guidance on the rocket itself. Once we push the launch button, a rocket without fins is on its own and could go in any direction.

What are the 3 main parts of a rocket?

Rockets consist of a propellant, a place to put propellant (such as a propellant tank), and a nozzle.

How big should my fins be?

How to size single fins? It is best to size your single / longboard fin relative to your board size. A generally accepted rule of thumb is to use the same size fin (in inches) as the length of your board (In feet) so for a 9ft board you would use a 9ft single fin.

Why do you need fins on a bottle rocket?

On a rocket the purpose of the fins is to add surface area to the rear of the rocket which helps keep the nose of the rocket pointed into the wind.

What do nose cones on rockets do?

Parts of a Rocket

The aerodynamic shape of the nose cone helps prevent air from slowing the rocket. The fins help guide the rocket to fly straight.

What is the best cone shape for a bottle rocket?

Attaching the parabola nose cone to the rocket proved to be the best way to reduce the drag on the rocket and allow it to stay in the air the longest. It had an average of 3.5 seconds in the air. The second best nose cone was the cone, with an average of 3.29 seconds.

Who was first human to orbit the Earth?

The Soviets leaped ahead by placing the first man, Yuri A. Gagarin, in space on April 12, 1961, on a one-orbit flight around the Earth aboard his Vostok spaceship. The United States responded with two suborbital piloted Mercury missions, launched atop Redstone rockets.

How do you make a rocket fly straight?

Make the rocket stable by doing one or more of the following:

1. Add weight to the nose [1]
2. Increase the fin size.
3. Lengthen rocket.
4. Move the fins further back.
5. Attach fins properly. The fins should be as rigid as possible. They should not flop around.
6. Make the fins from a lighter material.

How much water should you put in a water bottle rocket?

How much water should I put in my 2 liter water bottle rocket? A: The simple answer is something less than half full. Since the compressed air stores the energy, and the water provides momentum, both are needed. Fill perhaps 40-50% of the motor volume with water.

What is the fire that comes out of a rocket called?

The word propellant does not mean simply fuel, as you might think; it means both fuel and oxidizer. The fuel is the chemical rockets burn, but for burning to take place, an oxidizer (oxygen) must be present. Jet engines draw oxygen into their engines from the surrounding air.

What is the back of a rocket called?

The nose cone carries the payload or cargo. Common payloads include astro- nauts, satellites, scientific instruments, and even explosives. The nose cone may also contain the guidance system that controls the flight direction of the rocket. Rocket engines burn a combination of chemicals called propellant.

What is the most important part of a rocket?

A rocket's first stage gets the rocket out of the lower atmosphere, sometimes with the help of extra side boosters. Because the first stage must lift the entire rocket, its cargo (or payload), and any unused fuel, it's the biggest and most powerful section.

What is a good stability for a rocket?

After a few revolutions, if the nose points in the direction of the rotation, the rocket is stable and the center of pressure is below the center of gravity. If the rocket wobbles, or the tail points in the direction of rotation, the rocket is unstable.
