What is the difference between constant mesh and synchromesh gearbox?

The only difference between these two is that in the constant mesh gearbox the gears are locked with the shaft with the help of dog clutch but in synchromesh gearbox they are connected by a device called synchronizer.

What is a constant mesh transmission?

Definition of 'constant mesh gearbox'

A constant mesh gearbox is a type of transmission in which all forward gear pairs remain engaged. In a constant mesh gearbox, all gears are in mesh all the time. The constant mesh gearbox is a type of manual transmission in which the gears are meshed or fixed to their positions.

What is the difference between sliding mesh and constant mesh gearbox?

the differences between a sliding mesh gearbox and a constant mesh gearbox are that the gears used in the constant mesh are helical whereas in sliding mesh they were spur. the layshaft is also always connected to the main shaft, meaning the gears always mesh.

What is the advantage of using constant mesh gearbox?

Advantages of Constant Mesh Gearbox:

To avoid the vibrations and noise helical gears are used. It create less noise. As compare to sliding mesh gear box the mechanical efficiency of constant mesh gear box is high. The teeth of dog clutch is less wear and tear in engagement and disengagement of gears.

What is synchromesh mesh gearbox?

A synchromesh gearbox is a usually manually operated transmission in which a change of gears takes place between gears that are already revolving at the same speed. It is often claimed that a synchromesh gearbox requires less effort to change gears.

What is the difference between synchromesh and non synchromesh?

Gearboxes. WHAT'S THE DIFFERENCE BETWEEN NON-SYNCHRO, SYNCHROMESH AND AUTO GEARBOXES IN TRUCKS? A synchromesh gearbox does not require the driver to double clutch as the gearbox has synchro rings which match the road speed and the engine revs which allows the gear to be selected.

What are the advantages of a synchromesh gearbox?

1)Smooth and Noise free shifting of gears which is most suitable for cars. 2)No loss of torque transmission from the engine to the driving wheels during gear shifts. 3)Double clutching is not required. 4)Less vibration.

What is disadvantages of constant mesh gearbox?

Disadvantages: It is less efficient than the others due to higher mesh teeth. Skill is required for it. The double clutch mesh is required.

What is the main drawback of constant mesh gearbox over synchromesh gearbox?

All the gear do not revolve at the same speeds & when we have to engage two gears running at different speeds by shift lever there will be some sound due to clashes of gears and very hard to engage and disengage the gears.

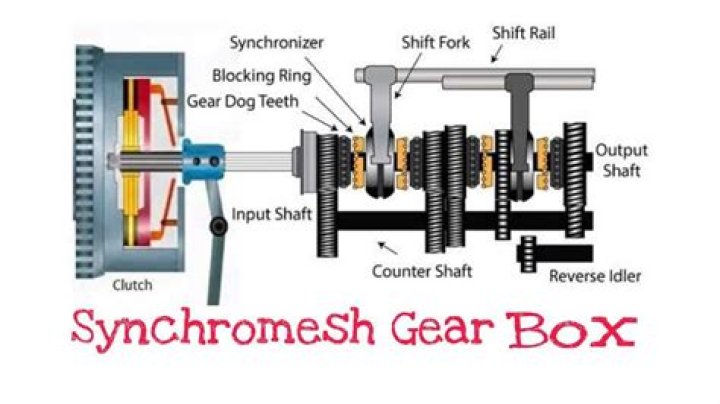

Which gears are used in synchromesh gearbox?

Synchromesh Gearbox:

• Main shaft Gears: A spline shaft is used as the output shaft over which the synchronizers and gears are mounted. ...
• LayShaft Gears: ...
• Clutch Shaft: ...
• Cone Synchromesh: ...
• Synchronizers : ...
• Gear lever:

Which types of gears are used in a constant mesh gearbox?

Which types of gears are used in constant mesh gearbox? Explanation: As the gears are always in mesh in the constant-mesh gearbox, therefore there is no need for using the spur gears and the helical gears are used as those are quite in use.

What are the different types of gearbox?

In general, there are three different types of gearboxes: concentric, parallel, and right angle.

Which type of gearbox is used in automobiles?

Modern cars use helical gears and synchromesh devices in the gearboxes, that synchronize the rotation of gears that are about to mesh. This eliminates clashing of the gears and makes gear shifting easier. This type of gearbox is similar to the constant mesh gearbox.

What are the disadvantages of sliding mesh gearbox?

Disadvantages of Sliding Mesh Gearbox:

Attaching the gears requires more effort because the gears have to slide into the sliding mesh gearbox, as opposed to a continuous mesh gearbox, where only one dog clutch has to slide for the engagement of different gears.

How do synchromesh gearboxes work?

The job of the synchromesh is to synchronize the rotational speeds of the gear and mainshaft before locking them togther. Friction from the contact of the cones synchronizes their speed and the dog teeth slide into mesh to lock the gear and shaft.

What is the function of synchromesh unit in a gearbox?

A synchromesh effectively allows a gear change to be completed with one actuation of the clutch through the clutch pedal, essentially forcing the rev-matching through its efficient teeth-meshing.

How does a constant mesh transmission provide smooth shifting?

Synchronizers and gears are mounted on the main shaft. Synchronizers are special shifting devices that have conical grooves cut over their surface which provides frictional contact to the gears that are meshed to equalize the speed of the clutch shaft, layshaft, and main shaft. This provides smooth shifting of gears.

What is non synchromesh gearbox?

A non-synchronous transmission, also called a crash gearbox, is a form of manual transmission based on gears that do not use synchronizing mechanisms. They require the driver to manually synchronize the transmission's input speed (engine RPM) and output speed (driveshaft speed).

Is a road Ranger gearbox synchromesh?

A Roadranger gearbox is a non-synchro manual gearbox used in many American and Asian trucks.

Who invented synchromesh gearbox?

Earl A. Thompson, who as a youth in Portland invented the synchromesh transmission and later led development of the Hydra-Matic transmission will be honored in Detroit Wednesday by receipt of the Elmer A. Sperry Award. Presentation of the award will be made at the Society of Automotive Engineers congress at Cobb Hall.

Which type of gearbox is best?

Dual Clutch Transmission (DCT)

The DCT offers enhanced performance and quicker shifts between gears compared to the above two types of transmissions. They are the most advanced form of transmissions and the main highlight is that it can shift gears at quick speeds, providing excellent performance.

Which gear has highest speed reduction?

Worm gears are perhaps the most costeffective reduction solution, but usually have a minimum 5:1 ratio and lose considerable efficiency as ratios go higher. Bevel reducers are very efficient but have an effective speed reduction upper limit of 6:1.

What are the 4 types of gears?

Read on to learn the different types of gear and the applications and industries that utilize them.

• Spur Gear. Spur gears transmit power through shafts that are parallel. ...
• Helical Gear. ...
• Double Helical Gear. ...
• Herringbone Gear. ...
• Bevel Gear. ...
• Worm Gear. ...
• Hypoid Gear.

What are the 3 types of transmission?

Cars are continuously evolving, improving, and becoming more efficient. That goes for the transmission as well. There are three types of transmissions in use—manual, automatic, and CVT transmissions—each geared toward specific needs and driving styles.

What are the three types of manual gearbox?

While these two are most often used, before the introduction of automatic transmissions, car-makers created other types of manual transmissions.

• Sliding-Gear Transmission. Sliding-gear transmissions are only found on older model cars. ...
• Constant-Mesh Transmission. ...
• Preselector Transmission.
