What is the difference between depth and draft?

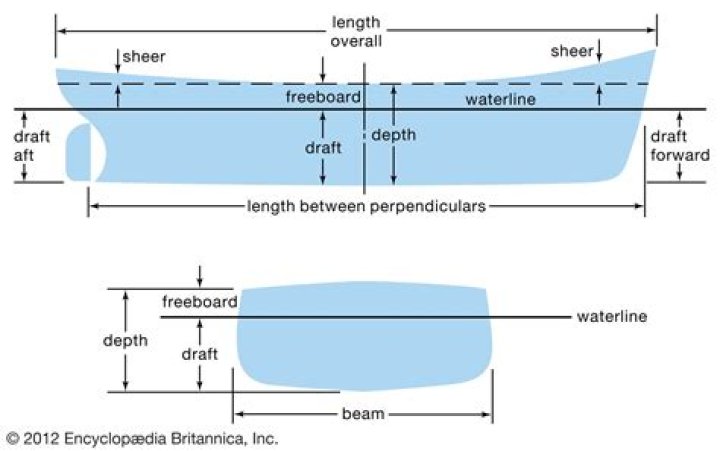

shipbuilding measurements

What does the draft of a boat mean?

Draft is how shallow your boat's hull can go in the water essentially meaning, it's the minimum depth you can safely take your boat without hitting the bottom of the hull on the surface below the water.

What does draft mean in measurement?

Draft intensity is measured in “inches of water”. Just as a mercury barometer is used to measure atmospheric pressure in inches of mercury, a draft gauge is used to measure draft intensity (pressure) in inches of water.

What is the depth of a boat called?

Draft:The distance between the waterline and the keel of a boat; the minimum depth of water in which a boat will float.

Does draft mean height?

Draft is the vertical height between the waterline and the lowest point of the hull. It is how deep the hull can go, allowing the boat to float freely and without touching the bottom of the water body such as the sea, ocean, or lake.

What do you mean draft?

1 : to write or draw a version of something (as an essay or plan) that usually needs more work. 2 : to choose someone to do something Mom drafted us to clean the garage. 3 : to pick especially for required military service.

How do you measure the depth of a boat?

shipbuilding measurements

The depth is measured at the middle of the length, from the top of the keel to the top of the deck beam at the side of the uppermost continuous deck. Draft is measured from the keel to the waterline, while freeboard is measured from the…

What is forward draft?

The draft forward (bow) is measured at the perpendicular of the bow. The mean draft is obtained by calculating from the averaging of the stern and bow drafts, with correction for water level variation and value of the position of forward (F) with respect to the average perpendicular.

What is draft in port?

Vessel draft (draft in the American spelling, draught in the British) is one of the principal dimensions of any waterborne vessel and is defined in technical terms as the distance between the ship's keel and the waterline of the vessel.

How is draft on a ship measured?

Measure the distance from the boat's waterline, (where the side of the vessel meets the water) to the lowest part of the keel that you have identified. Record this number in feet or centimeters. You have measured the draft of your boat.

What is called drafting?

drafting, also spelled draughting, also called engineering drawing, graphical representation of structures, machines, and their component parts that communicates the engineering intent of a technical design to the craftsman or worker who makes the product.

What is draft in mechanical?

Mechanical drafting is the process of creating drawings which communicate of how something can be constructed. It is a way of showcasing a 3D object on a 2D piece of paper and it shows how the model or part would look-like from each direction.

What is draft in manufacturing?

In engineering, draft is the amount of taper for molded or cast parts perpendicular to the parting line. It can be measured in degrees or mm/mm (in/in).

What is the difference between draft up and draft down?

If the drive is up, the draft will be measured from the keel, or wherever the lowest point of the boat is now. When the drive is down, the lowest point of the boat is likely to be the skeg, which is located on the propellor's front. Boats with jet drive propulsion house their drive system within the boat.

How deep does water have to be to dock a boat?

Optimal water depth is set when the top of the dock is 12”-16” higher than the top of the water. Sectional docks should not be installed in water depths greater than 6 feet (72 inches) for stability and safety.

What is cold draft?

dramatic, but you get the idea: drafts are a huge pain. Drafts are caused when a house's warm air leaks out and gets replaced or even pushed out by that sneaky, cold outside air. Not only does can this make you uncomfortable in your own home, it also makes your heating less efficient.

How deep is a cruise ship draft?

How deep is the water where cruise ships dock? The depth of water that a cruise ship will need to dock in will need to exceed 25 to 50 feet deep. This takes into account the average draft of a cruise ship being 25 to 50 feet, which is the depth of water from the waterline to the bottom of the hull.

What is Max draft?

Definition Term. Definition Text. Last Modified Date. Maximum Navigational Draft. For surface ships, the maximum navigational draft represents the greatest depth, in feet, of the keel, including projections, when operating at the assigned draft limit.

What is static draft?

The Static Draft is the draft when the vessel is not making way or subject to sea, and swell influences, i.e., the maximum draft the ship has loaded to.

What is Quarter mean draft?

This is also called Quarter mean draft. Mean of means is considered to be the accurate draft of the vessel at the midship. This is the draft we need to enter in the trim and stability booklet.

What is static draft and dynamic draft?

Static Draft is the Draft which is taken by the Transducer when the Ship is in Stationary. Dynamic Draft is the one which is taken when the Ship is Underway!

What is my boat draft?

A boat's draft is simply the distance between the waterline and the deepest point of the boat.

What is depth measurement?

Commonly abbreviated as D, depth is a measurement of how far back a three-dimensional object is. For example, measurements of an object, such as a computer monitor, are commonly measured as (D x W x H), short for Depth by Width by Height.

Why is it called draft?

The word draft (or draught) goes back to Middle English and is related to Old English dragan, meaning "to pull, draw, or drag," which is reflected in the word's semantic development relating to acts of pulling loads, drawing up plans, sketches, and money orders, and taking in beer, water, air, etc.
