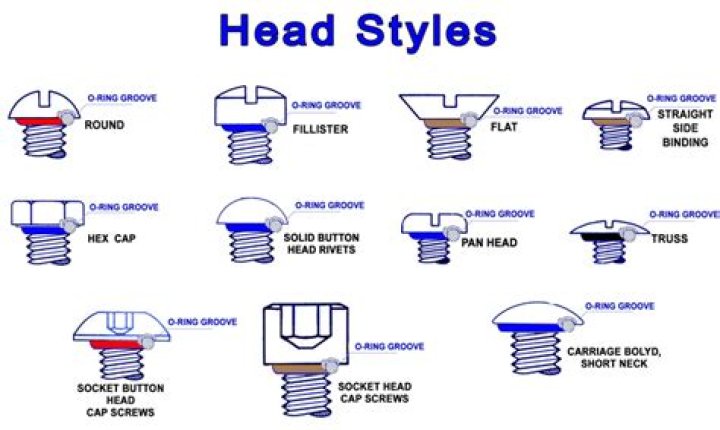

What is the difference between pan head and button head screw?

The Difference Between Pan Head Screws And Button Head Screws. Button head screws have chamfered sides which curve all the way down to the bottom of the screw head. They have a slightly domed top but they do not have straight sides like pan head screws.

What is a pan head screw used for?

Pan head screws are often used to secure metal components, such as machinery and automotive parts and accessories, such as license plates and headlights. Pan head screws for Canton, Massachusetts typically feature a Phillips-style slotted head, but other slot types are available as well.

What are the 4 different types of screw heads?

Types of Screw Heads/Screw Drives

• Step 1: Slotted. Slotted screws are the simplest type of screw, consisting of a single slot at the head of the screw. ...
• Step 2: Phillips. The Phillips screw, named after Henry F. ...
• Step 3: Square Aka "Robertson" ...
• Step 4: Torx Aka "Star" ...
• 19 Comments.

What is a button head screw?

Button head cap screws have a low domed head with a wider bearing surface than standard heads, and they offer a finished appearance, making them an ideal choice when a neat appearance is desired. Designed for light fastening applications, button head cap screws lack the strength of standard socket screws.

What does a Panhead screw look like?

Pan head screws take their name from the appearance of their head, which looks similar to an upside-down frying pan. Pan head screws are a common head type of non-countersunk screw head used in wood screws, self-tapping screws, self-drilling screws, and machine screws.

Is pan head and flat head the same?

Both are commonly used for metal applications. Pan head machine screws can also be differentiated from flat head screws, which have flat tops, as well. However, flat head screws are tapered on the underside of the head so they can lie flush with the material they're driven into.

What is the difference between pan head and truss head?

Truss Head

Also known as oven head, stove head or oval binding head. There is a low profile dome head and extra wide load bearing flat surface comparative to other heads which makes it strong hold for thin materials. Truss head is weaker than Pan and round head but used where clearance is small above the head.

What is button screw?

Button Head Screws feature a low-profile domed head. Due to their unique head shape, these fasteners are sometimes called Dome Screws or Round Head Screws. Button Head Screws have a relatively large head diameter, which allows for a larger drive type to be used.

What's a button head?

Definition of buttonhead

(Entry 1 of 2) of a bolt, rivet, or screw. : having a head with a spherical exposed surface and plane shoulder, the height of the head being usually less than a hemisphere. buttonhead.

What grade are button head bolts?

The button head socket screws are 100% Alloy Steel Grade 10.9 which offers a high level of chemical and corrosion resistance.

What are the 3 types of screws?

3 Common Screw Types at a Glance – Machine, Sheet Metal, and Cap Screws.

Which screw head is strongest?

The star head (sometimes known as the branded name Torx) is the best commonly-used screw head on the market. It allows for a huge amount of torque without stripping and it's difficult for the bit to slip out.

What does CSK mean in screws?

Countersunk Socket Screws - CSK Allen Screws | Bolts - Fasteners - Orbital Fasteners.

How do you tighten a pan head bolt?

Remove the bolt and place a lock washer or a rubber washer around the shaft so it fits snugly around the bolt neck against the bolt head. Reinsert the bolt into the hole and add a regular washer to the other side if there is not one already. Screw on then tighten the nut.

What is truss head screw?

Truss head (or mushroom) screws are characterized by a low, slightly rounded surface and an extra-wide top. Truss head screws have a lower profile than other rounded head screws; thus, they can prevent tampering. Their wide head makes them suited to fasten sheet metal workpieces with large diameter holes.

What are flat head screws?

Flat head screws are characterized by having a head with a flat top and bottom that is cone shaped or countersunk. With this design, the head of the screw can align flush or below the surrounding surface having obvious benefits.

What is the meaning of Botton?

1a : a small knob or disk secured to an article (as of clothing) and used as a fastener by passing it through a buttonhole or loop. b : a usually circular metal or plastic badge bearing a stamped design or printed slogan campaign button.

Where are socket head screws used?

Socket head cap screws are widely used in industrial production and assembly lines, including in the automotive sector, furniture manufacture, machine tooling applications and steel fabrication.

What is a socket button screw?

Socket Button Screws feature dome heads that have less loadability than cap heads, but give a safe and attractive finish. Also known as button Allen head screws, socket button screws have internal hex sockets for use with Allen keys.

What are M4 screws?

They're made from a durable carbon steel and come with a nut for tightening metal surfaces together. The M4 machine screw has a thread diameter of 4 millimetres, in simple terms the M stands for millimetres followed by the size – in this case 4 mm.

Why are screw heads different?

Answer: The primary reason for the wide variety of screw head drive types is to ensure the fact that you will never have the proper screwdriver close at hand when you need it.

What's the difference between #8 and #10 screws?

Sometimes, not often though, you may see a sheet metal screw listed as a fraction like 5/16 or 3/8 but, generally, the diameter of these screws will be specified as a one or two digit number. Machine screws are often found in sizes of: 0, 1, 2, 3, 4, 5, 6, 8, 10, 12, 14—the larger the number, the larger the screw.

What are round head screws called?

Pan. The 'pan' head is the most commonly used rounded-top screw head. It works well in a range of applications that require a flat-bottomed screw.

What is countersink screw?

A countersunk screw, also known as a “flat-head screw,” sinks into a surface and rests flush in materials. Similar to other screws, a countersunk head screw has ridges that twist into a material to provide fastening power. Countersunk screws have a flat head instead of a rounded or semi-rounded one.

What are flush screws?

Flush-head fasteners are mechanically pressed through a hole in the sheet metal from the outside, so they sit mostly flush with the outside edge. There is a slight indentation around the exterior of the metal from where it gets pressed in that makes them detectable.
