What is the difference between valve timing and ignition timing?

"Timing" simply means control of when something happens. "Valve timing" means control of when valves operate. "Ignition timng" means control of when spark happens. Valve timing is controlled by making sure the camshaft and crankshaft are positioned correctly to each other.

What is the difference between cam timing and ignition timing?

Cam timing is VALVE timing. Ignition timing is SPARK timing. Just because they share the same word of "timing" doesn't mean they have anything to do with either other.

What is meant by valve timing?

Definition of 'valve timing'

Valve timing is the exact timing of the opening and closing of the valves in a piston engine. Carmakers have devised ways to change valve timing while the engine is running.

What are the different types of timing?

There are two kinds of timing, cam timing and ignition timing. The cam timing regulates the valves and pistons, and the whole process is controlled by the timing chain or belt. If the timing is off, damage can occur. In some engines, called “interference engines,” the consequences can be especially bad.

What are the two types of ignition timing?

Engine Timing – The two types include, cam timing and ignition timing.

What controls engine ignition timing?

In most modern engines, ignition timing is controlled by the engine's computer.

What happens if timing is too advanced?

Advanced timing reduces engine performance and will heat the engine. It also causes detonation. This causes a vicious circle of destruction that starts when the engine overheats and has the effect of starting, overheating and leading to an explosion or burn to the oil.

What happens if your valve timing is off?

When any changes are made to the engine of a car, the ignition timing is adjusted accordingly. If not, you could experience several problems with your engine with improper ignition timing like knocking, hard to start, increase fuel usage, overheating, and reduced power.

How do you know if your valve timing is off?

Signs Your Ignition Timing Is Off Some things to look out for: Engine knocking: Engine knocking occurs when the air-fuel mixture is ignited too soon in the cylinder. Low Power: Ignition timing that is retarded too far can result in the spark plug igniting the mixture too late. This can reduce the power of your engine.

How do you know if your ignition timing is off?

Signs Your Ignition Timing Is Off

1. Engine knocking: Engine knocking occurs when the air-fuel mixture is ignited too soon in the cylinder. ...
2. Decreased fuel economy: The timing of the spark plug is crucial during the ignition process.

Why valve timing is so important?

There is a valve timing. For a proper four stroke cycle, valve timing helps to operate the valves precisely to enable the valve opening of inlet, closing of exhaust, and opening of exhaust valves during each cycle.

Why is valve timing needed?

In internal combustion engines, variable valve timing (VVT) is the process of altering the timing of a valve lift event, and is often used to improve performance, fuel economy or emissions. It is increasingly being used in combination with variable valve lift systems.

What are major two factors which affect valve timing?

It can be varied by modifying the camshaft, or it can be varied during engine operation by variable valve timing. It is also affected by the adjustment of the valve mechanism, and particularly by the tappet clearance.

Do bigger cams need more timing?

The bigger the camshaft, the more it really needs part-throttle timing at low engine speeds. There are also adjustable vacuum advance canisters out there from Crane that allow you to custom tailor the curve.

Can you adjust timing while engine is running?

Adjust while the engine is at idle speed.

Continue rotating until the timing mark is in the correct position. Align the timing marks by continuing to move the distributor and checking with your timing light. When you've got it set where you want it, lock it back down by tightening the distributor bolts.

How do you set timing without a timing light?

How to Set Timing Without a Timing Light Step BY Step Guide

1. Step 1: Get a vacuum pressure, dwell, and RPM (revolutions per minute) ...
2. Step 2: Loosen the bolt that holds the engine's distributor. ...
3. Step 3: Rotate the distributor slowly. ...
4. Step 4: Adjust the carburetor.

Can timing cause no spark?

No, if your engine has a bad timing belt, or timing belt slips, you could still have sparks. Timing refers to the sequence of which events are happening in an engine combustion cycle. Having bad timing can cause problems like poor engine running.

What causes a car to lose timing?

In most cases, the ignition timing error is caused by damage to the engine's internal components, such as the pistons and valves. A loose or weak engine timing belt can also cause the ignition timing to malfunction.

What rpm do you set timing at?

Rev the engine past the point where your mechanical advance is fully engaged. (Usually, 3,000 - 3,500 rpm will do it.) Watch the timing mark on the harmonic balancer using the timing light.

What is the advantage of valve overlap?

Valve overlap is designed into the engine and is most useful at higher speeds. At higher speeds, the extra amount of intake charge brought into the combustion chamber provides a substantial increase in available power. The amount of time that both valves are open in directly related to engine rpm.

How are valves opened?

In theory, the valve operation is very simple: the cam pushes the valves down into the cylinder against the spring, opening the valve so gases can flow and then lets the valve shut under the force of the spring. The pressure in the combustion chamber rather neatly helps seal the valve shut.

What happens if exhaust valve opens late?

If the exhaust valve closes too late in the cycle, the combustion chamber will be "over-scavenged". This will cause an excessive amount of fuel/air mixture to escape into the exhaust port because the intake valve is still partially open.

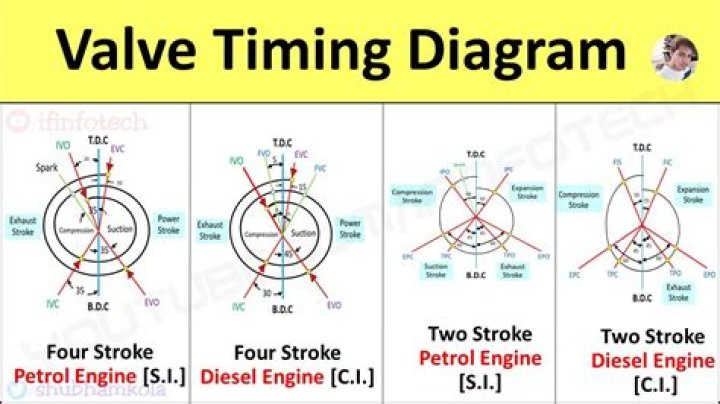

How do you calculate valve timing?

To calculate the duration of any intake valve timing event, add 180° to the intake opening and closing time. For example, if an intake valve opens at 12° before top dead center (BTDC) and closes at 40° after bottom dead center (ABDC), the duration of the valve timing event is 232°.

What precautions should be taken in relation to valve timing?

Turn engine in normal direction of rotation (unless otherwise stated). Observe tightening torques. If fitted: Mark position of crankshaft position (CKP) sensor before removal. Do NOT turn crankshaft via camshaft or other sprockets.
