What is the Strake on a boat?

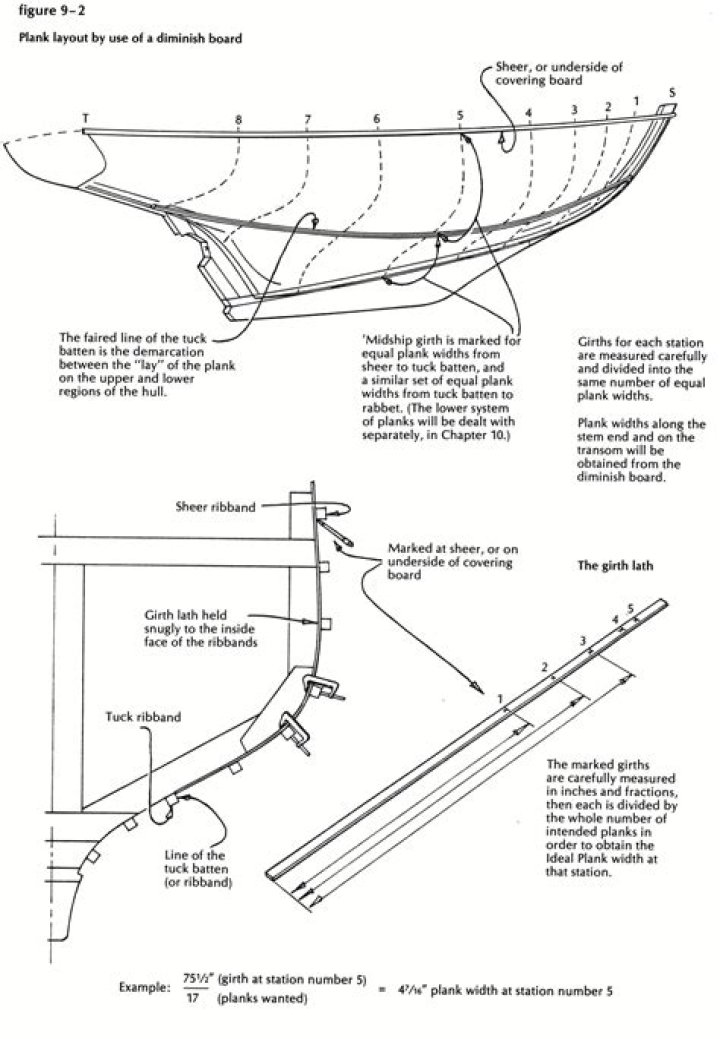

On a vessel's hull, a strake is a longitudinal course of planking or plating which runs from the boat's stempost (at the bows) to the sternpost or transom (at the rear). The garboard strakes are the two immediately adjacent to the keel on each side.

What do strakes do on a boat hull?

Strakes: Are They for Lift or Stability? Don't call those flat strips running along a hull's bottom “lifting” strakes. Their main purpose is to prevent spray and water from riding up the hull, thereby reducing wetted-surface resistance.

What is strake plate?

Streak Plate. A common method for the isolation of a pure culture from a mixture is by "streaking" plates. The inoculum is streaked over the agar surface to isolate colonies on at least a portion of the plate.

What is a keel strake?

Keel Strake

But keel plate is also made up of smaller sections of the steel plates. These strake of plates that form the keel of the ship is called Keel Strake. The plates in the keel strake are number from aft to forward starting from the aft one which has the number “1”.

What is a strake on a aluminum boat?

part of a boat or ship. It is a a horizontal strip of wooden planking or steel plating on the exterior hull of a vessel, running longitudinally along the vessel from the stem to the stern.

What is a rubbing strake?

noun. A protective strip running along a boat's side below the gunwale to prevent damage when coming alongside something. 'I need to replace the rubbing strake on my beautiful modern classic. ' 'The rubbing strake is there to protect the boat from further extensive damage and as a cosmetic finishing strip.

What is a tank strake?

Strake. A section of a tank made by rolling a stainless steel sheet or length of coil into a cylinder and welding the longitudinal seam joint.

What is chine on a boat?

Chines refer to the sharp changes in angles in its cross section. These angular chines appear along the outline of your boat's hull and in the area where the hull intersects the underside of the boat.

Why sheer strake is thicker?

Shear strake is usually of higher thickness and strength than other strakes. This is because this strake can have lot of physical damages during the life of ship. Keel Strake: - Keel plate is also made up of smaller sections of the steel plates.

What is a boat without a keel called?

A keelboat is generally larger than 20 feet and can be as large as a megayacht at 200 feet. A boat smaller than 20 feet without a keel is referred to as a dinghy. A dinghy has neither a keel nor a ballast. To resist sideways movement it has a centerboard or a daggerboard that can be lowered or raised as needed.

What are the levels of a ship called?

Although these are formally called decks, they are usually referred to as levels, because they are usually incomplete decks that do not extend all the way from the stem to the stern or across the ship. Afterdeck an open deck area toward the stern-aft.

What is stealer strake?

A single wide plate which replace two narrow plates in adjacent strake of a ship. Stringer: A horizontal stiffener fitted along the ships' side or a longitudinal bulkhead, in order to provide strength and rigidity.

What are planing strakes?

Lifting Strakes are located on planing surfaces, are designed to have a surface generally flat (zero deadrise) to water surface, and generate increased lift at improved efficiency under some conditions.

What is coffin plate in ship?

Coffin plate: the plate joining two side plates over the keel of a vessel at the stern which in plan view creates a shape similar to a coffin lid. Sheer strake: It is the topmost strake on ship side. Shell expansion plan.

What is transverse frame in ship?

Definition of transverse framing

: a system of ship construction in which the frames are closely spaced to furnish most of the strength to the ship's structure —opposed to Isherwood system.

What is a duct keel?

Duct Keel. Duct keel is provided in double bottom hull ships and consists of solid plates welded into a box shape, forming an internal watertight passage running along the length of the ship, usually from collision bulkhead to forward engine room bulkhead.

What causes chine walk on a boat?

Chine walk appears to be primarily caused by the relative motion of the boat's center of gravity and the hydrodynamic lift centroid in the lateral direction. At low speeds, the waterline across the beam (width) of the craft is relatively wide and progressively becomes narrower as the boat's speed increases.

Why do boats have chines?

Chines on a boat helps keep a vessel upright and stable in the water. There are however a few different factors which includes the vessel size and the dead rise angle. If you are buying a boat there are some many factors one needs to consider. One of these is the chines a vessel has and the type of chines.

What is a chine line?

In aircraft design, a chine is a longitudinal line of sharp change in the cross-section profile of the fuselage or similar body. The term chine originates in boatbuilding, where it applies to a sharp profile change in the hull of a boat.

What is a plank on a ship called?

A plank is called a board when it is placed on a boat. Explore the boat's hull.

What is ship Stringer?

Definition of deck stringer

: a strake of plating secured to the deck beams along the outer edge of a ship's deck in order to connect the beams to the side of the ship and to each other.

What are beams in ship?

The beam of a ship is its width at its widest point.

What is buttock line in ship?

buttock line (plural buttock lines) (aviation, ship-building) A curve indicating the shape of an airfoil or nautical equivalent in a vertical plane parallel to the longitudinal axis of the craft or vessel.

What is a Garboard plank?

garboard plank in British English

(ˈɡɑːˌbɔːd plæŋk ) noun. the bottommost plank of a vessel's hull.
