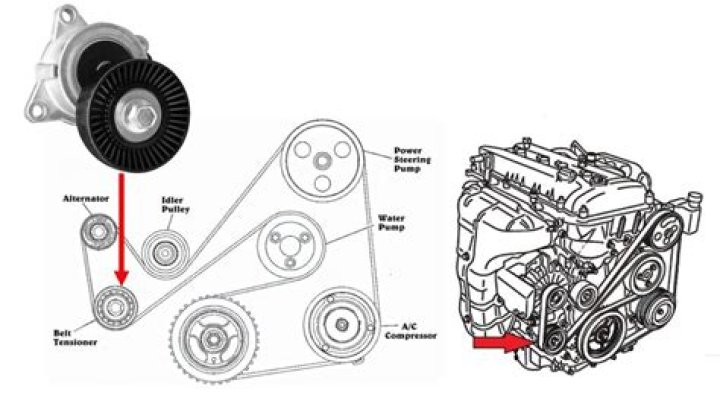

Where is the belt tensioner located?

The belt tensioner is on the front of the engine, between the crankshaft and alternator pulleys.

Where is the tensioner pulley located?

The tensioner pulley is on the end of a spring-loaded tensioner. The accessory drive belt rides on the pulley while the spring-loaded portion of the assembly puts tension on the accessory drive belt to keep it tight enough so that it doesn't slip on the rest of the pulleys.

How do you loosen a belt tensioner?

Turn the bolt head in the center of the spring-loaded arm of the belt tensioner counterclockwise with a ratchet and socket to loosen the bolt. The tensioner will rotate freely before it comes to a stop. When the spring-loaded arm comes to a stop, continue to turn the bolt until the bolt loosens.

How do I know if my belt tensioner needs replacing?

The most common symptom of a bad or failing drive belt tensioner is noise from the belts or tensioner. If the tensioner is loose the belts may squeak or squeal, especially when the engine is first started.

Can you replace a belt tensioner yourself?

Serpentine belt replacement is easy because today's automatic drive belt tensioners eliminate the need to loosen bolts or pry components into position for retensioning. Just rotate the tensioner, remove the old belt and install a new one.

How much does it cost to replace a belt tensioner?

The average cost for a drive belt tensioner replacement is between $211 and $239. Labor costs are between $73 and $93, while parts are priced between $138 and $146. Taxes and fees are not included in the estimate.

How long does it take to replace a belt tensioner?

It can take anything from 15 minutes to an hour (two at the most) to repair or replace a bad serpentine belt with a new belt.

What happens when a belt tensioner goes bad?

A seized or loose drive belt tensioner can cause the belt to snap, which will disables those accessories and can cause problems such as overheating, a dead electrical system and battery, or a disabled AC system.

What causes a belt tensioner to go bad?

The most common causes of timing belt tensioner failure include: Wear and tear: On a new mechanical timing belt tensioner system, the timing belt tensioner spring is wound tightly by two tension rods. Over time, the spring stretches out and loses its tension. As a result, the entire tensioner becomes too weak.

Should I replace tensioner with serpentine belt?

You should expect to replace your belt tensioner in the 40,000-70,000 mile range. It is also customary to swap more than one part simultaneously, usually a worn-out pulley from other systems and even the serpentine belt itself.

What tool do you use to unscrew a tensioner pulley?

To loosen a drive belt spring tensioner pulley, refer first to the repair manual or owners manual's specific year, make, and model information. You may need a special tool, but many spring tensioners have a square hole, for a 3/8” or 1/2” breaker bar, or a hex or square protrusion for a wrench or socket.

Can you over tighten a tensioner pulley?

A belt shouldn't be over-tightened. Any bearing that the belt rotates on can be burned out by an over-tightened belt. A pulley bearing can be ruined by an over-tightened timing belt.

Are tensioner pulley and idler pulley the same?

The primary distinction between tensioners and idler pulleys is the presence of an adjustable bolt. Tensioners are positioned on the bolt through mounting. Idler pulleys are not mounted to an adjustable bolt.

What does it sound like when a tensioner pulley is bad?

When the tensioner or tensioner pulley fails, the loss of tension can cause the belt and pulleys to make high-pitched rattling or chirping noises. If the pulley bearing completely fails, it can also cause a squealing or even a grinding noise. Symptom 2: Knocking or slapping. This can cause a slapping or knocking noise.

Can a belt tensioner leak?

As suggested in its name, a tensioner ensures the various belts—mainly the timing and serpentine belts—remain tight with the proper tension. The hydraulic oil that maintains this tension can seep out of the tensioner. When it does the associated engine belts become loose. A car that leaks oil is not an uncommon sight.

Can a bad tensioner cause loss of power?

If the tensioner's wear leads to the belt fully dislodging, likely through seizing, each of the components that rely on the belt for power will be lost. This means your vehicle's air conditioning, alternator, smog equipment, water pump, and power steering will be lost if the belt dislodges.

How do you check a serpentine belt tensioner?

How to Tell If a Tensioner Is Bad?

1. Listen for squealing noises within the engine when it is running. ...
2. Watch the belt and belt tensioner while the engine is running. ...
3. Turn off the engine. ...
4. Push down on the middle of the belt while the engine is off and the components are cool enough to touch.

Can you drive a car with a bad belt?

There are a couple of factors influencing the answer to this question, but on average, your car should be able to run between 20-90 minutes with a broken serpentine belt. The engine will overheat faster without a functioning cooling system on a hot day, so your driving window is less.

How much does it cost to fix a tensioner pulley?

You will pay anything between $125 and $380 for a full idler tensioner pulley replacement cost. The parts can cost as much as $225 and as little as $85. The labor cost should range between $45 and $150.

How much does a pulley tensioner cost?

It will cost between $125 and $380 to have your pulley replaced. The labor should cost between $45 and $155 and the parts should cost between $85 and $225.

What is the lifespan of a serpentine belt?

On average, serpentine belts should last between 60,000 and 100,000 miles. However, if you're only putting a few thousand miles annually on your vehicle, don't use that mileage interval as the sole guide for when to replace the serpentine belt.

What does a worn serpentine belt sound like?

Symptoms of a broken serpentine belt include loud slapping, squealing or knocking noises coming from under the hood. The battery-shaped charging system warning light might also come on because the alternator will stop charging the battery. If a car has a hydraulic power steering pump, the steering will become stiff.

How long does it take to replace a tensioner pulley?

If you are doing the job at home, give yourself about four hours to change all the parts. You will need the following tools and parts: Replacement idler pulley. Tensioner pulley.

How do you adjust a serpentine belt tensioner?

Locate the adjuster bolt on the belt tensioner used to secure the serpentine belt, and adjust the tension by loosening or tightening the adjuster bolt with a racthet and socket while you simultaneously move the belt back and forth gently to find the proper tension.
