Which type of capacitor is best?

Class 1 ceramic capacitors offer the highest stability and lowest losses. They have high tolerance and accuracy and are more stable with changes in voltage and temperature. Class 1 capacitors are suitable for use as oscillators, filters, and demanding audio applications.

Which capacitor is most used?

The multi-layer chip capacitor (MLCC) and ceramic disc capacitor are the most commonly used types in modern electronics. MLCCs are made in surface mount technology (SMT) forms, and widely used due to their small size. Capacitance values are typically between 1 nF and 1 µF, although values up to 100 µF are available.

What are the 4 types of capacitors?

The different types of capacitors are following.

• Electrolytic Capacitor.
• Mica Capacitor.
• Paper Capacitor.
• Film Capacitor.
• Non-Polarized Capacitor.
• Ceramic Capacitor.

Which capacitor is more powerful?

A supercapacitor (SC), also called an ultracapacitor, is a high-capacity capacitor with a capacitance value much higher than other capacitors, but with lower voltage limits, that bridges the gap between electrolytic capacitors and rechargeable batteries.

Are supercapacitors better than batteries?

Supercapacitors also have a much longer lifespan than batteries. A regular battery can handle around 2000-3000 charge and discharge cycles, while Ultracapacitors can usually sustain more than 1,000,000. It can represent considerable savings in materials and costs.

What is tolerance of capacitor?

The tolerance value is the extent to which the actual capacitance is allowed to vary from its nominal value and can range anywhere from -20% to +80%. Thus a 100µF capacitor with a ±20% tolerance could legitimately vary from 80μF to 120μF and still remain within tolerance.

What are the 2 types of capacitor?

There are two major types of capacitors: Fixed Capacitors and Variable Capacitors. These two contain different types of capacitors including non-polarized and polarized for the fixed group and tuning and trimming for the variable group.

What is mylar capacitor?

Mylar Capacitors a.k.a polyester capacitors (PET) are special type of capacitors with some unique features compared with ceramic and electrolytic capacitor. They can withstand high voltages in a relatively small package and provides high resistance against moisture.

What is the difference between AC and DC capacitor?

The difference between DC capacitor and AC capacitor is whether the capacitor has polarity (that is, it has positive and negative poles) or no polarity. 2. DC capacitor has polarity AC capacitor has no polarity. Polarized capacitors cannot be connected to AC circuits because of their positive and negative polarities.

What makes a good capacitor?

The bigger the plates, the closer they are, and the better the insulator in between them, the more charge a capacitor can store.

Does type of capacitor matter?

Yes, the type of capacitor can matter. Different types of capacitor have different properties. Some of the properties that vary between capacitor types: Polarised vs unpolarised.

What is ceramic capacitor used for?

Ceramic capacitors are used for all types of circuits in a number of applications. There are four main capacitor applications that are described in detail below: coupling, decoupling, smoothing, and filtering.

How do you size a capacitor?

Multiply 0.5 times the square of the voltage. Call this result "x.". Continuing the example, you have 0.5 times 11.5 volts times 11.5 volts, or 66.1 square volts for "x". Divide the start-up energy requirement, in joules, of the motor by "x" to arrive at the capacitor size needed in farads.

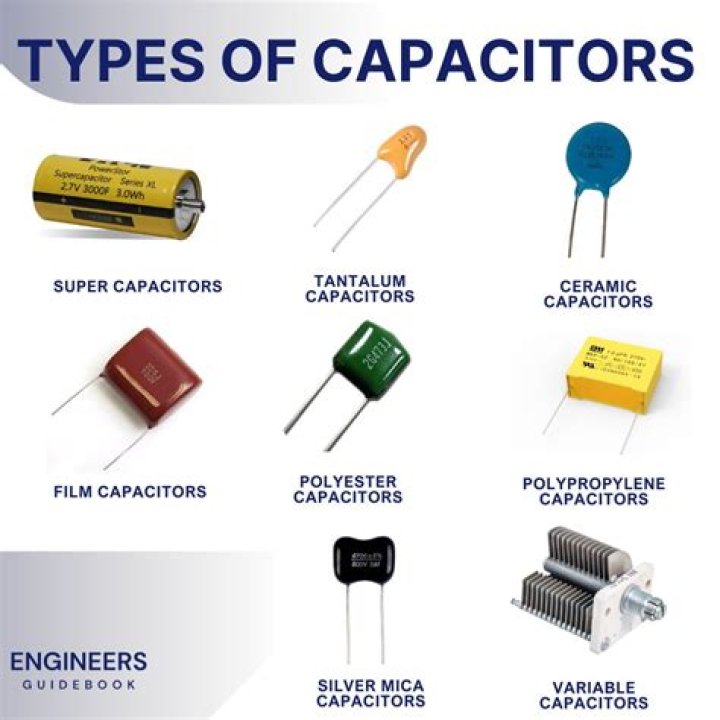

What are the different types of capacitor?

Types of Capacitors

• Ceramic Capacitors.
• Film Capacitors.
• Power Film Capacitors.
• Electrolytic Capacitors.
• Ceramic capacitors.
• Film capacitors.
• Paper capacitors.
• Electrolytic capacitors.

How many watts before you need a capacitor?

Sizing Caps

The general rule is to add 1 Farad of capacitance for every 1000 watts RMS of system power. Note that it does not hurt to use more capacitance than this rule and many systems use 2 or 3 Farads per 1000 watts RMS.

Do capacitors silver?

Ceramic Capacitors or Disc Capacitors as they are generally called, are made by coating two sides of a small porcelain or ceramic disc with silver and are then stacked together to make a capacitor.

What are blue capacitors?

The blue ones are varistors. They start to conduct at some voltage, probably about 15V, to remove high voltage spikes.

What is polyester capacitor?

Polyester film capacitors are film capacitors using a dielectric made of the thermoplastic polar polymer material polyethylene terephthalate (PET), trade names Hostaphan or Mylar, from the polyester family. They are manufactured both as metallized wound and stacked versions, as well as film/foil types.

What is an RF capacitor?

RF stands for radio Frequency. Also called Microwave. The range is 30hertz - 30 GHz. Capacitors help tune antenna. RF Capacitor is a circuit.

Which capacitor type has the highest voltage rating?

Electrolytic capacitor: This type of capacitor is the most popular leaded type for values greater than about 1 microfarad, having the one of the highest levels of capacitance for a given volume.

How do I know if a capacitor is bad?

The 7 Most Common Bad AC Capacitor Symptoms

1. AC Not Blowing Cold Air. An air conditioner that doesn't blow cold air is one of the first signs of a problem many homeowners notice. ...
2. High and Rising Energy Bills. ...
3. Humming Noise. ...
4. Old HVAC System. ...
5. AC Turns Off On Its Own. ...
6. AC Doesn't Turn On Immediately. ...
7. AC Won't Turn On.

What is capacitor percentage?

Capacitor ratings are determined by how close to the actual values they are when compared to the rated nominal capacitance. Letters and colored bands are used to indicate actual tolerance. Common tolerance levels for capacitors sit around 5% - 10%. However, some capacitors made of plastic have been rated as low as ±1%.

Can I replace a capacitor with a higher uF?

The rule of thumb is to select capacitors with voltage ratings higher than those expected in the circuit as a buffer. So, if you decide to replace a capacitor with a lower uf one, make sure that the new capacitor has the same voltage rating of the one you are replacing or is larger.

What is uF in capacitor?

uF refers to the size of the capacitor. Capacitance is the charge that is necessary to raise the potential of a body one unit. A capacitance of 1 farad (f) requires 1 coulomb of electricity to raise its potential 1 volt (v). 1 micro farad (uF) = 0.0000001 F.
